4.0 ml Screw Vials, Caps, Kits
Glass Vials 4.0 ml Screw Neck
Content: 100 pcs. / pack
 |
 |
|

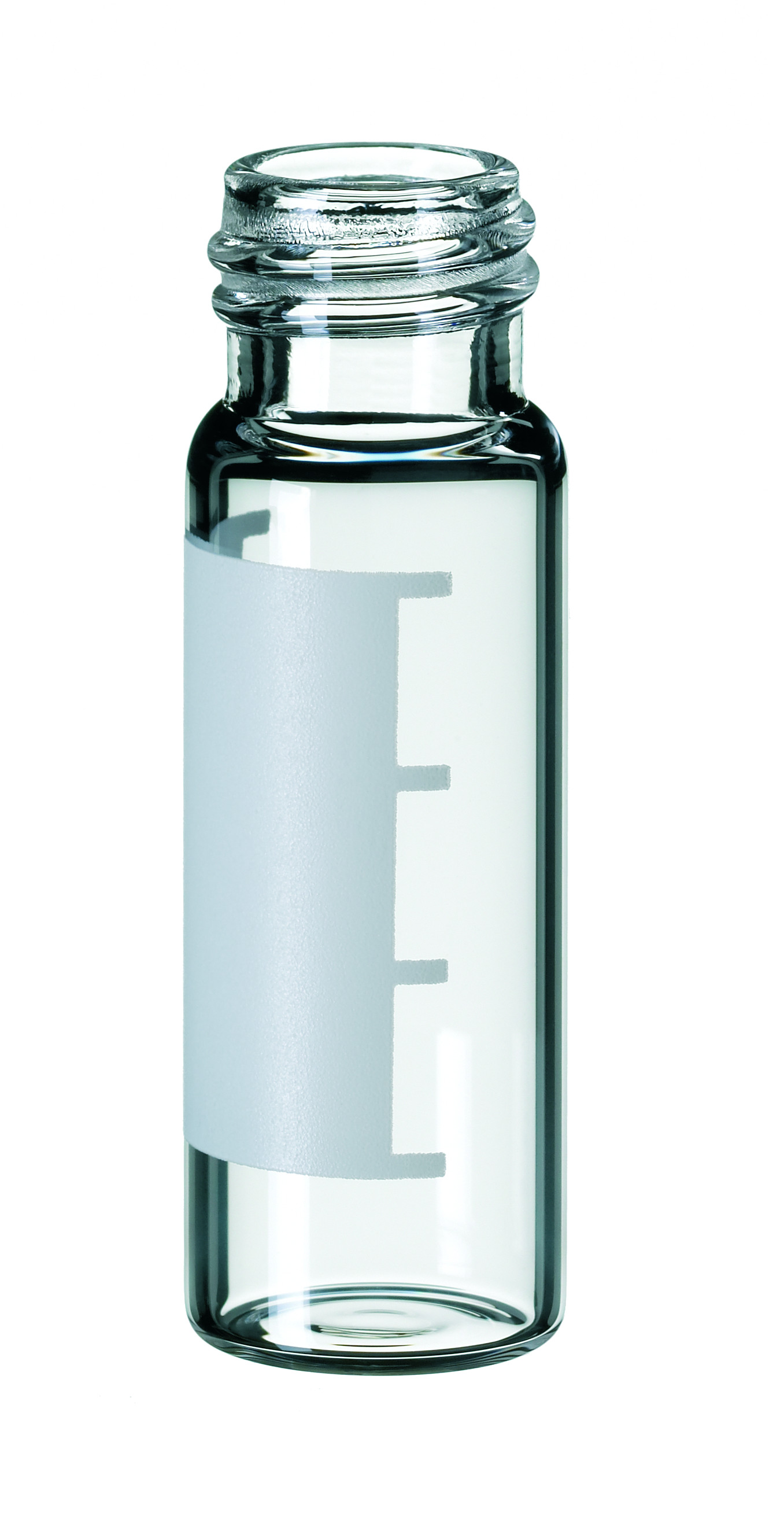

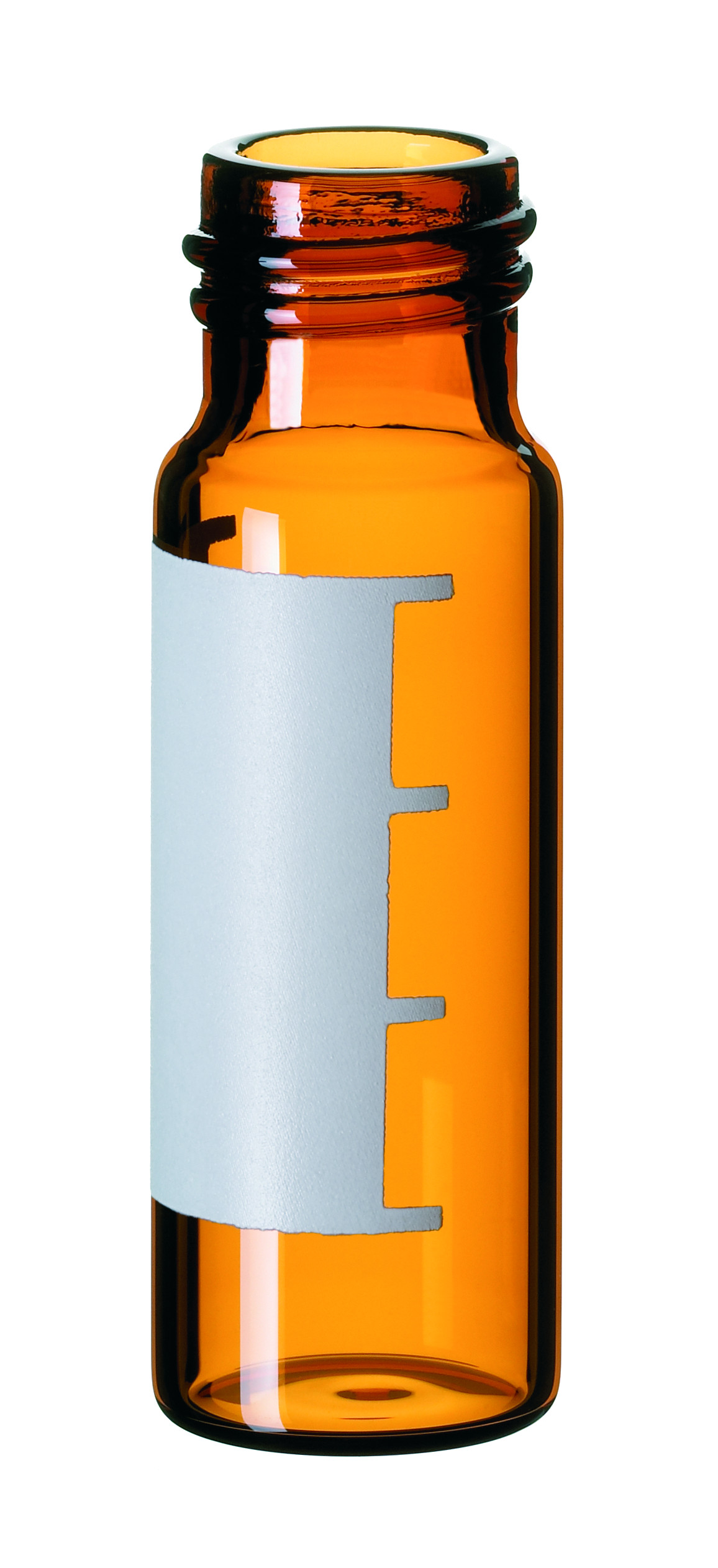

| P/N | 961-10020-04 | 961-10020-05 |
|---|---|---|
| Volumen [ml] | 4.0 | 4.0 |
| Material, color | glass, clear | glass, amber |
| Neck | screw neck | screw neck |
| Head O.D. [mm] | 13 | 13 |
| Bottom | flat | flat |
| Dimension [mm] | 45.0 x 14.7 | 45.0 x 14.7 |
| Marking | Label and filling lines | Label and filling lines |
Screw Caps for 4.0 ml Vials
Content: 100 pcs. / pack
 |
 |
 |
| 1 | 2 | 3 |
| Cap | Septum | ||||||||
| Picture | P/N | Color | Material | Hole [mm] |
Thread [mm] |
Color | Material | Thickness [mm] |
Shore A |
|---|---|---|---|---|---|---|---|---|---|

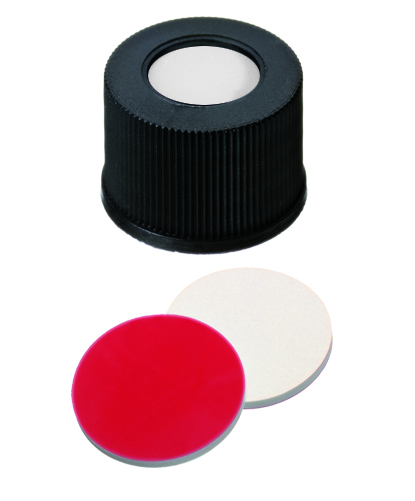

| 1 | 961-10030-01 | black | PP | 8.5 | 13 | cream/red | silicone/PTFE | 1.5 | 55° |

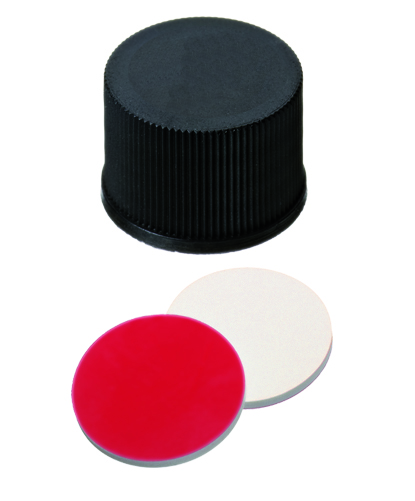

| 2 | 961-10030-02 | black | PP | ./. | 13 | cream/red | silicone/PTFE | 1.5 | 55° |

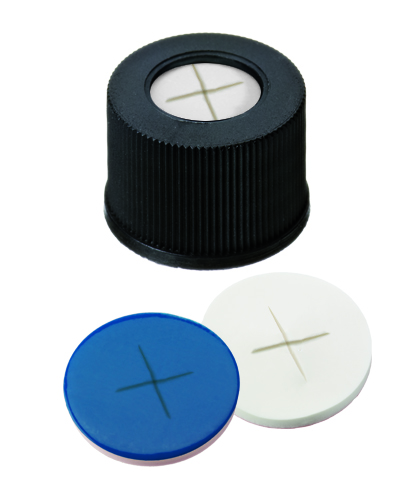

| 3 | 961-10030-07 | black | PP | 8.5 | 13 | white/blue |
silicone/PTFE
with cross-slit
|
1.5 | 55° |
Kits 4.0 ml
Content: 100 pcs. / pack
Including vials, caps and septum
| Kits P/N | Vial (vial P/N) |
Cap incl. septum (cap incl. septum P/N) |
||
|---|---|---|---|---|

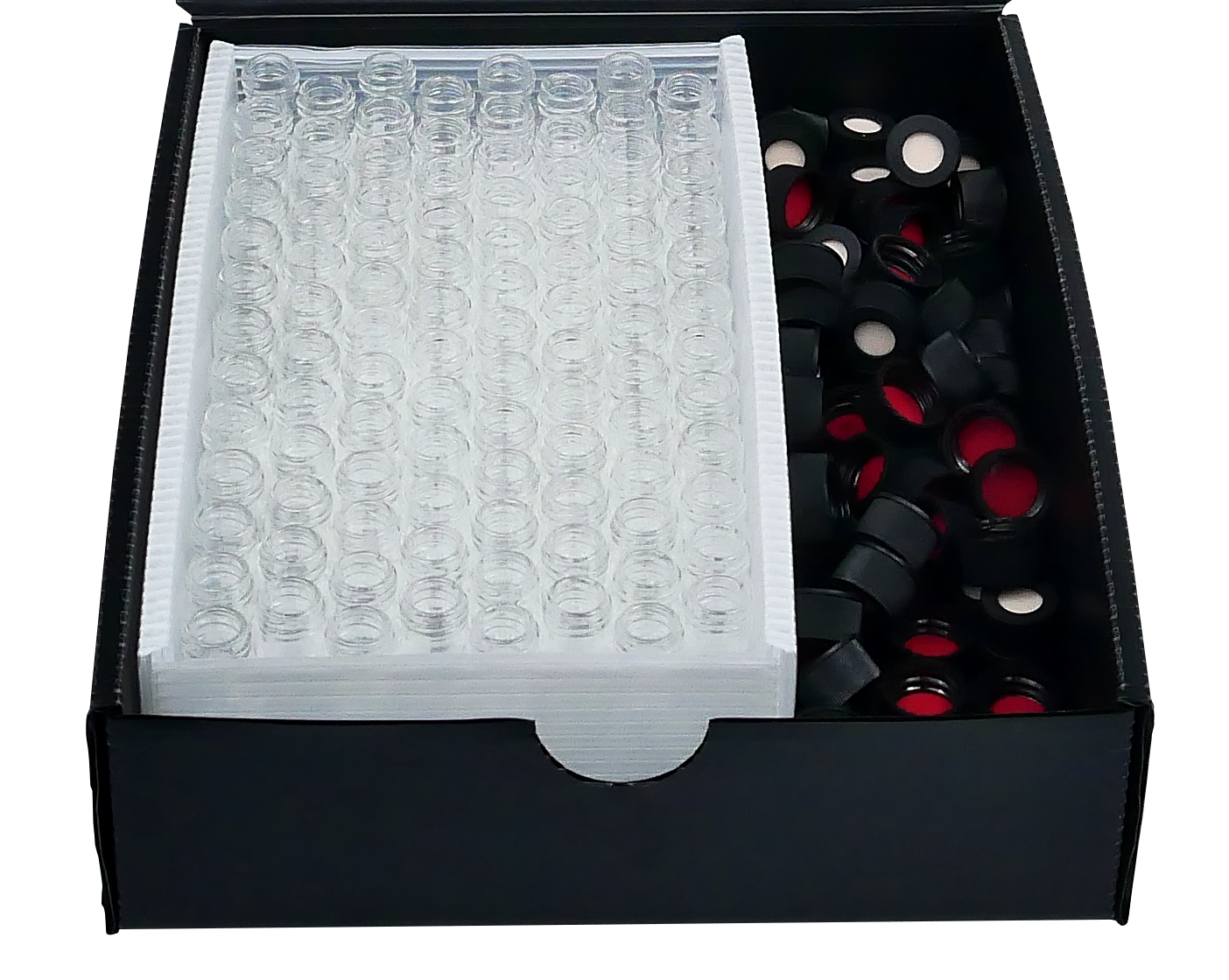

| 961-10010-05 |
4.0 ml glass, clear with label and filling lines; 13 mm screw thread; 45.0 x 14.7 mm 961-10020-04 |
|
black PP-cap 8.5 mm centre hole; silicone cream/PTFE red; 1.5 mm thick; 55° shore A 961-10030-01
|
|
| 961-10010-04 |
4.0 ml glass, amber with label and filling lines; 13 mm screw thread; 45.0 x 14.7 mm 961-10020-05
|
|
black PP-cap 8.5 mm centre hole; silicone cream/PTFE red; 1.5 mm thick; 55° shore A 961-10030-01
|
|
| 228-31537-91 |

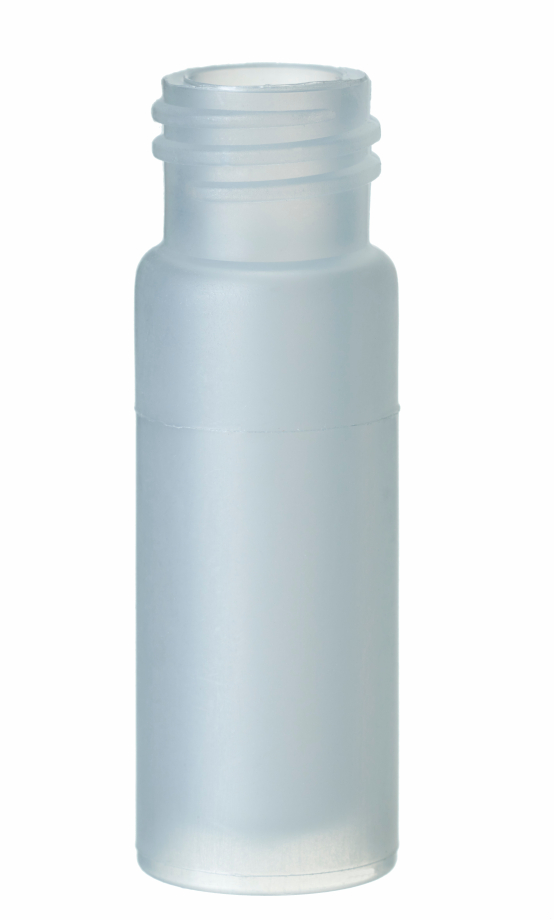

4.0 ml PP, clear; 13 mm screw thread; 45.0 x 14.7 mm
recommended e.g. for ion chromatography
|
 |

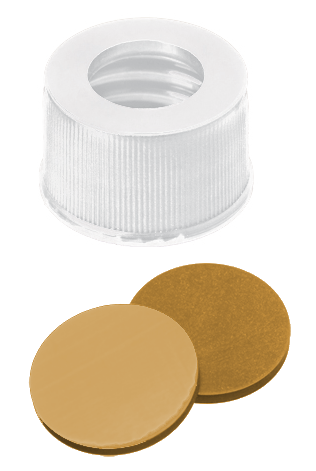

white PP-cap; centre hole; silicone transparent/rubber beige |  |

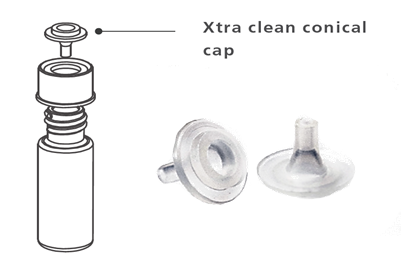

Xtra Clean Conical Cap, Long-Term Stability
- The septa-less structure ensures that the cleaning solvent is not contaminated by the septum
- Xtra clean conical caps are septa-free caps that significantly reduce solvent evaporation
Ideal for a vial cap for washing/cleaning solvents. The septa-less structure ensures that the cleaning solvent is not contaminated by the septum, making it safe to use for long-term multi sample analysis, while reducing the rate of solvent evaporation.
It can be used with any of the above mentioned screw caps after removing the septa. The caps have to be bought separately.
| P/N | Description | Content |
|---|---|---|
| 227-35600-01 | Xtra clean conical cap, 4 ml | 12 pcs. |

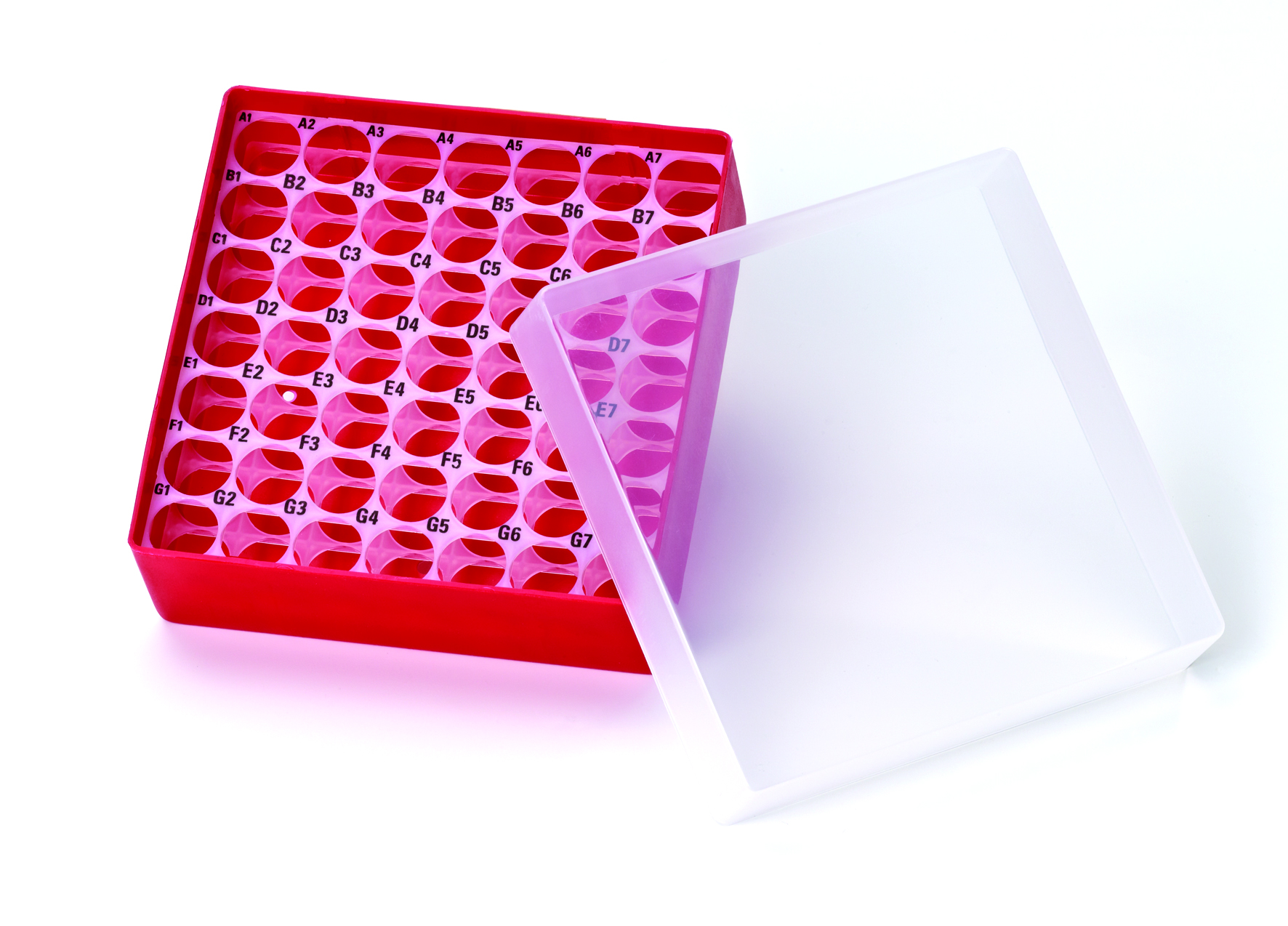

Additional Accessories
