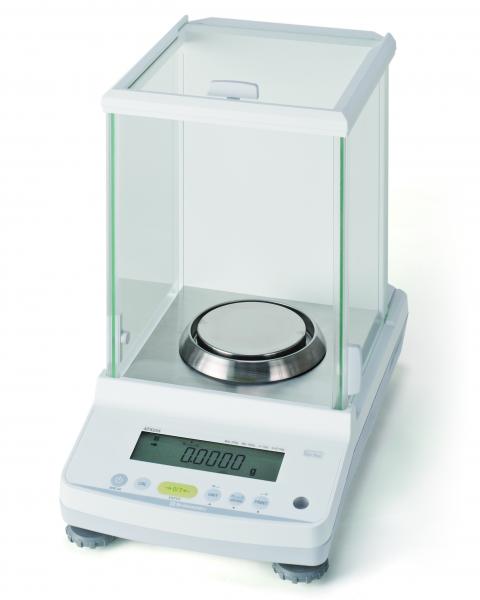

ATX/ATY Series



New standard of analytical balance



ATX/ATY series realized superior performance and budget price with Shimadzu weighing sensor UniBloc. This model achieve usability and high accuracy as analytical balance.

Touch-Key calibration (ATX series)

Automated calibration can be started by pressing keys. Also, your external calibration weights can be used for span calibration (all models)

Easy Setting best fit to weighting application

Quickly adjust the desired ration of stability and response for every application, even during measurement, with one-touch operation.





WindowsDirect communication function

Send balance data to Excel or other Windows applications without any data communication software installation required. By combining standard Auto print functions with typical spreadsheet functios, even difficult applications can be easily automated.



Very large size pan

The pan size of AT series is 91mm dia. It's the biggest one in this class and you can set large container (e.g. flask) easily.

Application support

  • Formulation mode
  • Comparator function
  • Piece counting function





Specifications

Model ATX84 ATX124 ATX224 ATY64 ATY124 ATY224
Capacity 82g 120g 220g 62g 120g 220g
Minimum Display 0.1mg
Repeatability (Standard Deviation) ≤0.1mg
Linearity  ±0.2mg
Response Time  Approx. 3.0 seconds
Operating Ambient Temperature  5-40°C 20-85%
Temperature Coefficient Sensitivity (ppm/C)  ±2ppm/°C(no condensation)
Pan Size (mm) approx.  Φ91
Main Body Dimensions (mm) approx.  213(W)×356(D)×338(H)
Weight (kg) approx.  6.2  6.0
Power requirement  12V, 1A
Internal Calibration
