Gas Filter

Impurities in gases, such as hydrocarbons, moisture and oxygen, can contaminate the gas line and instrument, cause column degradation and affect the accuracy of your analysis results, which may lead to instrument downtime. Even though high-purity gases are used, contaminants may result from pressure regulators or other parts of the gas line. Therefore, an additional gas filter is essential.



Introducing the Shimadzu Super-Clean Gas Filter!

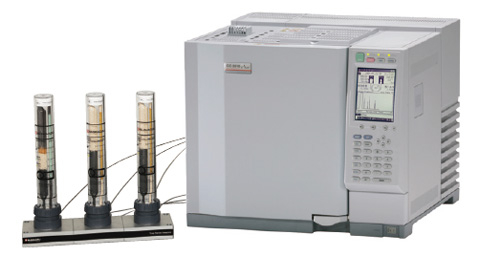

Example of Shimadzu Gas Filter Kit for GC-FID



Ensure High-purity Gas

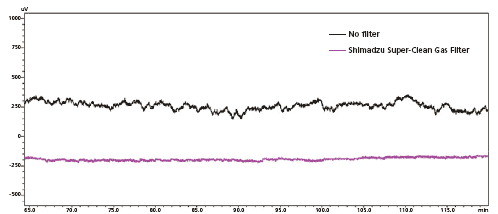

The Shimadzu Super-Clean Gas Filter can remove the impurities (hydrocarbons, moisture and oxygen) and outlet 99.9999% pure gas. The use of high-purity and contaminant-free gases reduces column degradation, prevents ghost peaks and baseline fluctuations, eliminates excessive detector noise, and keeps your instrument in good working performance.





Easy and Leak-tight Replacement



The design of the Shimadzu Super-Clean Gas Filter makes it possible to replace filter cartridges quickly and easily without any tools. Spring-loaded check valves seal when a cartridge is removed and open only when a new cartridge has been locked in place, which prevents contamination of the system during the replacement process.

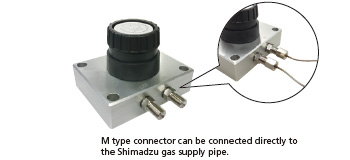

  The fittings connecting the filter and gas supply pipe are Shimadzu M type. Connecting directly to Shimadzu gas supply pipes ensures a leak-free and completely clean gas line.





Unique Body Design

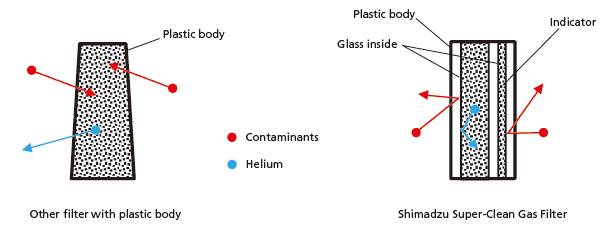

A plastic body helps with checking the indicators and replacing the filter cartridges. However, it also allows contaminants to diffuse into the instrument and cause helium to leak. To address this issue, the Shimadzu Super-Clean Gas Filter has been designed to pack the absorbents in glass inside the plastic body, thereby preventing diffusion.



Easy-to-read Indicator

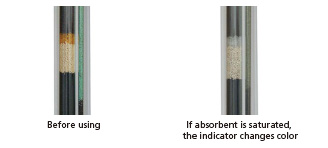

The Shimadzu Super-Clean Gas Filter is designed with an easy-to-read indicator. It changes color when the absorbent is saturated, indicating when filter cartridges should be replaced.







Product Information



Super-Clean Gas Filter Kits



P/N Description
227-37001-02 Shimadzu Carrier Gas Filter Kit
Includes one 1-position base plate with M type connectors, one Oxygen/Moisture/Hydrocarbon filter
227-37003-01 Shimadzu Gas Filter Kit for GC-FID/FPD
Includes one 3-position base plate with M type connectors, one Oxygen/Moisture/Hydrocarbon filter for Carrier gas, two Hydrocarbon/Moisture filters for H2 and Air
227-37002-01 Shimadzu Gas Filter Kit for GC-ECD
Includes one 2-position base plate with M type connectors, one Oxygen/Moisture/Hydrocarbon filter for Carrier gas, one Oxygen/Moisture filter for Nitrogen
227-37003-02 Shimadzu Gas Filter Kit for compressed air
Includes one 3-position base plate with M type connectors, one Oxygen/Moisture/Hydrocarbon filter for Carrier gas, one Hydrocarbon/Moisture filter for H2, one Hydrocarbon filter for Compressed air
227-37001-01 Shimadzu Makeup Gas Filter Kit for separate makeup gas
Includes one 1-position base plate with M type connectors, one Hydrocarbon/Moisture filter
227-37001-03 Shimadzu Carrier Gas Filter Kit for GC-MS
Includes one 1-position base plate with M type connectors, one Oxygen/Moisture/Hydrocarbon Helium-specific filter



Replacement Filter Cartridges



P/N

Description

227-37011-01

Shimadzu Gas Filter - Carrier Gas
(Oxygen/Moisture/Hydrocarbon)
pack of 1 pcs

227-37011-02

Shimadzu Gas Filter - Combi
(Hydrocarbon/Moisture)
pack of 1 pcs

227-37011-04

Shimadzu Gas Filter - Combi
(Oxygen/Moisture)
pack of 1 pcs

227-37011-03

Shimadzu Gas Filter - Single
(Hydrocarbon)
pack of 1 pcs

227-37011-05

Shimadzu Gas Filter - Carrier Gas / Helium-specific
(Oxygen/Moisture/Hydrocarbon)
pack of 1 pcs

227-37013-01

Shimadzu Gas Filter - Bundle of 3 for GC-FID/FPD Kit
Including
one Oxygen/Moisture/Hydrocarbon filter for Carrier gas,
two Hydrocarbon/Moisture filters for H2 and Air

227-37013-02

Shimadzu Gas Filter - Bundle of 3 for Compressed Air Kit
Including
one Oxygen/Moisture/Hydrocarbon filter for Carrier gas,
one Hydrocarbon/Moisture filter for H2,
one Hydrocarbon filter for Compressed air

227-37012-01

Shimadzu Gas Filter - Bundle of 2 for GC-ECD Kit
Including
one Oxygen/Moisture/Hydrocarbon filter for Carrier gas,
one Oxygen/Moisture filter for Nitrogen

For Research Use Only. Not for use in diagnostic procedures.

This page may contain references to products that are not available in your country.
Please contact us to check the availability of these products in your country.
