Headspace Crimp Vials, Caps, Kits
Glass Vials 10 ml and 20 ml Crimp Neck
Content: 100 pcs. / pack
 |
 |
|

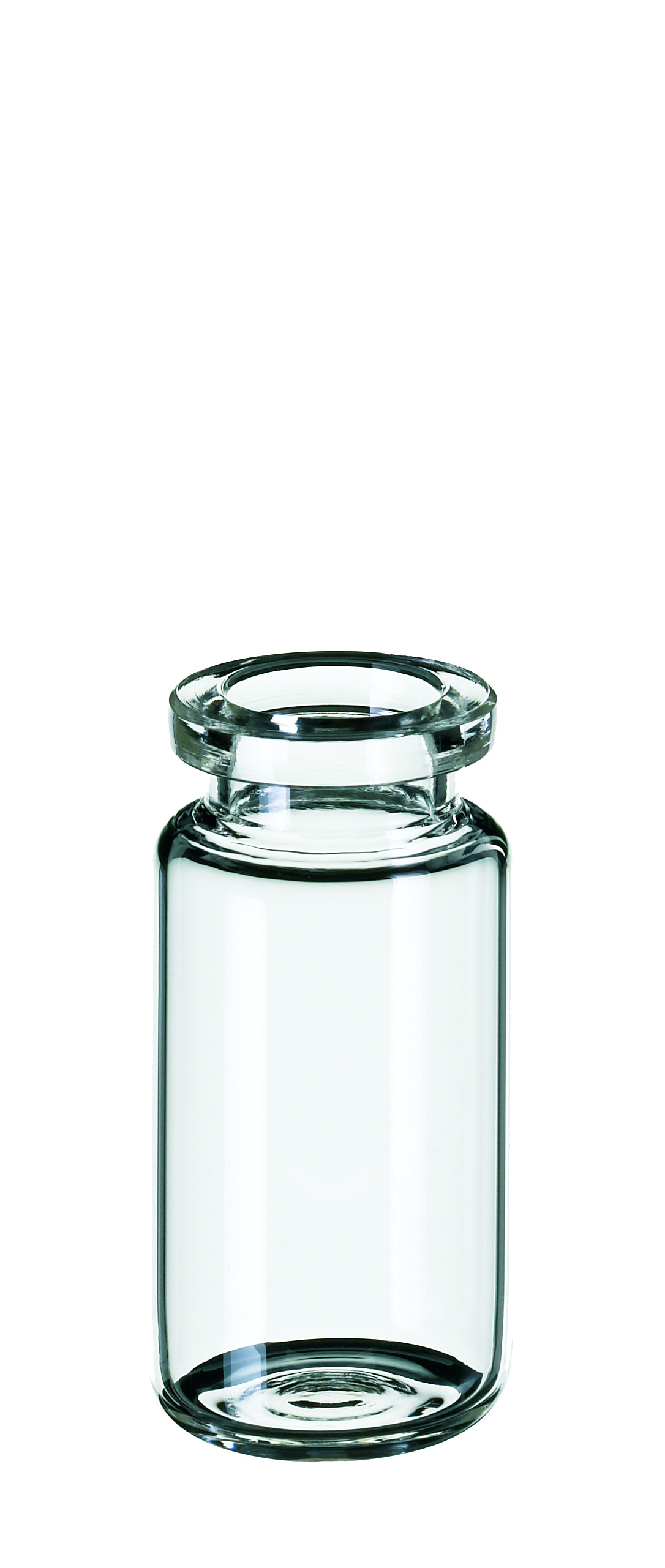

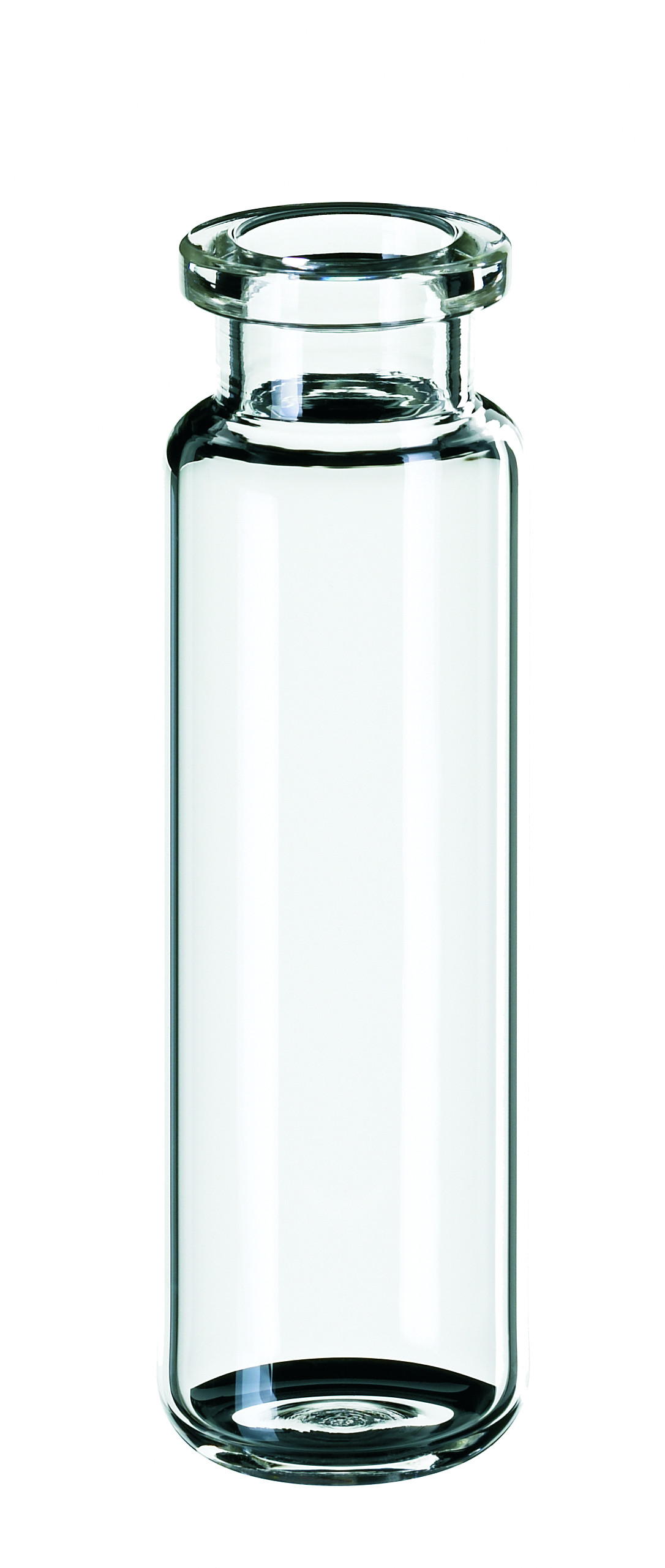

| P/N | 961-10020-10 | 961-10020-11 |
|---|---|---|
| Volumen [ml] | 10 | 20 |
| Material, color | glass, clear | glass, clear |
| Neck | crimp | crimp |
| Head O.D. [mm] | 20 | 20 |
| Bottom | round | round |
| Dimension [mm] | 46.0 x 22.5 | 75.5 x 22.5 |
Headspace Crimp Caps
Content: 100 pcs. / pack
 |
 |
 |
 |
 |
 |
 |
 |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| Cap | Septum | ||||||||
| Picture | P/N | Color | Material | Hole [mm] |
Thread [mm] |
Color | Material | Thickness [mm] |
Shore A |
|---|---|---|---|---|---|---|---|---|---|

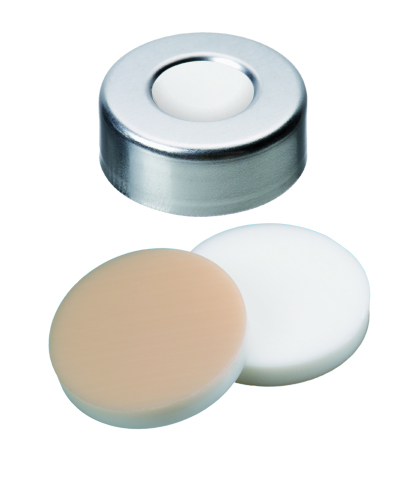

| 1 | 961-10030-04 | silver | aluminium, plain | 10 | 20 | white/beige |
silicone/PTFE
UltraClean
|
3.2 | 45° |

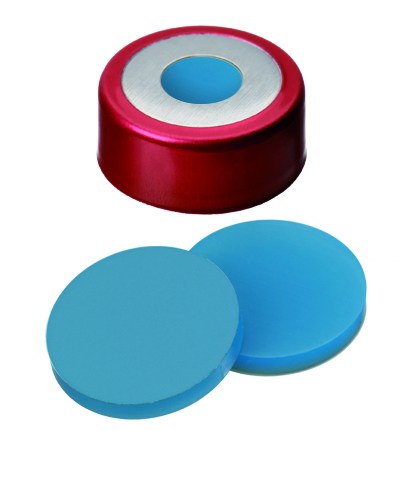

| 2 | 961-10030-08 | silver/red | Bi-metal, magnetic | 8 | 20 | blue transparent/transparent | silicone/PTFE UltraClean |
3.0 | 45° |

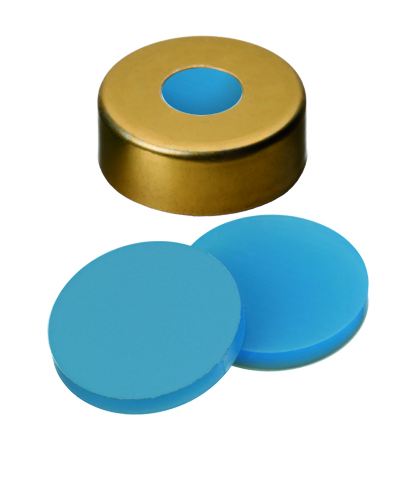

| 3 | 961-10030-15 | gold | magnetic | 8 | 20 | blue transparent/transparent | silicone/PTFE UltraClean |
3.0 | 45° |

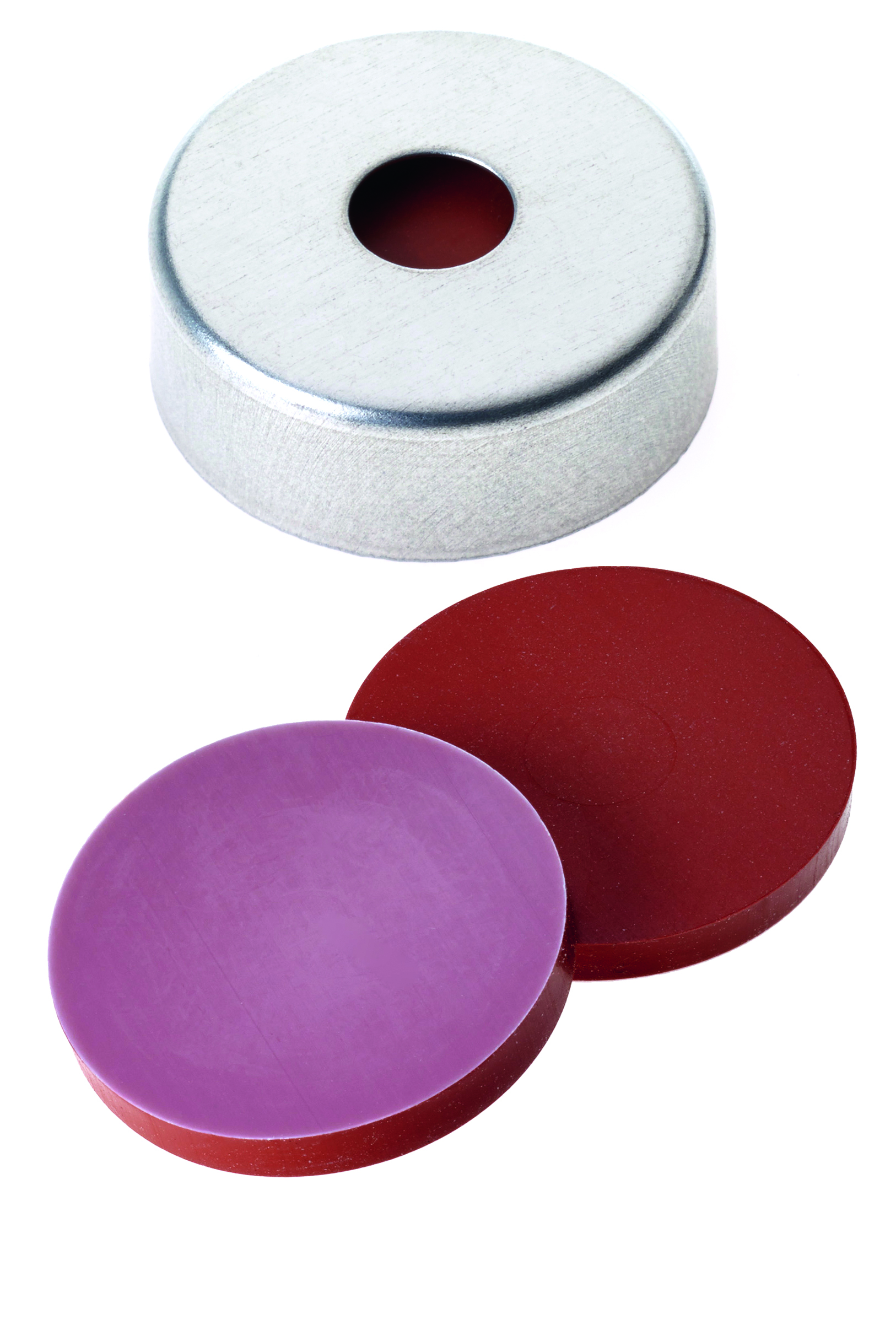

| 4 | 961-10030-16 | silver | steel | 5 | 20 | dark red/transparent |
ultra high temperature
silicone/PTFE
UltraClean |
3.0 | 45° |

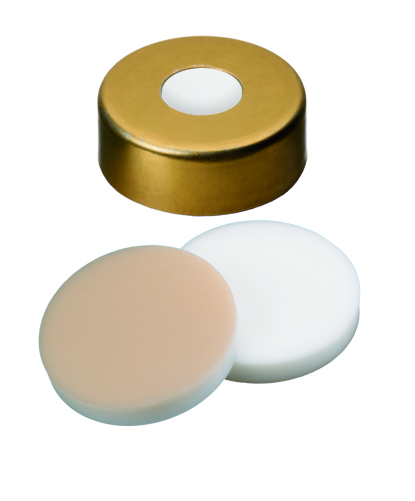

| 5 | 961-10030-17 | gold | magnetic | 8 | 20 | white/beige | silicone/PTFE | 3.2 | 45° |

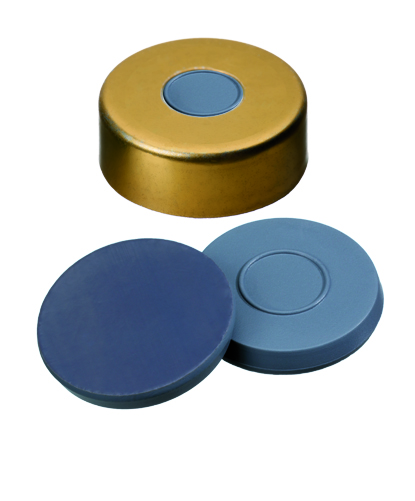

| 6 | 961-10030-21 | gold | magnetic | 8 | 20 | grey/grey | bromo-butyl/PTFE | 3.0 | 50° |

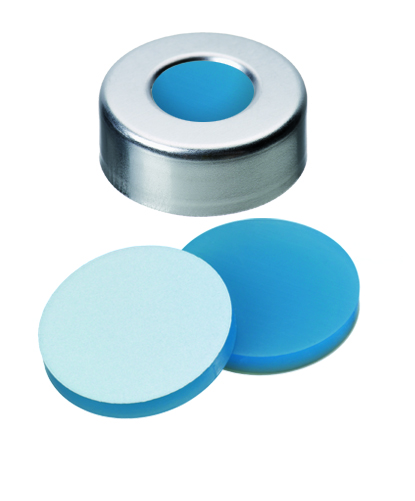

| 7 | 961-10030-22 | silver | aluminium, plain | 10 | 20 | blue transparent/white | silicone/PTFE UltraClean |
3.0 | 45° |

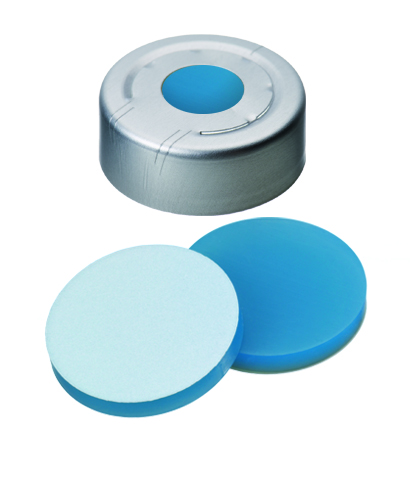

| 8 | 961-10030-32 | silver | aluminium, with pressure release |
8 | 20 | blue transparent/white | silicone/PTFE UltraClean |
3.0 | 45° |
Kits 20 ml
Content: 100 pcs. / pack
Including vials, caps and septum
| Kits P/N | Vial (Vial P/N) |
Cap incl. Septum (Cap incl. Septum P/N) |
||
|---|---|---|---|---|

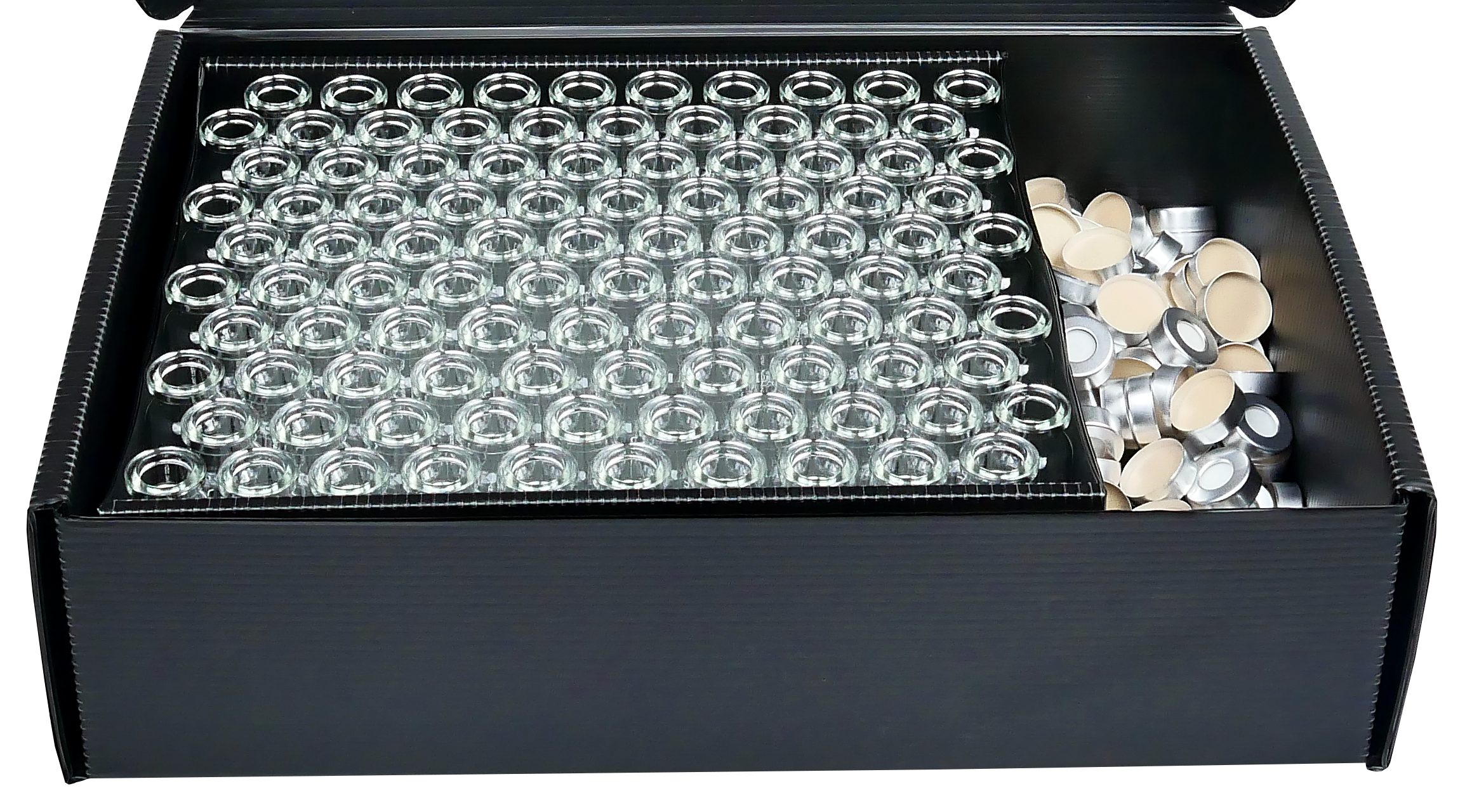

| 961-10010-12 |
20 ml glass, clear; 20 mm crimp neck; round bottom; 75.5 x 22.5 mm 961-10020-11 |
|
alu cap 10 mm centre hole; silicone white/PTFE beige; 3.2 mm thick; 45° shore A 961-10030-04 |
|
| 961-10010-29 |
plain aluminium cap 10 mm centre hole; silicone blue transparent/ PTFE white; UltraClean; 3.0 mm thick; 45° shore A 961-10030-22 |
|
||
| 961-10010-31 |
magnetic bi-metal cap 8 mm centre hole; silicone blue /PTFE transparent; UltraClean; 3.0 mm thick; 45° shore A 961-10030-08 |
|
||
Kits 10 ml
Content: 100 pcs. / pack
Including vials, caps and septum
| Kits P/N | Vial (Vial P/N) |
Cap incl. Septum (Cap incl. Septum P/N) |
||
|---|---|---|---|---|

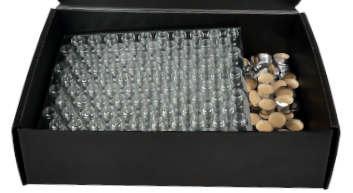

| 961-10010-11 |
10 ml glass, clear; 20 mm crimp neck; round bottom; 46.0 x 22.5 mm 961-10020-10 |
|
alu cap 10 mm centre hole; silicone white/PTFE beige; 3.2 mm thick; 45° shore A 961-10030-04 |
|
| 961-10010-28 |
plain aluminium cap 10 mm centre hole; silicone blue transparent/ PTFE white; UltraClean; 3.0 mm thick; 45° shore A 961-10030-22 |
|
||
| 961-10010-30 |
magnetic bi-metal cap 8 mm centre hole; silicone blue /PTFE transparent; UltraClean; 3.0 mm thick; 45° shore A 961-10030-08 |
|
||
