A true multi‒user high‒performance MALDI-TOF Mass Spectrometer

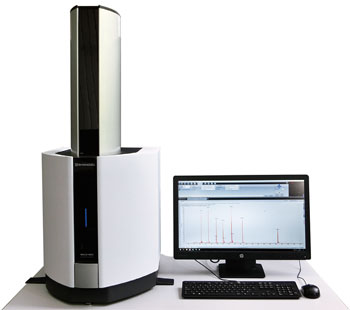

The MALDI‒8020 is the latest in a long line of MALDI‒TOF products from Shimadzu. This benchtop, linear MALDI‒TOF mass spectrometer delivers outstanding performance in a compact footprint, making it an ideal choice for today’s increasingly demanding laboratories.

  • Linear mode (positive ion) MALDI‒TOF
  • 200 Hz solid‒state laser, 355 nm
  • Load‒lock chamber for fast sample introduction
  • UV laser‒based source cleaning (patented)
  • Small footprint/benchtop design
  • Quiet operation (<55 dB)



Linear mode instruments have traditionally been the instruments of choice in MALDI‒TOF‒based quality control (QC) and profiling workflows, and the MALDI‒ 8020 is no exception. Peptides, proteins, polymers or oligonucleotides ‒ the instrument is capable of delivering the performance required for QC applications. Research laboratories will also benefit from the MS capabilities of the instrument through the rapid mass‒measurement of samples.
