MALDI-8030 - Specs

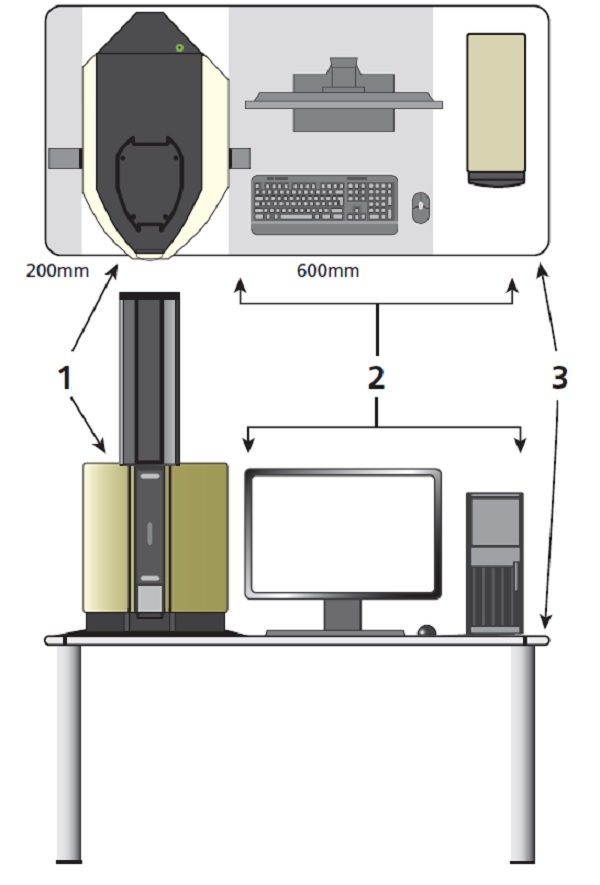

Installation Example
| No. | Description | Dimensions (mm) | Weight (kg) | ||
|---|---|---|---|---|---|
| W | D | H | |||
| 1 | MALDI-8030 | 600 | 745 | 1055 | 92 |
| 2 | Control PC, monitor, keyboard and mouse (reference) |
850 approx. |
550 approx. |
500 approx |
10 approx. |
| 3 | Table (reference) | 1500 | 750 | 750 | |
Specifications
| Mass range | m/z 1 - 500,000 |
|---|---|
| Mass resolution | >5000 FWHM – ACTH 18-39 (m/z 2465) |
| Mass accuracy | <20 ppm with internal calibration <150 ppm with external calibration* * Nearest neighbour external calibration on FlexiMass-SR48 target, within 30 minutes |
| Sensitivity | 250 fmol – bovine serum albumin (loaded) 250 amol – Glu-1-Fibrinopeptide B (loaded) |
| Size and weight | 450 x 745 x 1055 mm [Including Stabilizer: 600 x 745 x 1055 mm] 92 kg |
All performance data are acquired using standard test samples on a FlexiMass-SR48 stainless steel target.
