MSW² Type Udck
Not for use in diagnostic procedures for human. For research use only animal.
Introduction of a quantitative microsampling device
Microsampling Wing × Microsampling Windmill
The MSW2 series offer tools for easily fractionating a predetermined amount of plasma from a small amount of blood, for nonclinical animal experiments.
The MSW2 is designed based on the principles of the 3Rs (Replacement, Reduction and Refinement) to minimize the burden to animals.
Also, since the entire process, from sampling to fractionation of a predetermined amount of plasma, can be completed with devices only, so human errors are minimized.

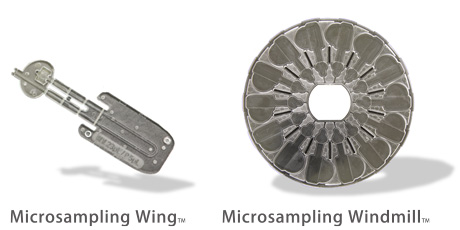

The MSW2 consists of the Microsampling Wing blood sampling device, and the Microsampling Windmill, a specialized holder that allows for efficient use of the Microsampling Wing.

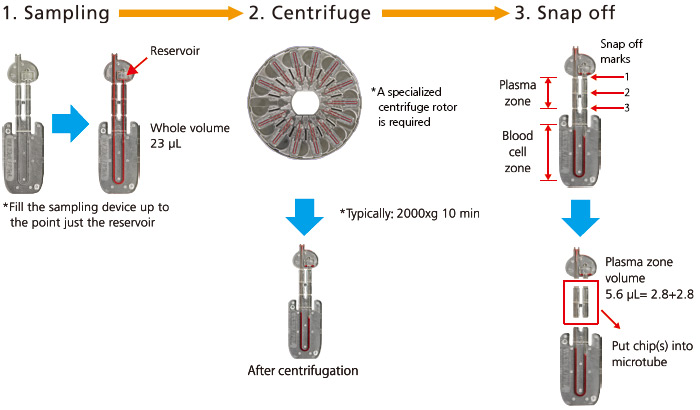

- Easy microsampling
Procedures from sampling to quantitative fractionation are possible without any high-level training.
- Reduce microsampling process
Since Microsampling Wing has a high solvent resistance, re-measurement is not required before
deproteination and other processes subsequent to quantitative fractionation.
- Enhanced productivity
A Microsampling Windmill simultaneously centrifuges and puts up to 14 Microsampling Wings.

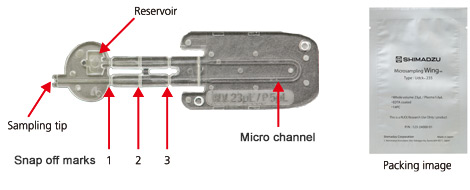

■ Microsampling Wing
- Sampling by capillary force
- EDTA-2Na coated
- No necessary seal during centrifugation

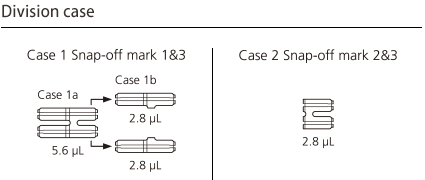

- Chip(s) which has extact volume can be snapped off with fingertips

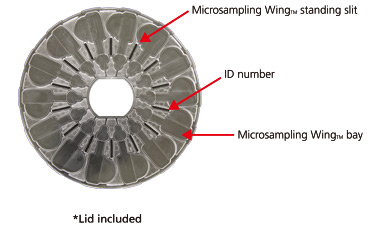

■ Microsampling Windmill / Centrifuge Tube
- Holds up to 14 Microsampling Wings at a time
- The Microsampling Windmill with the microsampling Wings can be centrifuged* and stored
- Can be stacked
- Alternatively centrifuge tubes for single sample preperation
|Whole volume||23 μL|
|Plasma zone volume
*Only for reference and not guaranteed
|5.6 μL（2.8 μL+2.8 μL)|
|Size||45 mm×13 mm×2 mm|
|Method of storage||Room temperature, keep away from direct sunlight. The expiration date of Microsampling Wing is indicated on the package. Not sterilized|
|The number of devices||14 pcs (maximum loading No.)|
|Size||φ150 mm×6 mm|
・Can be stacked
|Method of storage||Room temperature, keep away
from direct sunlight
|Name||Tube for Centrifugation|
|U815-1001||The sampling precision||This report shows that the sampling precise by determinating the concentration of a chemical compound spiked in plasma.||Download (280 KB)|
