Comprehensive 2D-LC methodology is a paradigm shift in liquid chromatography separation. By combining two independent separation modes orthogonally in combination with a dual-loop/dual-valve alternate switching design, the highest possible peak capacity is achieved.
The new Nexera-e is the ideal solution for the separation and characterization of most challenging and complex samples. It is particularly useful for the analysis of pharmaceutical impurities, proteolytic digests, food extracts, natural products and synthetic polymers.

Improved resolving power compared to conventional 1D-LC

How many peaks are co-eluted under one peak? The more complex the sample, along with a high percentage of similar compounds, there exists a high probability of co-eluting compounds found under single peaks.

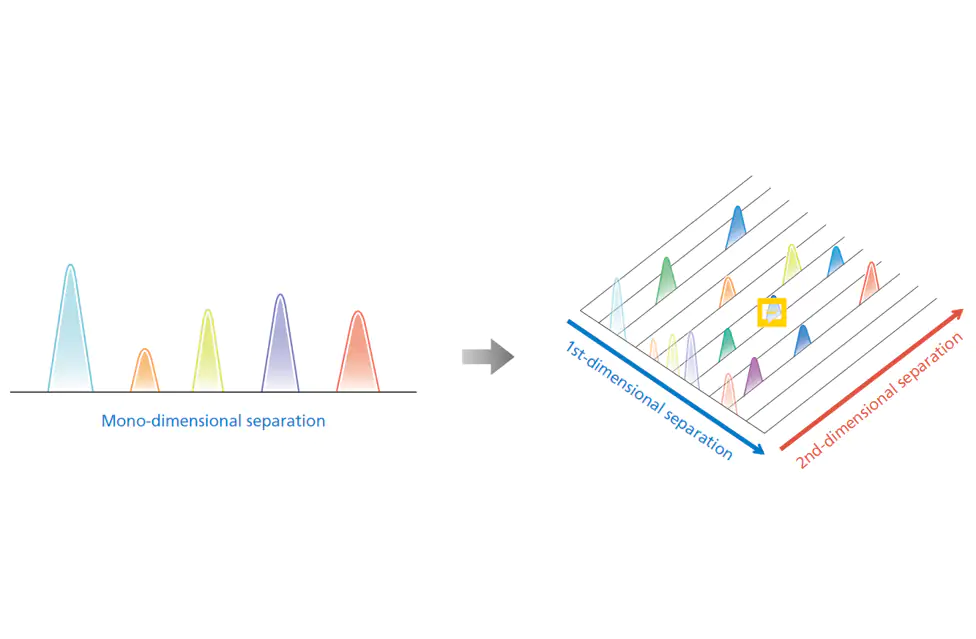

Even though the co-eluting compounds may not be separated by mono-dimensional separation, an orthogonal two-dimensional system will provide the best possible result.

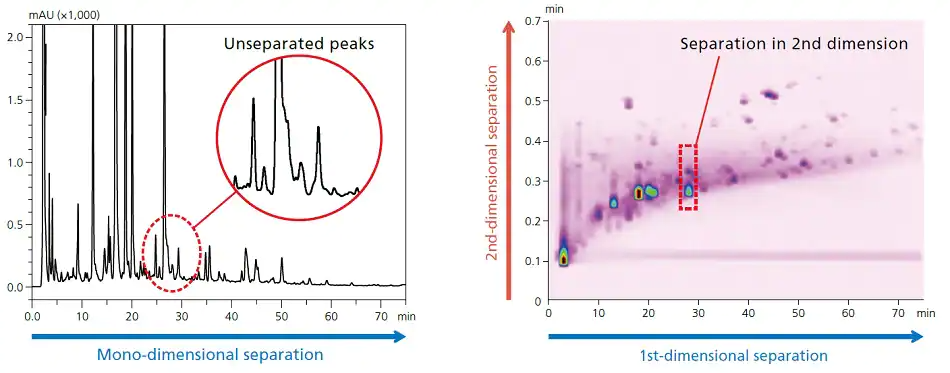

Comparison of chromatograms (traditional Chinese medicine)
