Py-Screener

Making the Difficult Simple


The Py-Screener system is designed to screen for phthalate esters in polymers. The use of phthalate esters in toys and food packaging is currently restricted.
Moving forward, they are expected to be regulated as restricted substances under the Directive on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS (II) Directive) in Europe.
The pyrolyzer GC/MS (Py-GC/MS) is used to selectively detect and quantify phthalate esters thermally extracted from samples. This screening system consists of a sampling toolkit, special standards, and special software and can be easily operated even by novices.





Future



Easy to Operate Even for Novices


Organics Solvents Are Not Required for Sample Preparation.


Analytical standards and test samples can be prepared without using organic solvents. To prepare a sample, just use the cutter to remove a portion from the test material, place it in the sample cup, and weigh it. Sample preparation videos provide support so that even novices can easily prepare samples.

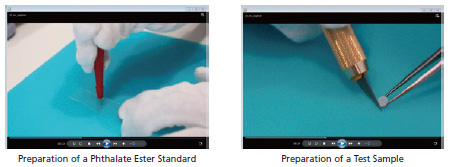

Sample Preparation Videos



Sample Preparation Video


The sample preparation videos can be viewed on the smart devices by accessing here. The user name and password attached to the product is necessary to access this link. (Sample Preparation Videos)


Easy to Operate Using Special Software


Using customized software, operations are easy, even for novices. To automatically start continuous analyses, just place the prepared standards and test samples in the autosampler, and enter the number of samples, the sample names, and their weights. Continuous measurements can be performed overnight, so approximately 30 samples can be measured per day.




Py-Screener Software

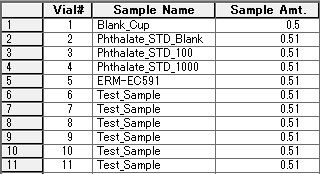

Display of measurement schedule

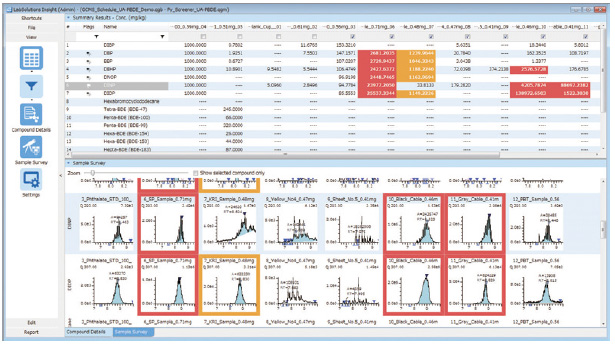

Tabular Display of Concentrations and Criteria Clarifies the Results.


The concentrations of target components detected in continuous measurements are displayed in a table and color-coded using criteria based on concentration ranges. The results for continuously measured test samples can be checked at a glance. Also, the system is equipped with accuracy control functions in order to ensure the reliability of blank concentrations, instrument sensitivity, and other data, so even novices can feel confident that they are reporting reliable measurement results.





All Required Items Are Available.


The analytical standards for this system were developed in cooperation with SGS Japan, the market leader for RoHS tests. Standards for sensitivity confirmation, quantitation, and blank tests can be prepared simply by punching out a portion of a standard material using the micro puncher. A toolkit used for preparing samples has been created with Frontier Laboratories Ltd.




Standards Containing Phthalate Esters for Py-GC/MS

Sampling Toolkit



Ample Maintenance Support


Using the Maintenance Navigator, the procedures appropriate for pyrolyzer and GC/MS maintenance can be performed easily and confidently. Procedures for locating and resolving leaks are included, and kits with common replacement parts simplify maintenance and troubleshooting procedures.

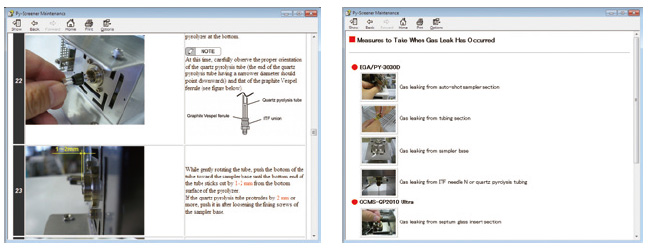

Maintenance Navigator Windows





Software



This product consists of a special software, method files for Py and GC/MS, schedule files (batch files), report formats, and flag file for LabSolutions Insight.



Compound Name Type
DIBP Phthalate esters
DBP
BBP
DEHP
DNOP
DINP
DIDP
Hexabromocyclododecane Brominated flame retardants
Tetra-BDE (BDE-47)
Penta-BDE (BDE-100)
Penta-BDE (BDE-99)
Hexa-BDE (BDE-154)
Hexa-BDE (BDE-153)
Hepta-BDE (BDE-183)
Octa-BDE (BDE-197+204)
Nona-BDE
Deca-BDE (BDE-209)
Deca-BB (BB-209)



Applicable Models

GC/MS GCMS-QP2010 Ultra
Pyrolyzer EGA-PY3030D + AS-1020E
GCMS workstation GCMSsolution Ver. 4.3 or later + LabSolutions Insight
Py workstation EGA_PY3030D Ver. 1.54 or later



  1. Note that there are no guarantees regarding the accuracy of the information contained in the method files, or the usefulness of the information obtained from the results of their use.
  2. In order to accurately identify the registered substances, perform the measurements using the system conditions in the method files contained in the product.





For Research Use Only. Not for use in diagnostic procedures.
