Syringes

Syringe Selection Guide



If a syringe is being used by hand, a manual syringe should be selected. If a syringe is installed in an AOC autosampler, then choose the appropriate syringe and volume to suit your instrument and application.



Syringe Style

Fixed Needle


  • Better option for experienced users or for applications requiring trace sample levels
  • Recommended for use with an autosampler because the probability of needle bending is minimal
  • Minimal sample carryover

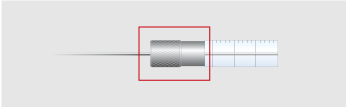

Removable Needle


  • Better option for inexperienced users
  • Reduce cost if used in precipitation of salts or in situations in which it may bend easily (such as thick septum)
  • Available for many methods by changing needles

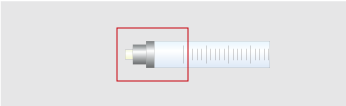

Gas Tight


  • For Luer Lock needles and fittings Specifically designed to install and secure
  • Luer Lock needles easily



Needle Tip Styles

Cone: Autosampler


The cone-shaped needle tip is specially developed to withstand multi injection demands and improve septum lifetime when used with an autosampler. The cone design effectively "parts" the septum during piercing instead of cutting it, as would a bevel needle.

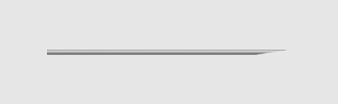

Bevel: Manual Injection


The standard general-purpose needle tip style supplied with many syringes is a 20 ° bevel tip. It is the preferred option for manual injection when piercing the septum in exactly the same place is difficult. The bevel tip is designed for optimum septum penetration and prevention of septum coring.

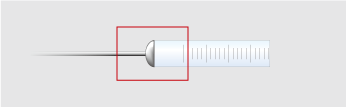

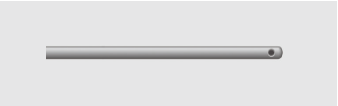

Side Hole Dome


Samples are filled and dispensed through the side hole, eliminating septum plugging of the needle. Ideal for large-volume gas injections. The solid domed tip minimizes septum damage.



Plunger Style

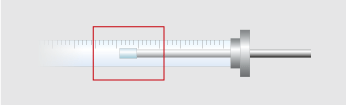

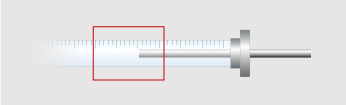

PTFE Tipped Plunger


  • PTFE Tip enables gastight analysis
  • Suitable for both liquid and gas samples
  • Ideal for analysis of highly viscous liquid because it reduces the possibility of the plunger sticking due to micro particles (samples should have no effects with PTFE)
  • Plunger is replaceable



Syringe for AOC



Syringe for AOC-20i/20s


Syringe
Volume
PTFE Tipped
Plunger
Needle Length
(mm)
Needle Gauge Needle OD
(mm)
Needle Tip P/N Replacement Plunger
P/N
Replacement Needle
P/N
5 μL - 42 23 0.63 Cone 221-75173 - -
10 μL 42 23 0.63 Cone 221-74469 - -
10 μL - 42 23 0.63 Cone 221-34618 - -
10 μL 42 23 0.63 Cone 221-75174 221-75174-02 221-75174-01
50 μL - 42 23 0.63 Cone 221-45243 - -
250 μL 42 23 0.63 Cone 221-45244 221-45244-01 -



Description P/N Syringe Volume
Syringe for OCI 221-37282-02 10 μL
Elastic Syringe for AOC * 221-49548 10 μL

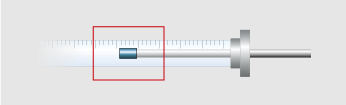

* Plunger is made of titanium. It has less wear debris compared to metal, making it less hard and ideal for hydrous sample.



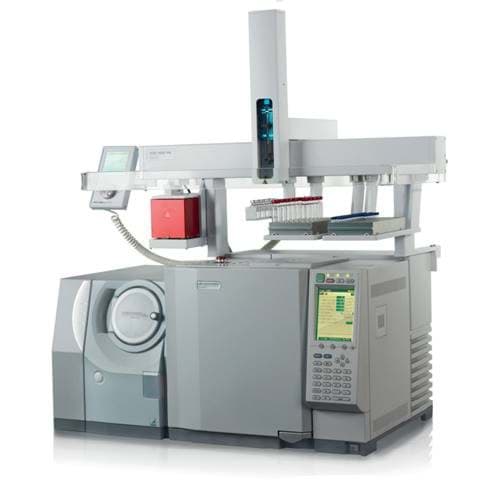

Syringe for AOC-5000 Plus


Syringe
Volume
PTFE Tipped
Plunger
Needle Length
(mm)
Needle Gauge Needle OD
(mm)
Needle Tip P/N
10 μL - 50 26 0.47 Cone 221-75175
10 μL - 50 23 0.63 Cone 221-75175-01
10 μL - 80 26 0.47 Cone 221-75176
10 μL - 80 23 0.63 Cone 221-75176-01
10 μL 50 26 0.47 Cone 221-75175-02
10 μL 50 23 0.63 Cone 221-75175-03
25 μL 50 23 0.63 Cone 221-75177
1 mL 50 26 0.47 Side Hole Dome 221-75178
1 mL 50 23 0.63 Side Hole Dome 221-75178-01
2.5 mL 50 26 0.47 Side Hole Dome 221-75179
2.5 mL 50 23 0.63 Side Hole Dome 221-75179-01



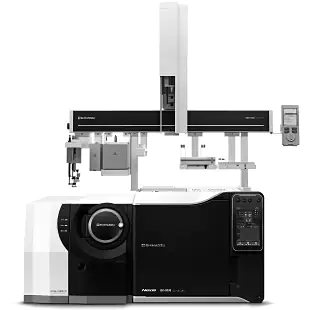

Syringe for AOC-6000


Syringe
Volume
PTFE Tipped
Plunger
Needle Length
(mm)
Needle Gauge Needle OD
(mm)
Needle Tip P/N
1 μL - 57 23 0.63 Cone 225-19744-01
5 μL - 57 26 0.47 Cone 225-19744-02
10 μL - 57 26 0.47 Cone 225-19744-03
10 μL 57 26 0.47 Cone 225-19744-04
25 μL 57 26 0.47 Cone 225-19744-05
50 μL 57 26 0.47 Cone 225-19744-06
100 μL 57 26 0.47 Cone 225-19744-07
250 μL 57 26 0.47 Cone 225-19744-08
500 μ 57 26 0.47 Cone 225-19744-09
1 mL 57 23 0.63 Side Hole Dome 225-19744-10
2.5 mL 65 23 0.63 Side Hole Dome 225-19744-11



Manual Syringe



Shimadzu manual syringes are available from 5 μL to 500 μL, and can be widely used in your laboratory work.

Fixed Needle Style


Syringe Volume PTFE Tipped Plunger Needle Length(mm) Needle Gauge Needle OD
(mm)
Needle Tip P/N Replacement Plunger
P/N Qty
5 μL - 50 26 0.47 Bevel 221-75170 - -
10 μL - 50 26 0.47 Bevel 670-12552-01 - -
10 μL 50 26 0.47 Bevel 221-75170-01 221-75170-02 2
25 μL - 50 25 0.5 Bevel 670-12510-31 - -
25 μL 50 25 0.5 Bevel 221-75171 221-75171-01 1
50 μL - 50 25 0.5 Bevel 670-12510-36 - -
50 μL 50 25 0.5 Bevel 221-75172 221-75172-03 1
100 μL - 50 25 0.5 Bevel 670-12510-18 - -
100 μL 50 25 0.5 Bevel 221-75172-01 221-75172-04 1
250 μL - 50 25 0.5 Bevel 670-12510-19 - -
250 μL 50 25 0.5 Bevel 221-75172-02 221-75172-05 1
500 μL - 50 25 0.5 Bevel 670-12510-20 - -





Removable Needle Style


Syringe Volume PTFE Tipped Plunger Needle Length(mm) Needle Gauge Needle OD
(mm)
Needle Tip P/N Replacement Plunger
P/N
Replacement Needle
P/N
10 μL 50 26 0.47 Bevel 670-12553-21 670-12553-33 670-12510-95
25 μL - 50 25 0.5 Bevel 670-12510-74 - 670-12510-96
50 μL - 50 25 0.5 Bevel 670-12510-75 -
100 μL - 50 25 0.5 Bevel 670-12510-76 -
250 μL - 50 25 0.5 Bevel 670-12510-77 -
500 μL - 50 25 0.5 Bevel 670-12510-78 -



Syringe for Gas Analysis



Luer Lock Needle Style


Syringe Volume PTFE Tipped
Plunger
P/N Replacement Plunger
P/N
1 mL 221-54778-01 221-54778-11
5 mL 221-54778-02 221-54778-12
10 mL 221-54778-03 221-54778-13
25 mL 221-54778-04 221-54778-14
50 mL 221-54778-05 221-54778-15
100 mL 221-54778-06 221-54778-16



Luer Lock Needle


Needle Length(mm) Needle Gauge Needle OD(mm) Needle Tip Qty P/N
50 23 0.63 Bevel 5 221-54778-51
50 19 1.07 Bevel 5 221-54778-52
50 14 2.1 Bevel 5 221-54778-54



Syringe Valve


Diag. # Syringe Volume Description Qty P/N
5 mL to 2 L Push Button Valve for Luer Lock Needle 1 221-54778-49
50 μL to 2 L Push Button Valve for Luer Lock Needle and Tip Syringe 1 221-54778-50






Removable Needle Style



Gastight syringes with a capacity of milliliter quantity level. The needle is 30mm long and is of a screw-in type, which ensures an easy exchange.

Description P/N Syringe Volume Replacement Needle
P/N
MS-GAN025 670-12504-28 0.25 mL 670-12504-85
(5 pcs)
MS-GAN050 670-12504-29 0.5 mL
MS-GAN100 670-12504-30 1 mL
MS-GAN250 670-12504-31 2.5 mL
MS-GAN500 670-12504-32 5 mL
MS-GANX00 670-12504-33 10 mL






Autosampler AOC-20i Syringes



Microsyringes for AOC-20i and AOC-20i+s

Part number Description PCS Details
221-34621SG 0,5µl Micro syringe with removable needle 23gauge 1 Details
980-04753 0,5µl Micro syringe with removable needle for on column injections, 23gauge reduced to 26gauge 1 Details



Replacement Needles for Syringes

Part number Description PCS Details
221-34622SG Replacement needle 0.5µl syringe, 23 gauge, for micro syringe 221-34621SG 1 Details
980-06152 Replacement needle 0.5µl syringe, 23 gauge reduced to 26 gauge, for micro syringe 980-04398 1 Details





Autosampler AOC-5000 and AOC-5000 Plus syringes for liquid injection



Microsyringes for AOC-5000 liquid injection

Part number Description PCS Details
920-00139-03 1,2 µl Micro syringe with fixed needle 26 gauge 1 Details
980-04510 5 µl Micro syringe with fixed needle 23 gauge 1 Details
920-00139-05 5 µl Micro syringe with fixed needle 26 gauge 1 Details
980-06234 10µl Micro syringe with fixed needle for on column injections, 23gauge reduced to 26gauge 1 Details
920-00140-01 25 µl Micro syringe with fixed needle 26 gauge 1 Details
920-00140-02 100 µl Micro syringe with fixed needle 26 gauge 1 Details



Gastight syringes for AOC-5000 (Plus) headsapace injection

Part number Description PCS Details
920-00138-03 5.0ml Gastight syringe with fixed needle 23 gauge 1 Details




Further dimensions and specifications on request. For Research Use Only. Not for use in diagnostic procedures. This page may contain references to products that are not available in your country. Please contact us to check the availability of these products in your country.
