Unrivaled Analytical Performance

Unrivaled Analytical Performance

The high-performance SDD detector and optimized hardware achieve a high level of sensitivity, analysis speed, and energy resolution that were previously unattainable. The EDX-8000/8100 system also permits detection from 6C.

High Sensitivity − Lower Limit of Detection Improved 1.5 to 5 Times! −

The high-performance SDD detector and combination of optimized optics and primary filters achieve previously unheard-of high levels of sensitivity. The sensitivity is higher than the previous Si (Li) semiconductor detector across the entire range from light to heavy elements.

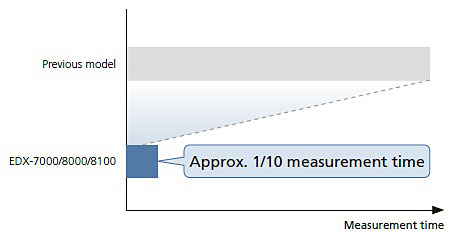

High Speed − Throughput Increased by up to a Factor of 10 −

The high fluorescent X-ray count per unit time (high count rate) of the SDD detector permits highly precise analysis in a shorter measurement time. This feature is achieved to the maximum when analyzing samples that generate a lot of fluorescent X-rays, such as samples with a metal as the Main component element.

Relationship Between Measurement Time and Standard Deviation
(Variance in Quantitation Values)


Comparison Using Actual Samples

Sample External Appearance

Repeatability using the EDX-7000/8000/8100 and the previous model were compared for lead (Pb) in lead-free solder.




Extending the Measurement time to increase the fluorescent X-ray count can improve the precision (repeatability) of X-ray fluorescence spectrometry. The EDX-7000/8000/8100 incorporate a high-count-rate SDD detector that achieves highly precise analysis of the target in a shorter Measurement time than the previous model.

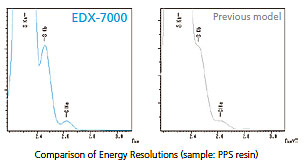

High Resolution

The EDX-7000/8000/8100 instruments achieve superior energy resolution compared to previous models by incorporating a state-of-the-art SDD detector. This reduces the effects of overlapping peaks of different elements, enhancing the reliability of the analysis results.

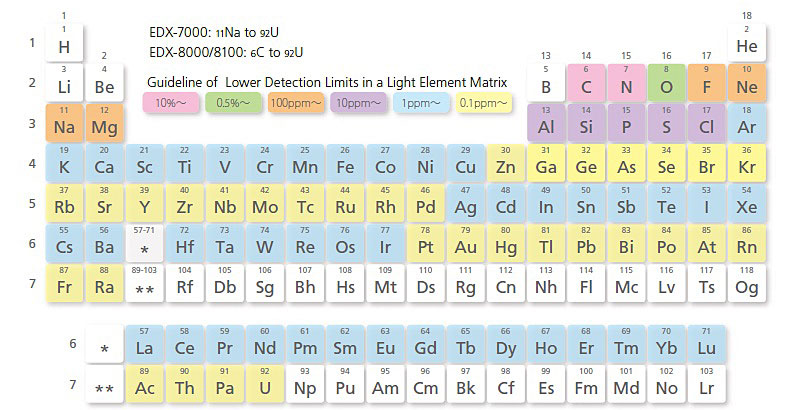

Range of Detected Elements

  • An optional vacuum measurement unit or helium purge unit is required to measure light elements (15P and below) with the EDX-7000/8100.
  • An optional vacuum measurement unit is required to measure light elements (15P and below) with the EDX-8000.
  • Lower detection limit vary depending on the sample matrix or coexisting elements.
  • Lower detection limit of light element (20Ca and below) get worse when the sample cell film is used.
  • It is impossible to measure 8O and below with sample cell film.

Ultra-Light Element Analysis by EDX-8000/8100

The EDX-8000/8100 features an SDD detector with a special ultra-thin-film window material that is able to detect ultra-light elements such as carbon (C), oxygen (O), and fluorine (F)
