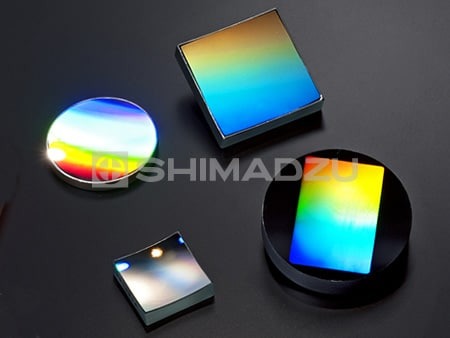

    Concave Blazed Holographic Gratings for Polychromators

Customer’s situation

Customer’s situation

"Near-infrared spectroscopy" is widely used for food quality evaluation. Shimadzu offers a wide range of high-efficiency concave gratings suitable for near-infrared spectroscopy.



*Affiliates and titles of the interviewee are current as of the time of reporting.

Learn more below.

{"title":"PDF Download","source":"case","key":115,"image_list":[]}

Background: What is a near-infrared spectroscopy for food analysis?

What is a near-infrared spectroscopy for food analysis?

Near-infrared spectroscopy is a non-destructive measurement method for evaluating food quality. It is used for the analysis of various foods and ingredients as follows:

  • Grains (protein, starch, water)
  • Raw milk (protein, fat, sugar)
  • Meat (protein, fat, water)
  • Beverages (alcohol, acidity, amino acids, sugar)
  • Fruit (sugar)

Near-infrared spectroscopy is useful for improving food quality and brand value because it can be used to select non-destructively and evaluate the quality of food.

A "diffraction grating" is generally used as a wavelength dispersion element in spectroscopy. Among them, near-infrared spectroscopy for food analysis in particular is mainly used with "concave gratings" that are easy to handle.

wavelength dispersion element

Advantage: Possible to easily develop a stable near-infrared spectroscopy for food analysis!

The biggest advantage of concave gratings is that a spectroscopy can be configured with a single element. Since the concave grating has an image formation function and an aberration correction function on the sensor surface, it is not necessary to construct a complex spectroscopic optical system with the addition of an image forming element such as a concave mirror.

Point 1: Design facilitation

In concave gratings, optimal optical placement information (slit and sensor placement) for each element is provided. Therefore, the spectroscopy can be easily designed by simply arranging the components as they are placed.

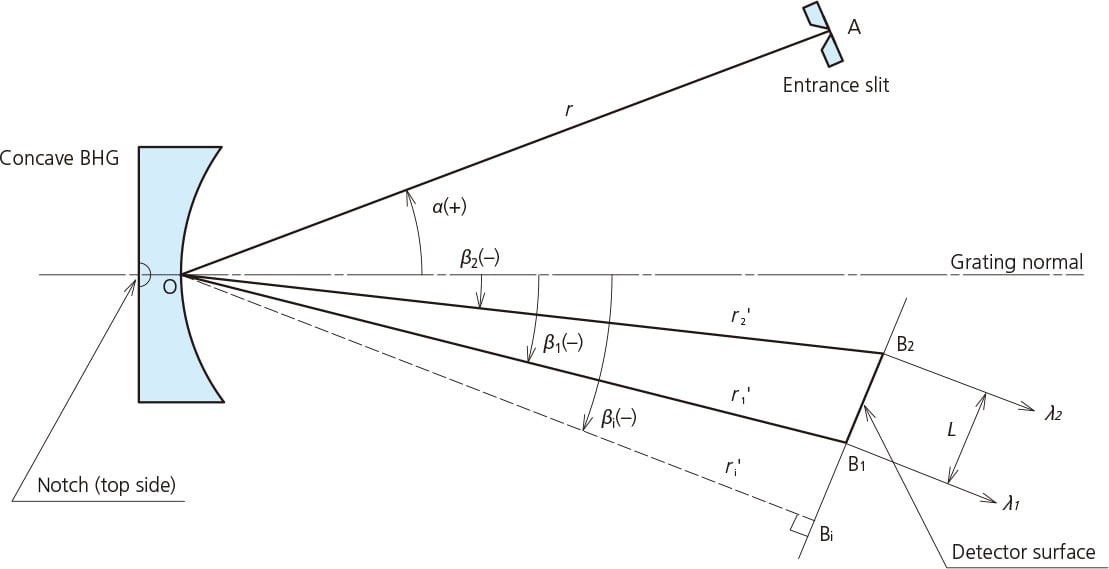

Concave BHG Mounting for Flat-Field Polychromator

Concave BHG Mounting for Flat-Field Polychromator

Point 2: Shortening of assembly adjustment time

Spectroscopy using concave gratings has fewer parts than spectroscopy using plane gratings or concave mirrors, so there are fewer adjustment points and assembly adjustment time can be shortened.

Point 3: Stabilization of analysis results

The small number of adjustment points of the spectroscopy also leads to suppression of variations in the characteristics of the spectroscopy. Since individual differences in food analyzers are less likely to occur, it contributes to the stabilization of analysis results.



Summary: Shimadzu Concave Grating

Our gratings are characterized by high diffraction efficiency and low stray light due to the brazed grooves.
We are also actively available for consultation on optical arrangement proposals, new diffraction gratings, and spectroscopy modules.
Please feel free to contact us first.
