Parts for Hydride Vapor Generator: HVG-1
Share
Share
Add Bookmark
Last update: 5 June 2024

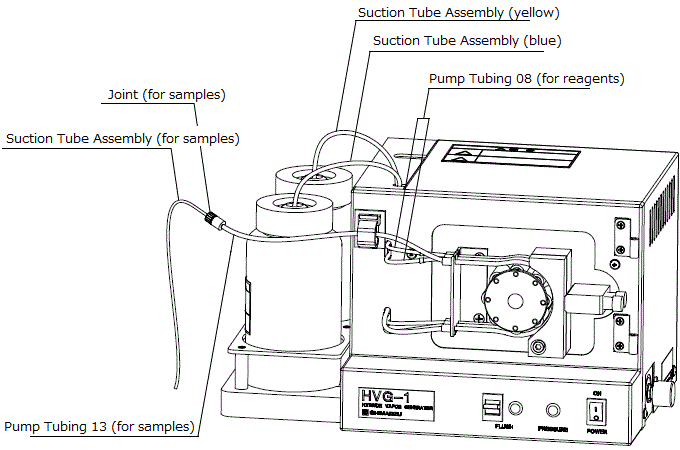

Hydride Vapor Generator Parts
Name | P/N | Appearance | Qty | Remarks |
---|---|---|---|---|
Suction Tube Assembly, Yellow |
206-18036-01
|
1 | For NaBH4, partial yellow coating on the tube | |
Suction Tube Assembly, Blue |
206-18036-02
|
1 | For HCl, partially blue coating on the tube | |
Pump Tubing 08, for Reagents |
208-90038-08
|
12 | Orange bridge on the tube | |
Pump Tubing 13, for Samples |
208-90038-13
|
12 | Blue bridge on the tube | |
Joint, for Samples |
206-17826-02
|
1 | Has a different inner diameter, etc. from the joint for reagents. | |
Joint, for Reagents |
206-17826-01
|
1 | Has a different inner diameter, etc. from the joint for samples. | |
Reaction Coil Assembly |
206-18037
|
1 | ||
Absorption Cell |
206-77607
|
1 | ||
Suction Tube Assembly, for Samples |
206-18036-03
|
1 |
Supplementary keywords: Hydride vapor generator, HVG-1
