SH-2330

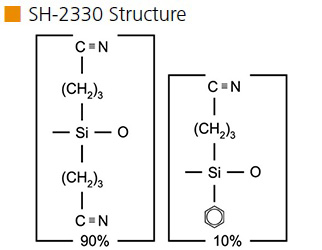

- Highly polar phase: Crossbond™ 90% biscyanopropyl / 10% cyanopropylphenyl polysiloxane (Non-bonded)
- General-purpose columns for cis/trans FAMEs, dioxin isomers.
- Equivalent to USP G8 and G48 phase.
- Similar phases: Rtx-2330, VF-23ms, SP-2330, SP-2331, SP-2380, BPX-70, 007-23, AT-Silar90
P/N | ID | df (Film Thickness) | Length | Temp. Range |
---|---|---|---|---|
227-36238-01 | 0.25 mm | 0.10 μm | 30 m | 0 to 260/275°C |
227-36238-02 | 0.25 mm | 0.10 μm | 60 m | 0 to 260/275°C |
227-36239-01 | 0.25 mm | 0.20 μm | 30 m | 0 to 260/275°C |
227-36239-02 | 0.25 mm | 0.20 μm | 60 m | 0 to 260/275°C |
227-36241-01 | 0.32 mm | 0.20 μm | 30 m | 0 to 260/275°C |
227-36241-02 | 0.32 mm | 0.20 μm | 60 m | 0 to 260/275°C |
227-36243-01 | 0.53 mm | 0.20 μm | 30 m | 0 to 260/275°C |
