SH-35 / SH-35MS

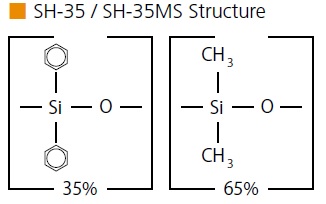

  • Mid-polarity phase: Crossbond™ 35% diphenyl / 65% dimethyl polysiloxane
  • General-purpose columns for organochlorine pesticides, PCB congeners (e.g., Aroclor mixes), herbicides, pharmaceuticals, sterols, rosin acids, phthalate esters.
  • Equivalent to USP G42 phase.
  • SH-35: Similar phases: Rtx-35, HP-35, DB-35, SPB-35, SPB-608, BPX-35, BPX-608, ZB-35, 007-35, AT-35, AT-35ms
  • SH-35MS: Similar phases: Rtx-35MS, DB-35ms, DB-35ms UI, VF-35ms, BPX-35, ZB-MR2

SH-35

P/N ID df (Film Thickness) Length Temp. Range
227-36146-01 0.25 mm 0.10 μm 30 m 40 to 320°C
227-36146-02 0.25 mm 0.10 μm 60 m 40 to 320°C
227-36147-01 0.25 mm 0.25 μm 30 m 40 to 320°C
221-75835-30 0.25 mm 0.25 μm 30 m 40 to 320°C
227-36147-02 0.25 mm 0.25 μm 60 m 40 to 320°C
227-36148-01 0.25 mm 0.50 μm 30 m 40 to 310°C
227-36148-02 0.25 mm 0.50 μm 60 m 40 to 310°C
227-36149-01 0.25 mm 1.00 μm 30 m 40 to 290°C
227-36149-02 0.25 mm 1.00 μm 60 m 40 to 290°C
227-36151-01 0.32 mm 0.25 μm 30 m 40 to 320°C
227-36151-02 0.32 mm 0.25 μm 60 m 40 to 320°C
227-36152-01 0.32 mm 0.50 μm 30 m 40 to 310°C
227-36153-01 0.32 mm 1.00 μm 30 m 40 to 290°C
227-36154-01 0.32 mm 1.50 μm 30 m 40 to 270/290°C
227-36155-01 0.32 mm 3.00 μm 30 m 40 to 250/270°C
227-36155-02 0.32 mm 3.00 μm 60 m 40 to 250/270°C
227-36158-01 0.53 mm 0.50 μm 30 m 40 to 300°C
227-36159-01 0.53 mm 1.00 μm 30 m 40 to 290°C
227-36159-02 0.53 mm 1.00 μm 60 m 40 to 290°C
227-36160-01 0.53 mm 1.50 μm 30 m 40 to 280°C
227-36161-01 0.53 mm 3.00 μm 30 m 40 to 240/260°C

SH-35MS

P/N ID df (Film Thickness) Length Temp. Range
227-36161-02 0.53 mm 3.00 μm 60 m 40 to 240/260°C
