SH-5MS

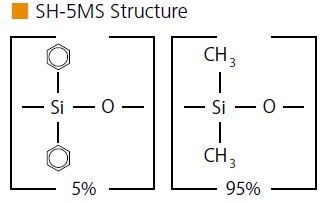

  • Low-polarity phase: Crossbond™ 5% diphenyl / 95% dimethyl polysiloxane
  • Column specifically tested for low-bleed performance.
  • General-purpose columns for drugs, solvent impurities, pesticides, hydrocarbons, PCB congeners (e.g., Aroclor mixes), essential oils, semi-volatiles.
  • Equivalent to USP G27 and G36 phases.
  • Similiar phases: Rtx-5MS, HP-5, DB-5, CP Sil 8 CB, SPB-5, BP-5, ZB-5, 007-5, AT-5, EC-5
P/N ID df (Film Thickness) Length Temp. Range
221-75854-15 0.25 mm 0.10 μm 15 m -60 to 330/350°C
221-75854-30 0.25 mm 0.10 μm 30 m -60 to 330/350°C
227-36122-01 0.25 mm 0.10 μm 60 m -60 to 330/350°C
221-75855-15 0.25 mm 0.25 μm 15 m -60 to 330/350°C
221-75855-30 0.25 mm 0.25 μm 30 m -60 to 330/350°C
227-36123-01 0.25 mm 0.25 μm 60 m -60 to 330/350°C
227-36124-01 0.25 mm 0.50 μm 30 m -60 to 330/350°C
227-36124-02 0.25 mm 0.50 μm 60 m -60 to 320/350°C
221-75857-30 0.25 mm 1.00 μm 30 m -60 to 325/350°C
227-36125-01 0.32 mm 0.10 μm 30 m -60 to 330/350°C
227-36125-02 0.32 mm 0.10 μm 60 m -60 to 330/350°C
221-75858-30 0.32 mm 0.25 μm 30 m -60 to 330/350°C
221-75858-60 0.32 mm 0.25 μm 60 m -60 to 330/350°C
227-36126-01 0.32 mm 0.50 μm 30 m -60 to 330/350°C
227-36126-02 0.32 mm 0.50 μm 60 m -60 to 330/350°C
227-36127-01 0.32 mm 1.00 μm 30 m -60 to 325/350°C
221-76191-30 0.53 mm 0.50 μm 30 m -60 to 320/340°C
227-36128-01 0.53 mm 1.00 μm 30 m -60 to 320/340°C
227-36129-01 0.53 mm 1.50 μm 30 m -60 to 310/330°C

For SH-5MS Columns with Integrated Guard column, please refer to the Integrated Guard Columns' page.
