SH-MetalX-5

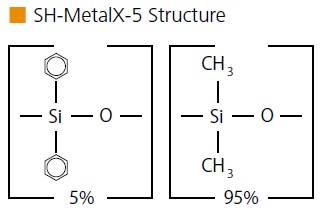

  • Low-polarity phase: Crossbond™ 5% diphenyl / 95% dimethyl polysiloxane
  • General-purpose columns for drugs, solvent impurities, pesticides, hydrocarbons, PCB congeners (e.g., Aroclor mixes), essential oils, and semivolatiles.
  • Equivalent to USP G27 and G36 phases.
  • 4.5" standard coil diameter.
  • Similar phases: MXT-5, HP-5, DB-5, CP-Sil 8 CB, SPB-5, BP-5, ZB-5, 007-5, EC-5, AT-5
P/N ID df (Film Thickness) Length Temp. Range
221-75743-30 0.25 mm 0.25 µm 30 m -60 to 430℃
