SH-Solvent Caps

Benefits

Closed system to prevent hazardous vapours from entering the laboratory
Hermetically seal all laboratory bottles with GL45 thread
Ensure safe inflow and outflow of HPLC solvents via capillaries with OD-ø 3.2 mm
Chemical resistance allows sterilisation and autoclaving up to 140 °C for soap-free operation
Prevent tangling of tubes by allowing the inner body of the cap to rotate independently
All Solvent Caps are supplied with an air valve and capillary fitting as the optimum solution for solvent removal

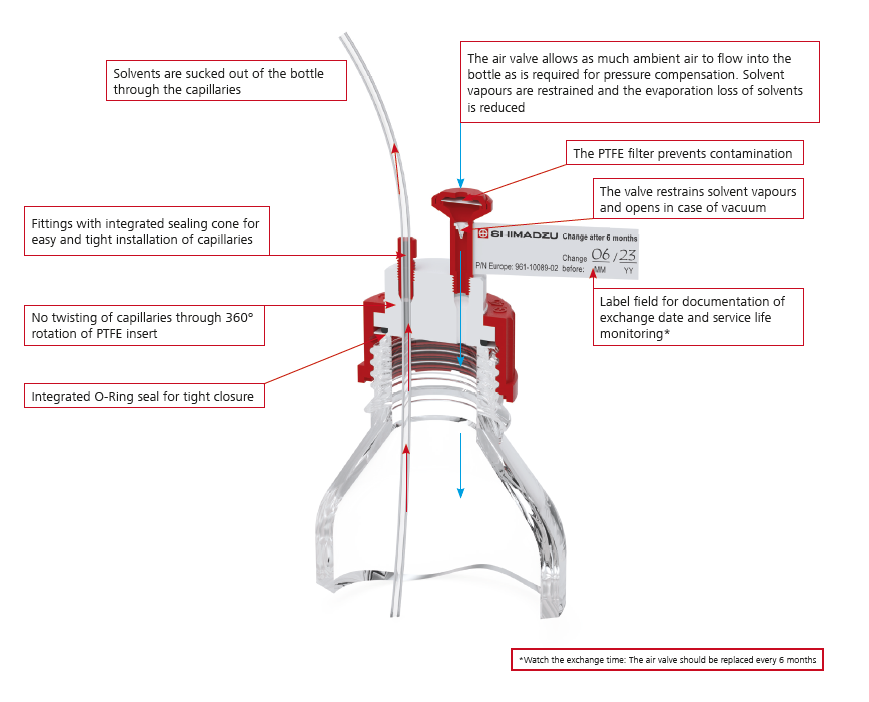

Features

Ordering Information

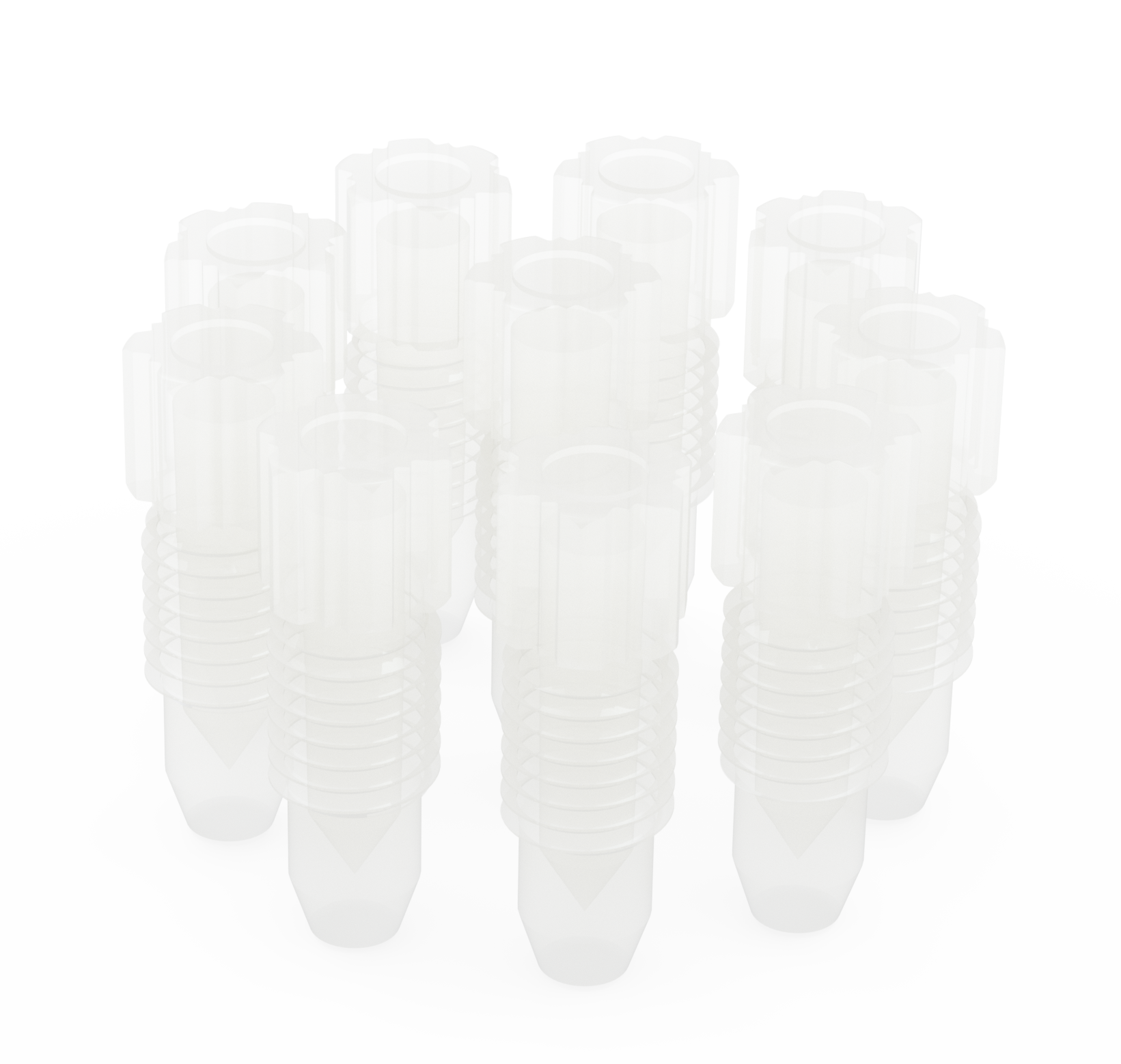

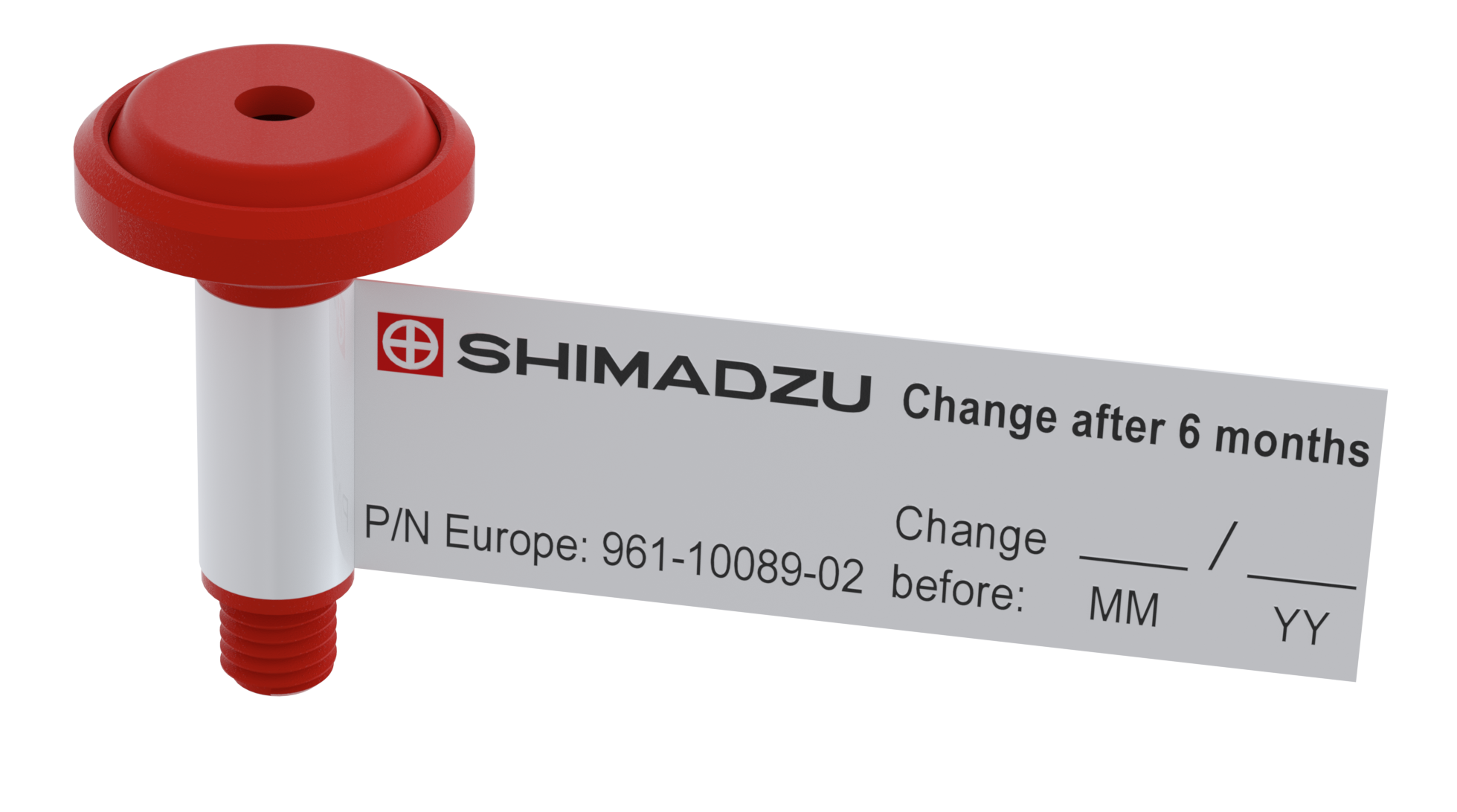

	1 Line	2 Lines	3 Lines	4 Lines	Air valve	with flag	Blind stopper (10 pcs.)

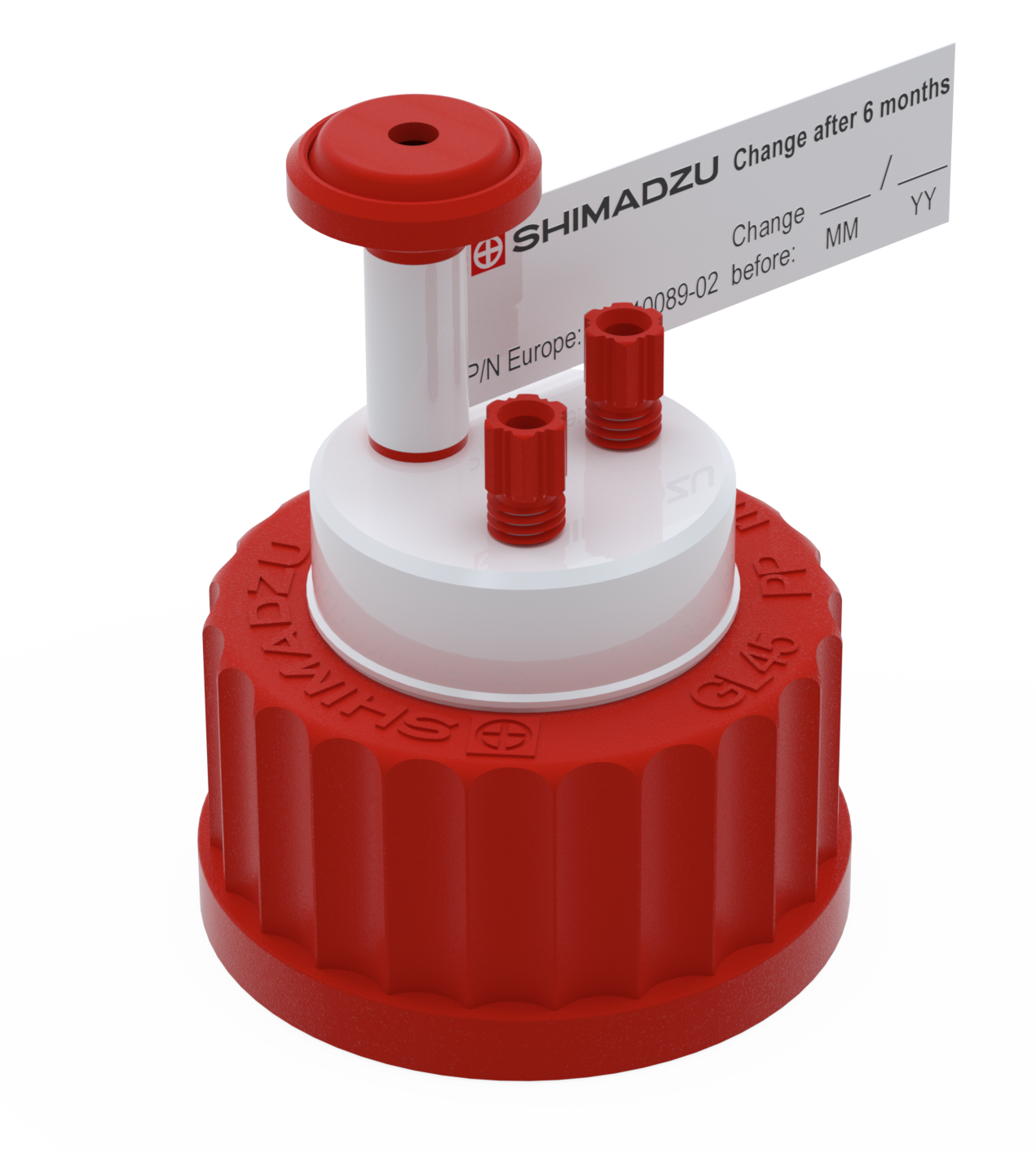

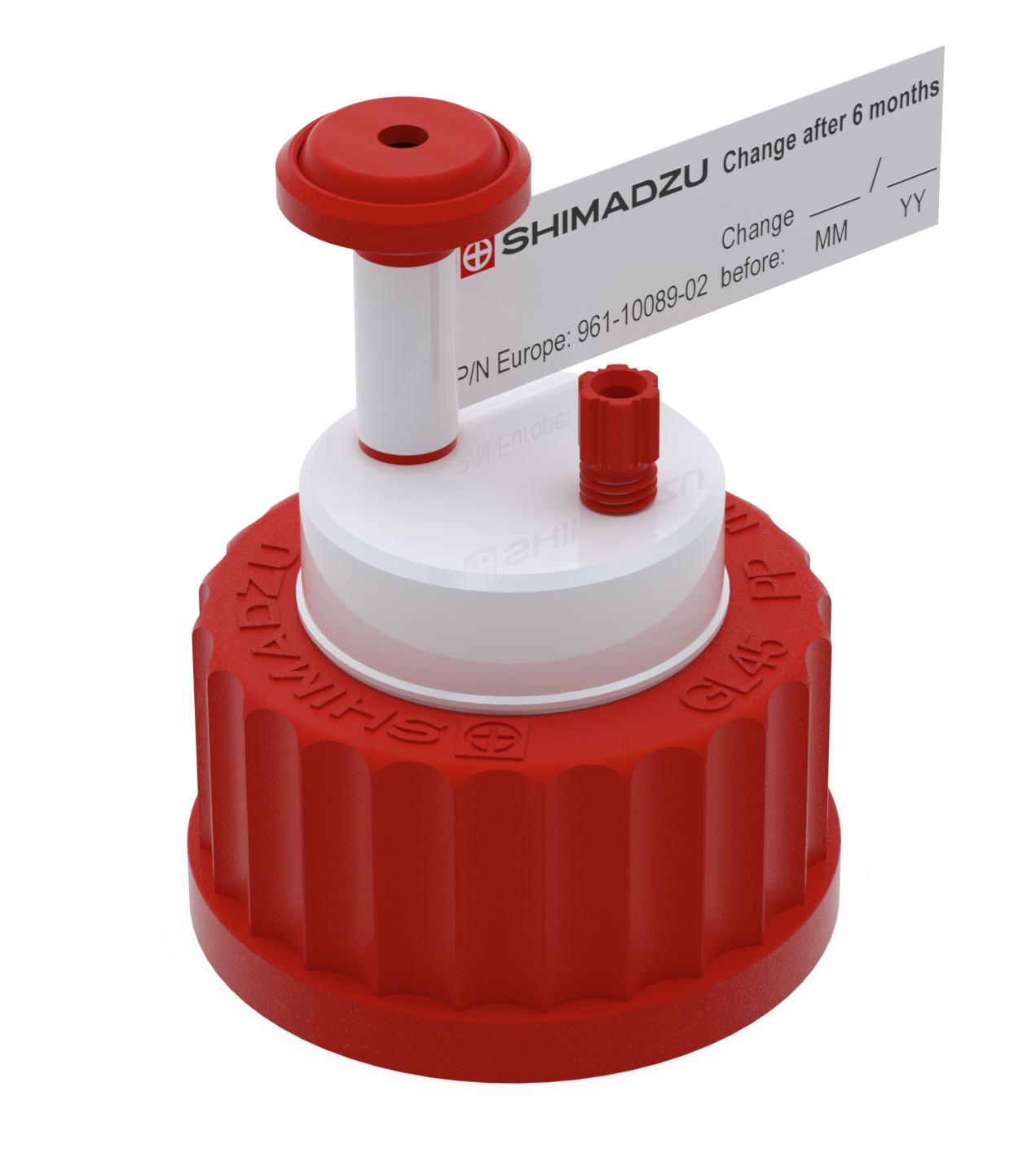

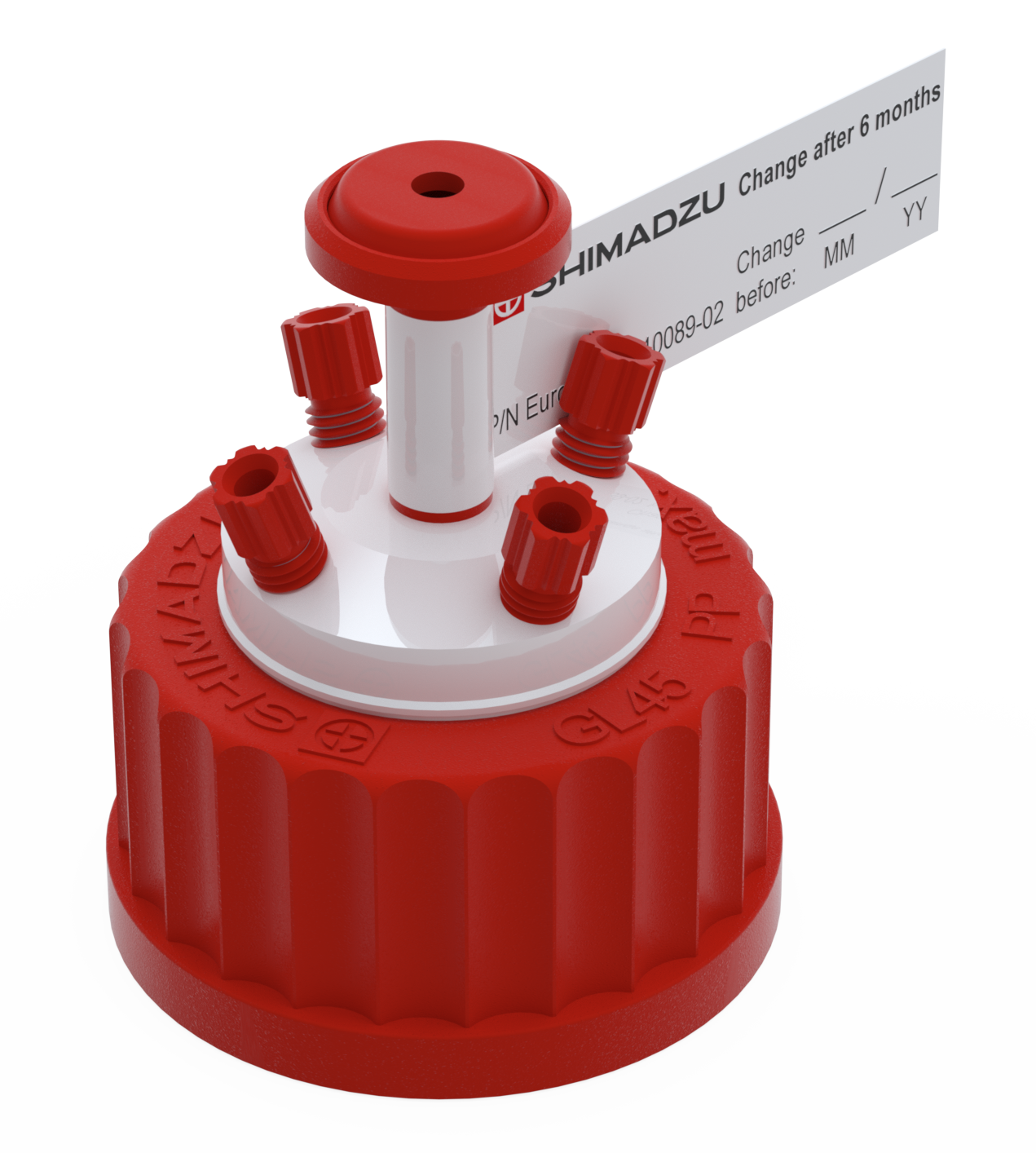

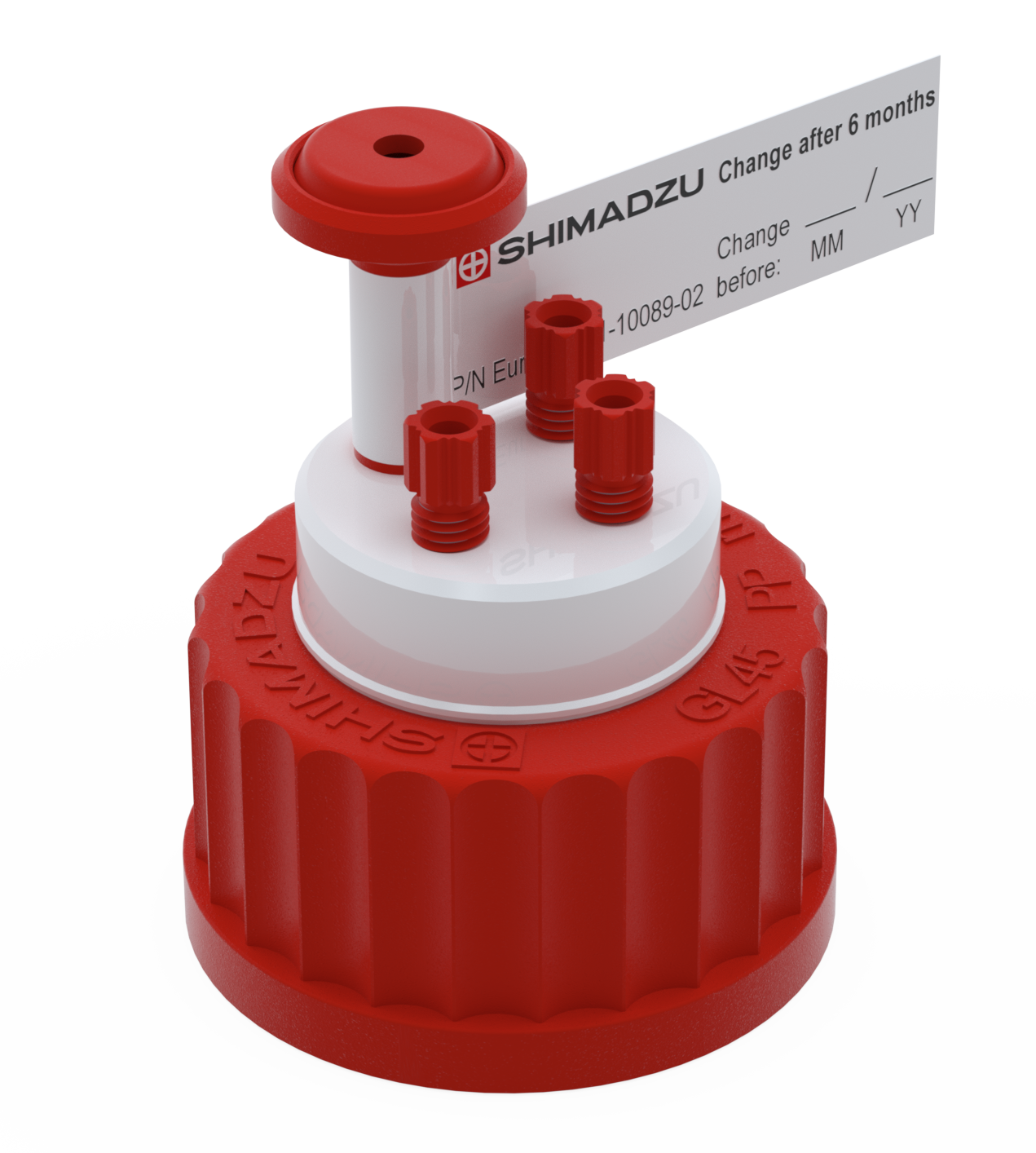

P/N	961-10081-01	961-10081-02	961-10081-03	961-10081-04	961-10089-02	9610089-10	961-10088-10
Content	1 Cap 1 Air valve + Flag 1 Fitting	1 Cap 1 Air valve + Flag 2 Fittings 1 Blind stopper	1 Cap 1 Air valve + Flag 3 Fittings 2 Blind stopper	1 Cap 1 Air valve + Flag 4 Fittings 3 Blind stopper	2 pcs.	10 pcs.	10 pcs.

Solvent Caps Packages

Useable for	LC	LC-MS	Method Scouting
P/N	961-10080-01	961-10080-02	961-10080-03
Content P/N	3x 961-10081-01	4x 961-10081-01	8x 961-10081-03
Title	./.	1x 961-10081-04	1x 961-10081-04
Replacement Air Valves	1x 961-10089-02	1x 961-10089-02	1x 961-10089-02
Waste Set	1x 980-10223	1x 980-10223	1x 980-10223

Solvent Caps Accessory

Waste Set

P/N	Content
980-10223	5 L space saving canister Waste Cap; S50 thread Fittings Size S exhaust filter; up to 3 months lifetime; with change indicator

Exhaust Filter for Waste Can

P/N	Content
980-10115	Size M; up to 6 months lifetime; with change indicator
