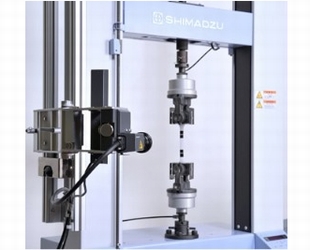

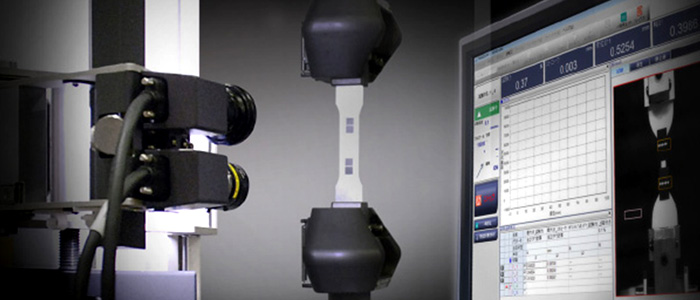

TRViewX is an advanced non-contact extensometer that offers high-measurement accuracy, is capable of measuring width changes, and is applicable to a wide variety of materials testing applications. In particular, due to the non-contact design, TRViewX is perfect for measuring films, foils, and other thin or narrow materials without affecting the specimen during testing. Furthermore, TRViewX can be used to measure displacements during atmosphere-controlled testing in a thermostatic chamber. TRViewX provides high-accuracy measurements in accordance with ISO 9513 Class 0.5 and JIS B 7741 Class 0.5 for elongation measurements and ISO 9513 Class 1 and JIS B 7741 Class 1 for width measurements. It is compliant with plastic tensile testing standards, including ISO 527, JIS K7161, and ASTM D638, even supporting 75 mm gauge length specimens (type A1 specimens) specified in ISO 527 and JIS K 7161.

TRViewX

Features

Learn more

Videos

Read more
Show Less
Learn More
