Diffraction Gratings for Laser Systems LA Series

Add Bookmark

Diffraction Grating for Laser Systems LA Series

Features

  • High diffraction efficiency
  • Wide wavelength coverage
  • Wide selection
  • Customizable



These gratings are suitable for various laser applications (external resonator, external cavity, pulse control). Applying TM waves (S-polarization) *1, a high diffraction efficiency is expected for a wide range of wavelengths. The LA Series products are replicated using high-quality masters. All nine products in this LA Series are customizable for laser resistance, substrate, size and other customer requirements.

Standard Specifications

Grating Type Equally spaced straight-groove replica grating *2
Blank material Low expansion Borosilicate glass
Dimensions *3 60±0.2 (W) × 60±0.2 (H) × 10±0.5 (T) mm
Effective area Total area less 2mm strip around the perimeter
Groove density tolerance ±0.5 grooves/mm
Coating *4 Aluminum (Al) or Gold (Au)
Scratches and Digs 80-50 (in accordance with MIL-O-13830A)

*1: The grating groove direction and the oscillation direction of electric field vector is perpendicular.
*2: The grating grooves are formed with resin.
Be sure to prevent condensation as this can cause a significant deterioration of optical characteristics.
The external appearances and specifications are subject to change without notice.
*3: LA0900-00114:50±0.2(W) × 50±0.2(H) × 10±0.5(T) mm
※RoHS compliant (Directive 2011/65/EU + (EU)2015/863 on the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment)

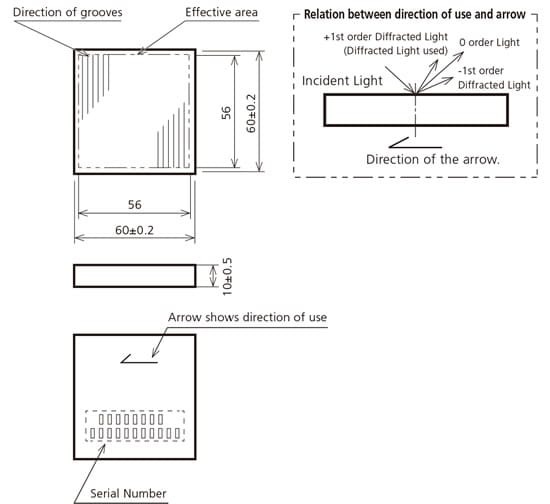

Outline Drawing
