Plane Blazed Holographic Gratings - Features

Add Bookmark

Characteristics ( measurement values for reference only)

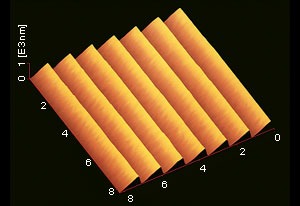

AFM Image of Blazed Holographic Grating

AFM Image of Blazed Holographic Grating

Groove density : 900 grooves/mm
Blaze wavelength : 1200 nm
Blaze angle : 33°

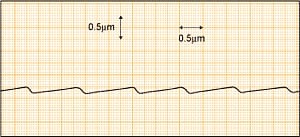

Profile of Blazed Holographic Grating Obtained with a Stylus Profiler System

Profile of Blazed Holographic Grating Obtained with a Stylus Profiler System

Groove density: 900 grooves/mm
Blaze wavelength: 270 nm
Blaze angle: 7°



Examples of Optical Systems

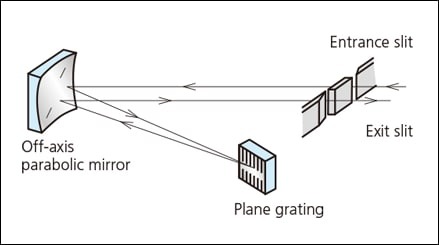

Application to a Littrow Type Spectrometer

Application to a Littrow Type Spectrometer

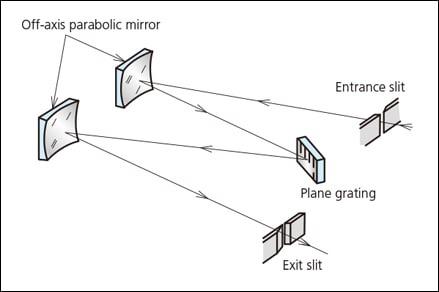

Application to a Czerny-Turner Type Spectrometer

Application to a Czerny-Turner Type Spectrometer

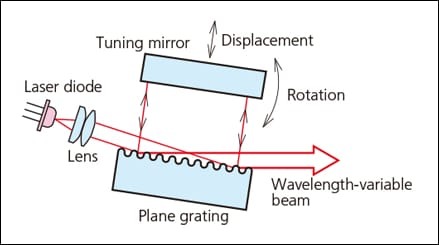

Application to a Variable-wavelength Monochrome Laser (Littman Configuration)

Application to a Variable-wavelength Monochrome Laser (Littman Configuration)

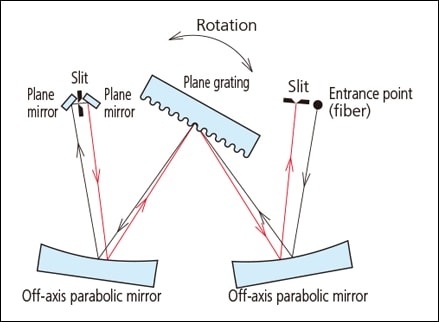

Application to a Double-path Monochromator

Application to a Double-path Monochromator
