1.5 ml screw vials, caps, kits, micro inserts

Glass Vials 1.5 ml Screw Neck

Content: 100 pcs. / pack

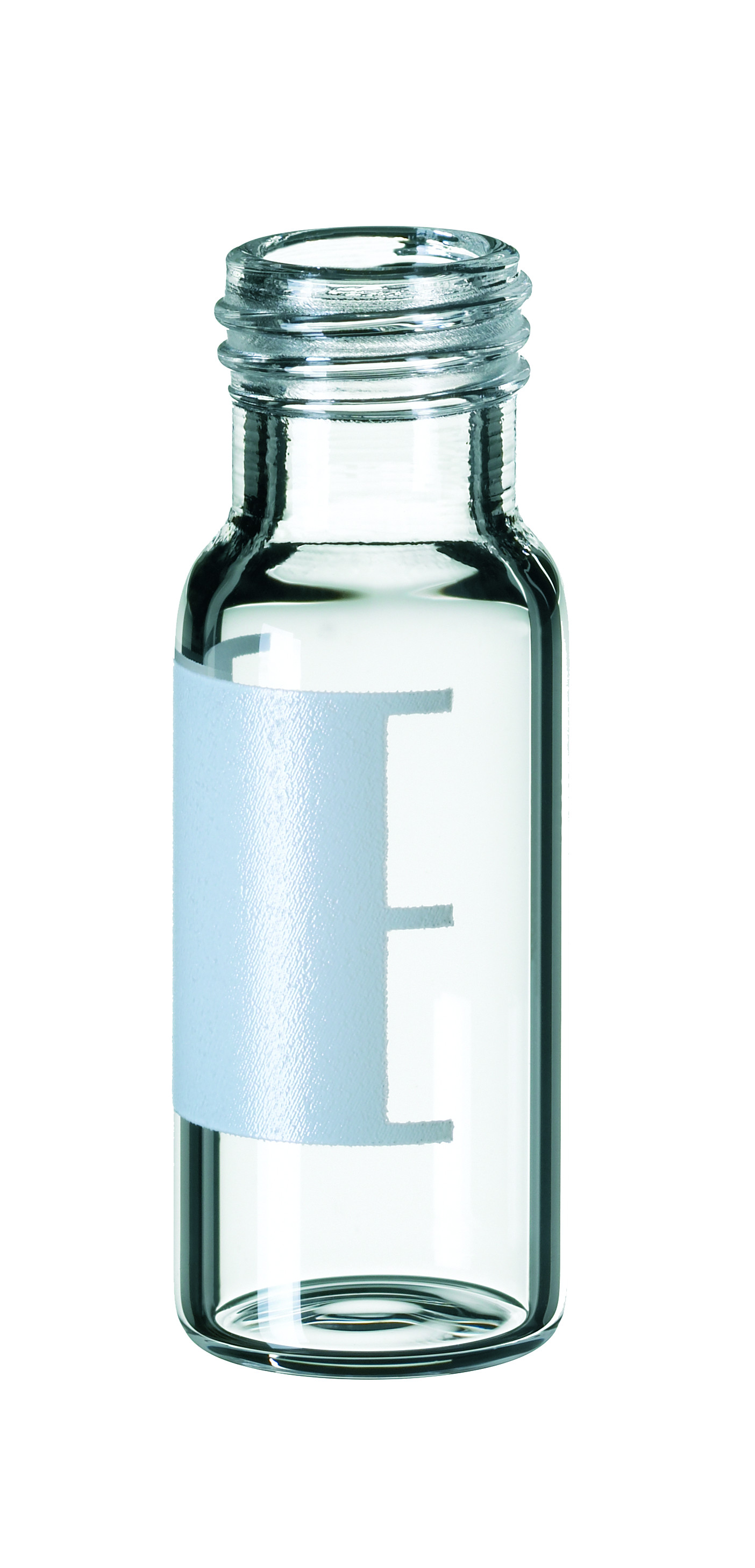

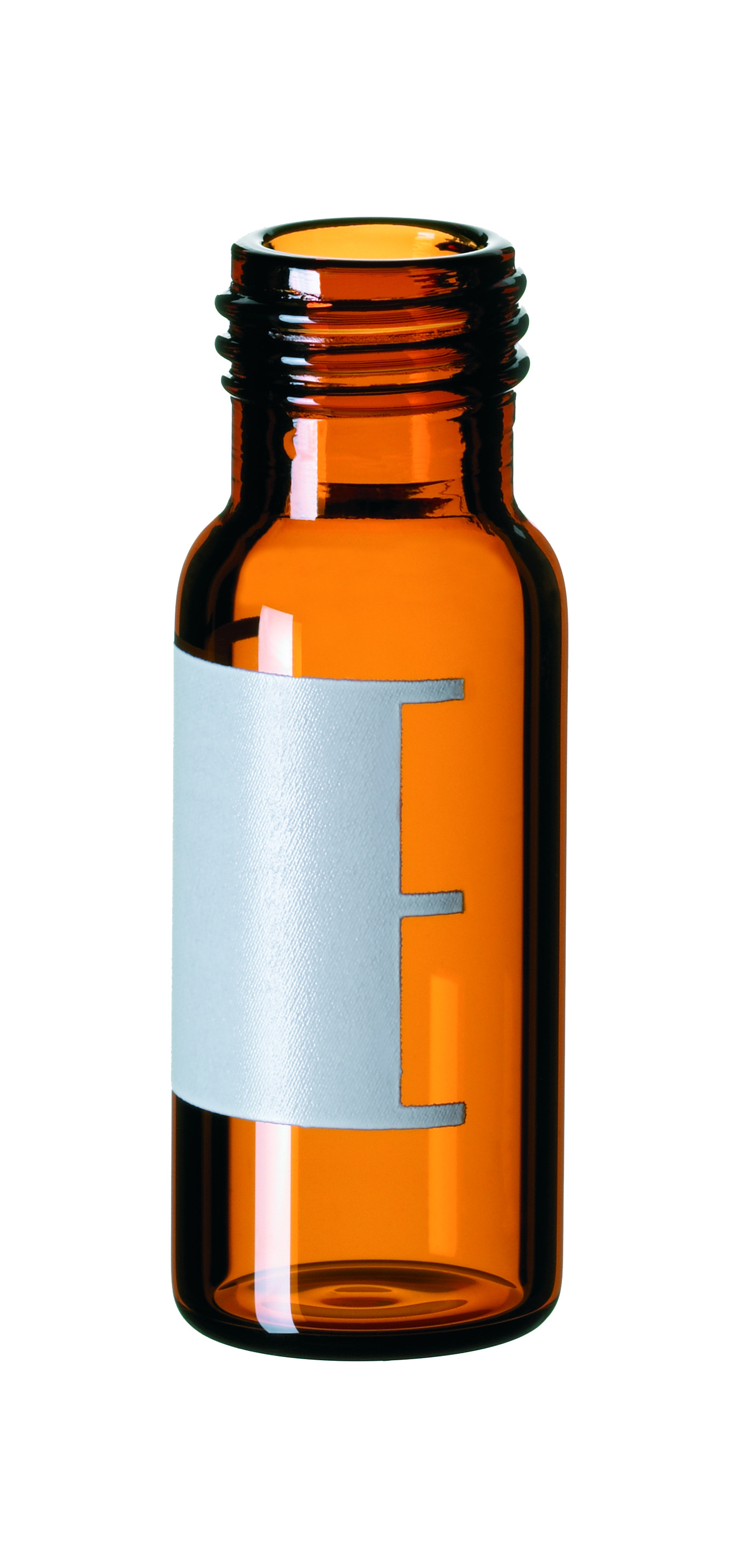

P/N	961-10020-25	961-10020-01	961-10020-02	961-10020-03	961-10020-20	961-10020-14

Volumen [ml]	1.5	1.5	1.5	1.5	0.3	0.2

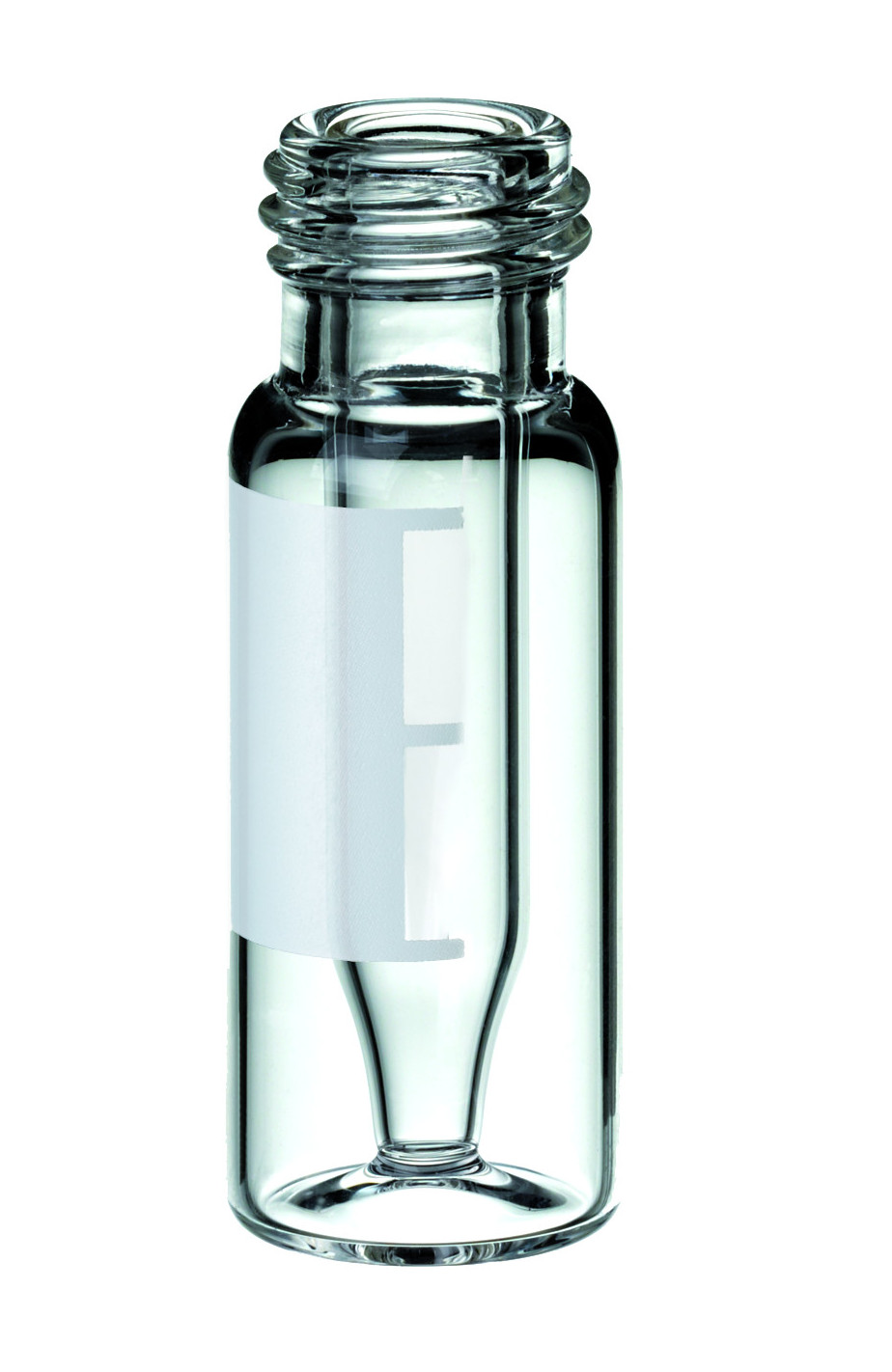

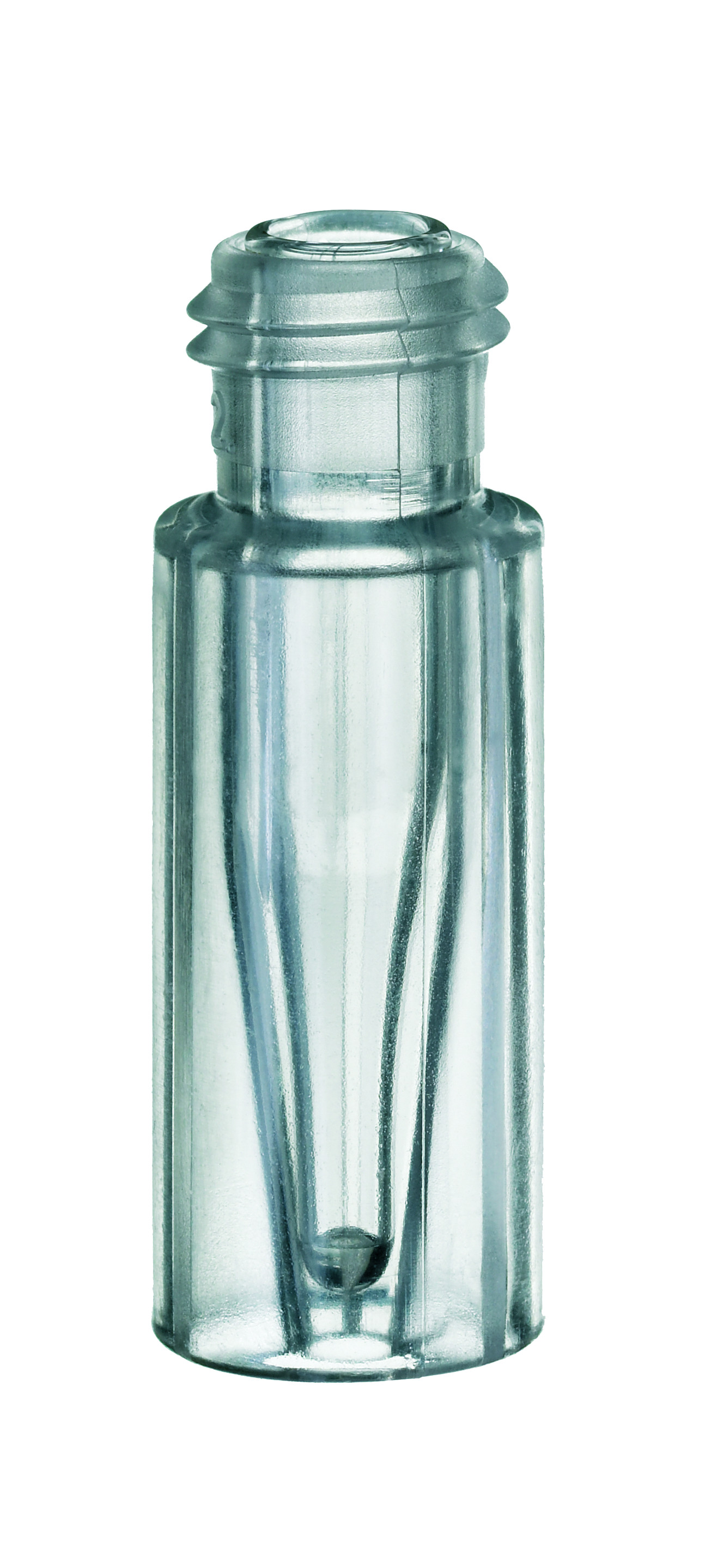

Material, color	glass, clear	glass, amber	glass, clear Silanized	glass, amber Silanized	glass, clear glass micro-insert	TPX, clear glass micro insert
Neck	short thread, wide open	short thread, wide open	short thread, wide open	short thread, wide open	screw neck	short thread
Head O.D. [mm]	9	9	9	9	9	9
Bottom	flat	flat	flat	flat	bottom bonded	./.
Dimension [mm]	32.0 x 11.6	32.0 x 11.6	32.0 x 11.6	32.0 x 11.6	32.0 x 11.6	32.0 x 11.6
Marking	label and filling lines	label and filling lines	label and filling lines	label and filling lines	label and filling lines	./.

Plastic Vials 1.5 ml Screw Neck

Content: 100 pcs. / pack

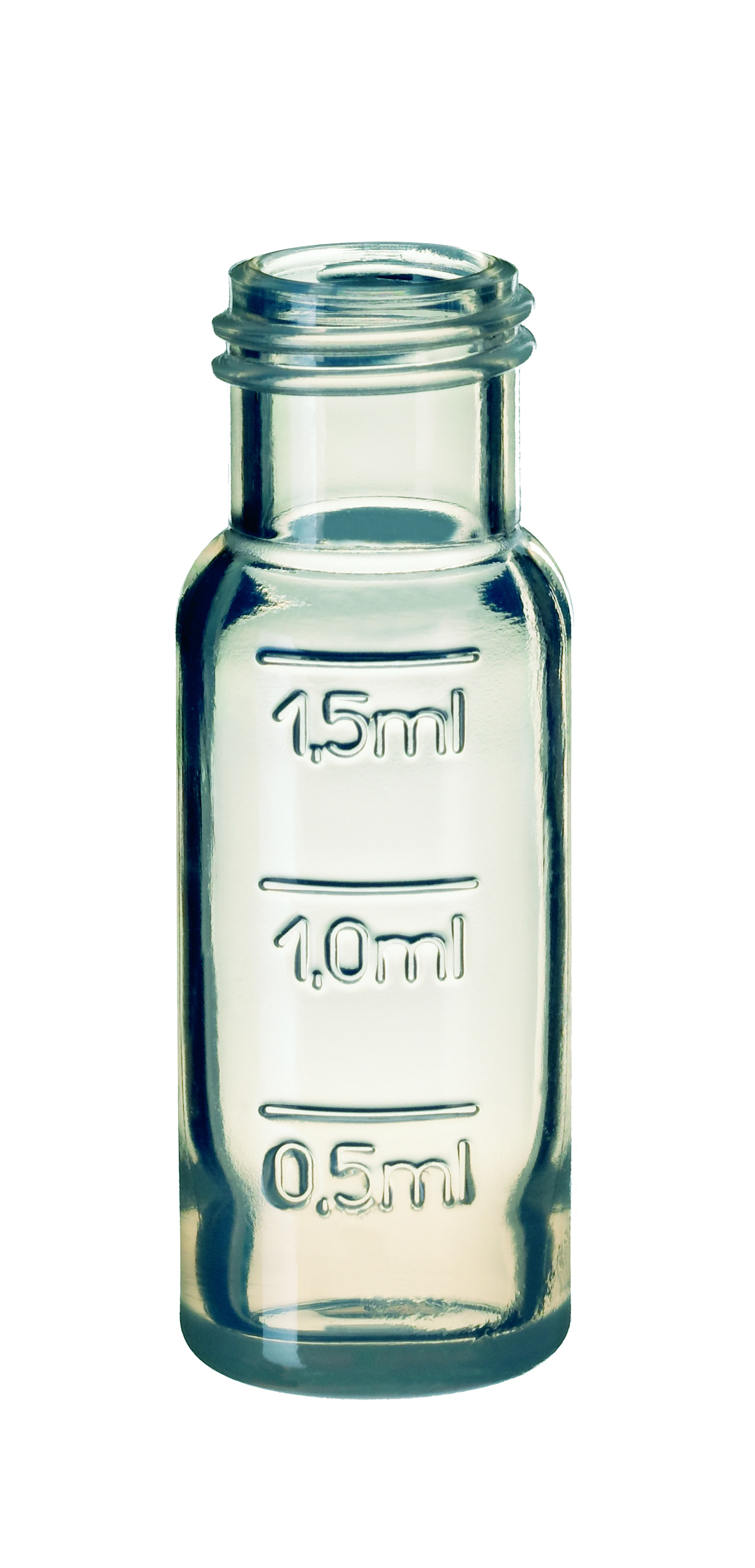

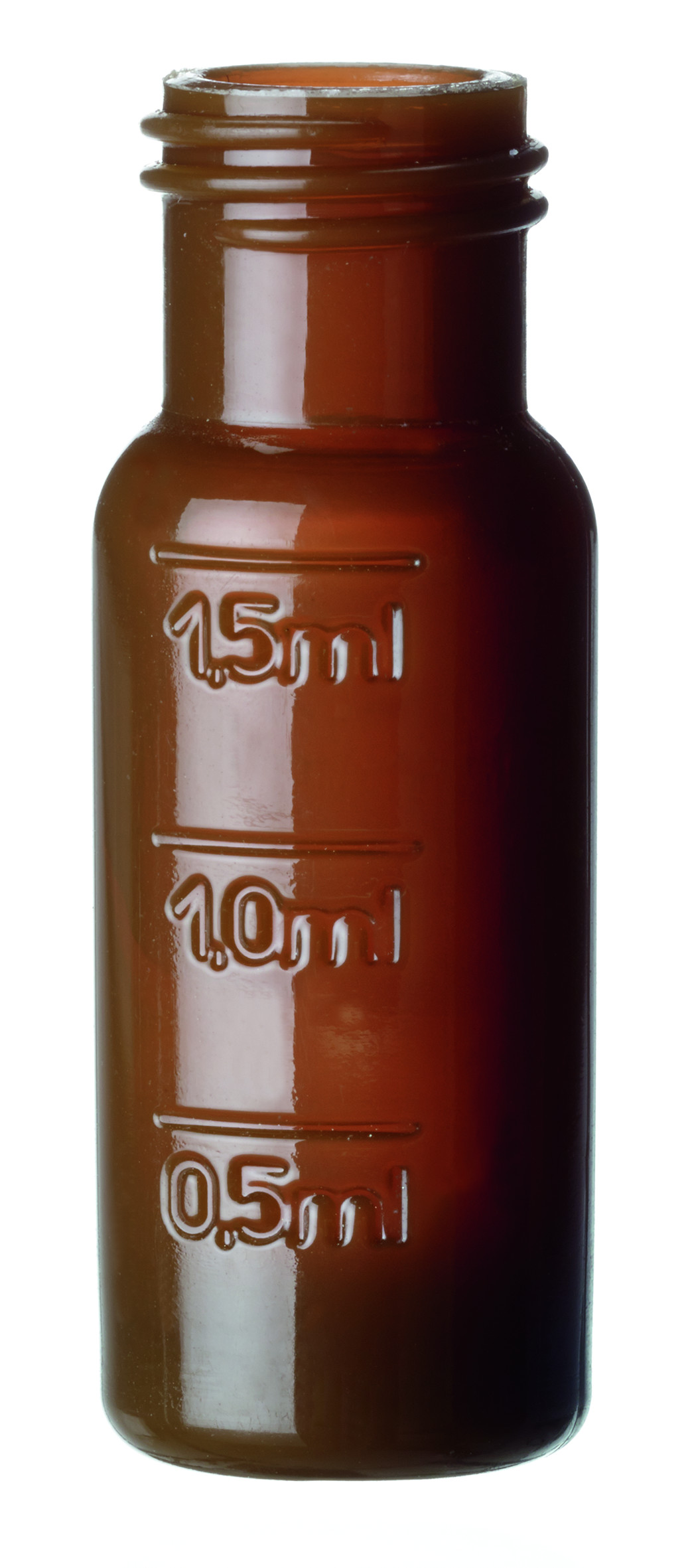

P/N	961-10020-16	961-10020-18	961-10020-15	961-10020-17	961-10020-19
Volumen [ml]	1.5	1.5	0.3	0.3	0.7

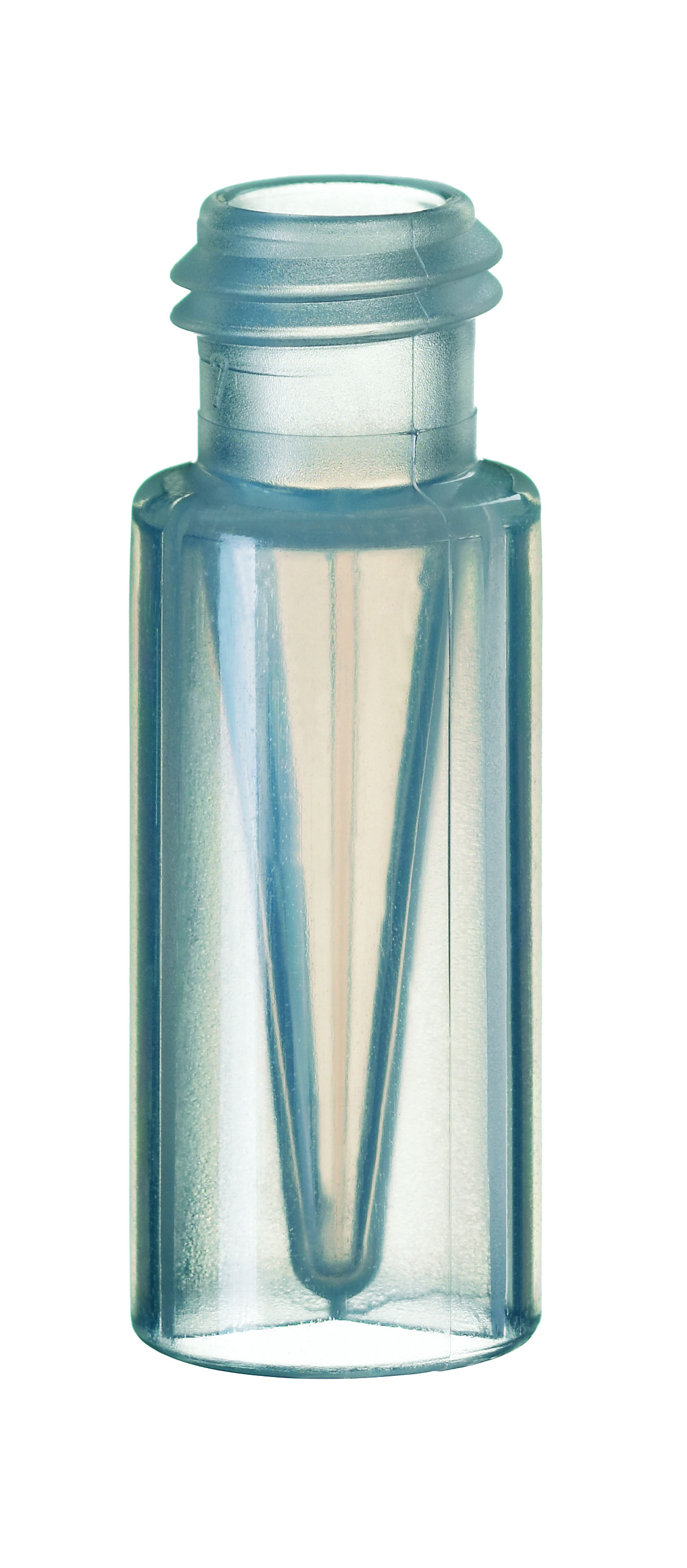

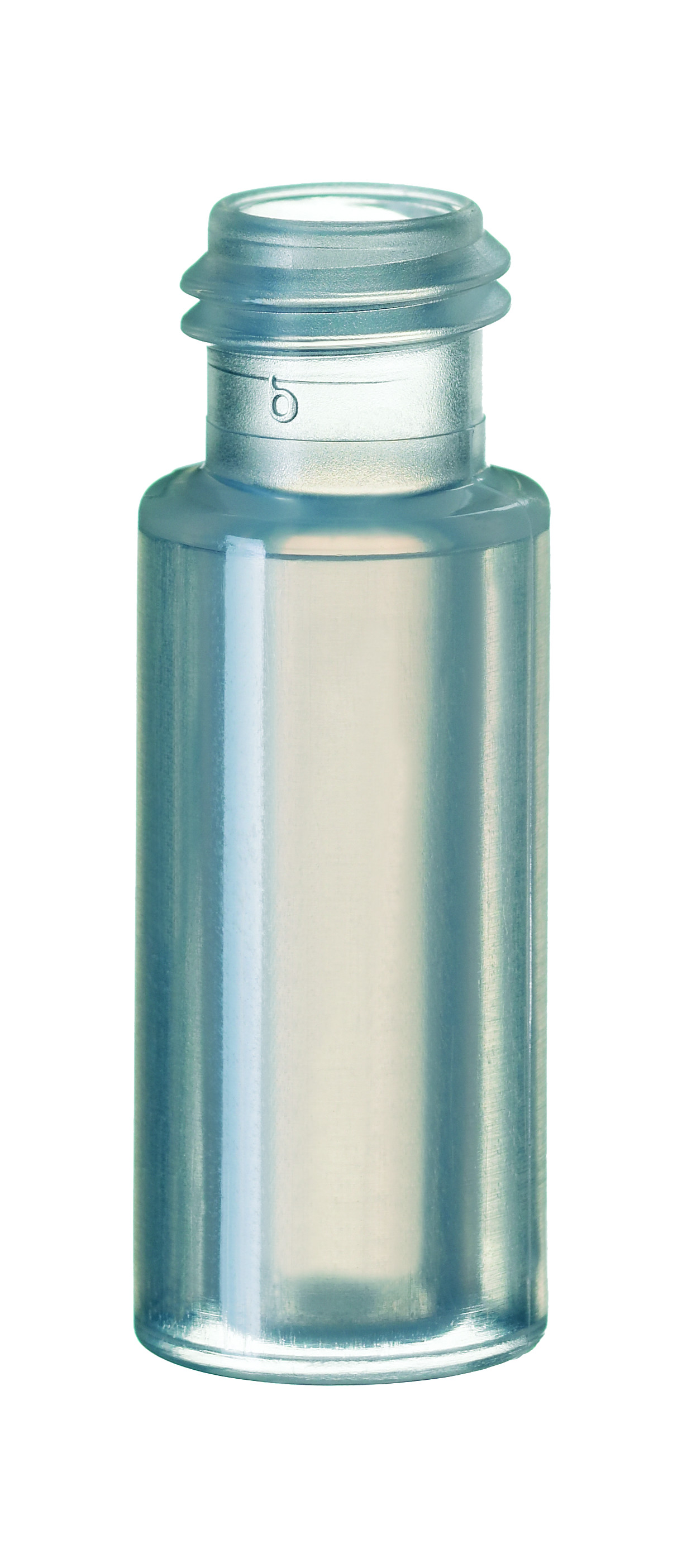

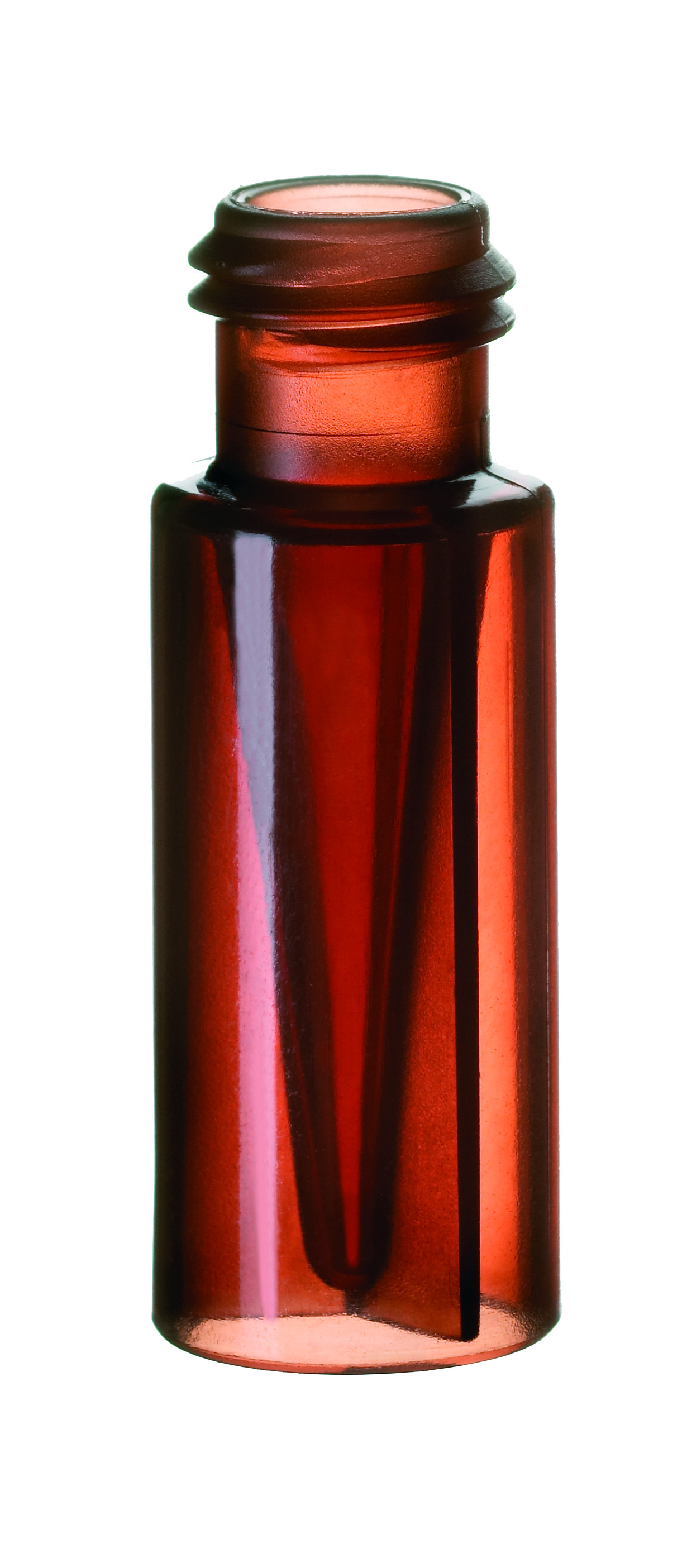

Material, color	plastic, clear	plastic, amber	plastic, clear micro-insert	plastic, amber micro-insert	plastic, clear micro-insert
Neck	short thread	short thread	short thread	short thread	short thread
Head O.D. [mm]	9	9	9	9	9
Bottom	concave	concave	./.	./.	flat
Dimension [mm]	32.0 x 11.6	32.0 x 11.6	32.0 x 11.6	32.0 x 11.6	32.0 x 11.6
Marking	filling lines	filling lines	./.	./.	./.

Micro Inserts

Content: 100 pcs. / pack


P/N	961-10020-28	961-10020-26	961-10020-27	961-10020-12
Volumen [ml]	0.1	0.1	0.1	0.2
Material, color	glass, clear	glass, clear, silanized	glass, clear	glass, clear
Bottom	assembled plastic spring	assembled plastic spring	./.	flat
Dimension [mm]	29.0 x 5.7	29.0 x 5.7	31.0 x 6.0	31.0 x 6.0

Screw Caps for 1.5 ml Vials

Content: 100 pcs. / pack


1	2	3	4	5	6	7	8

		Cap				Septum
Picture	P/N	Color	Material	Hole [mm]	Thread [mm]	Color	Material	Thickness [mm]	Shore A

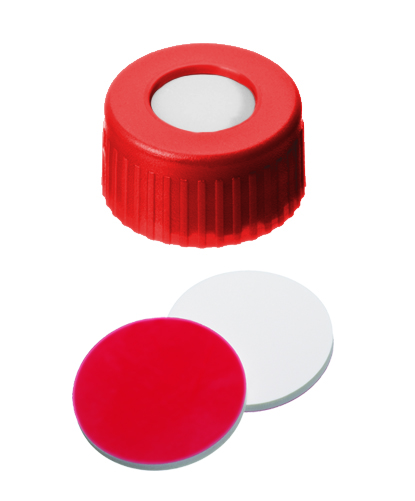

1	961-10030-23	red	PP, short thread	6	9	white / red	silicone / PTFE	1.0	55°

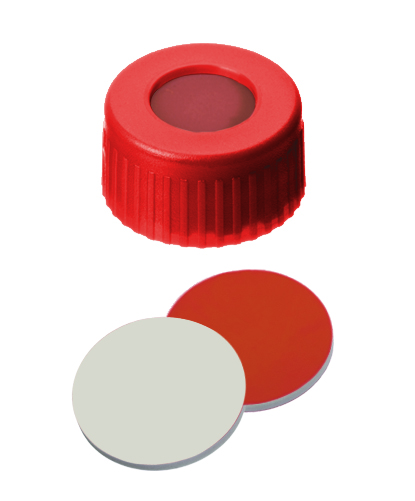

2	961-10030-05	red	PP, short thread	6	9	red / beige	rubber / PTFE	1.0	45°

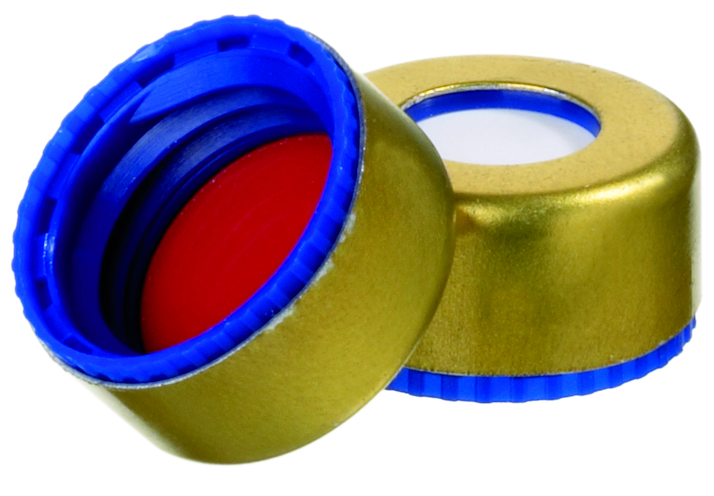

3	961-10030-13	gold	magnetic, short thread	6	9	white / red	silicone / PTFE UltraClean	1.0	55°

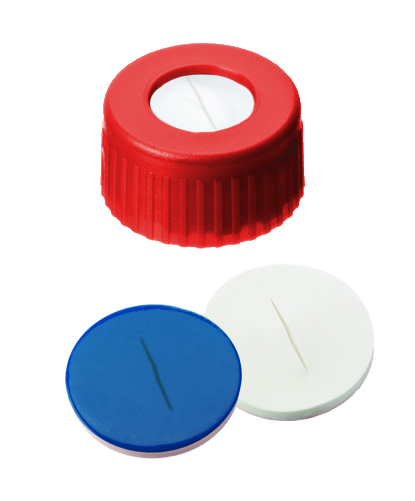

4	961-10030-14	red	PP, short thread	6	9	white / blue	silicone / PTFE with slit	1.0	55°

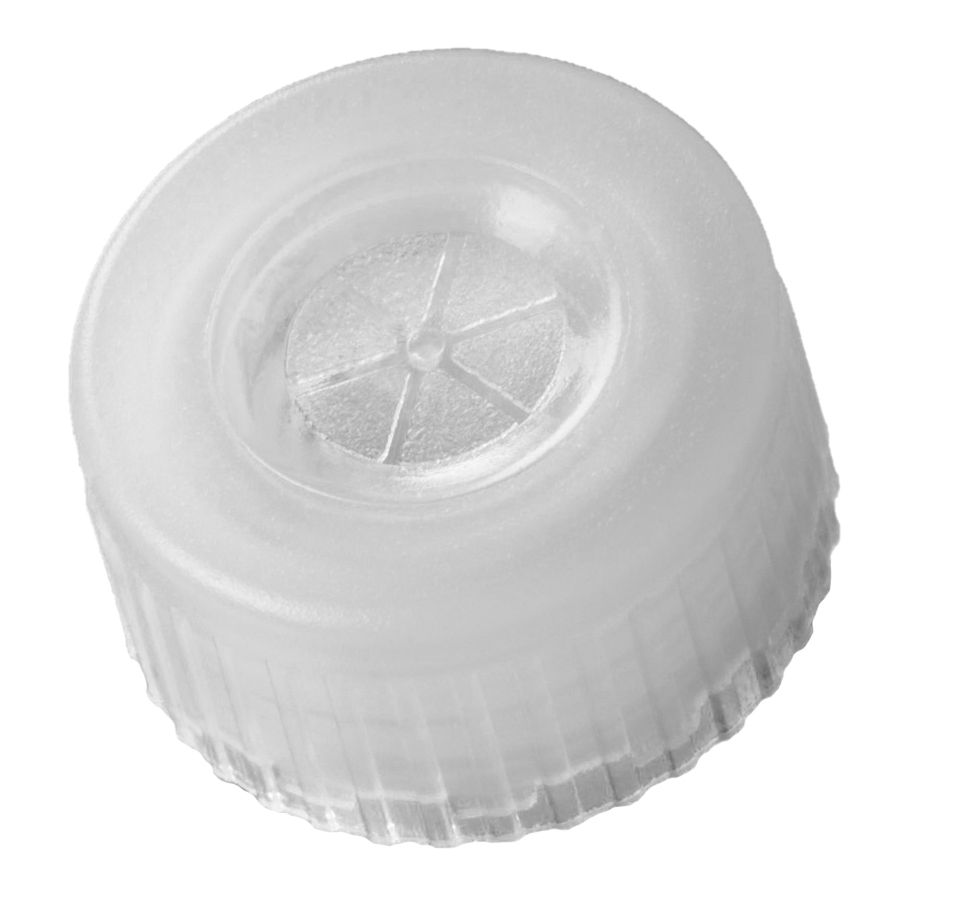

5	961-10030-18	transparent	PP, short thread	./.	9	One component closure - no bleeding; absolutely inert; pierceable like a septum; tight like a septum

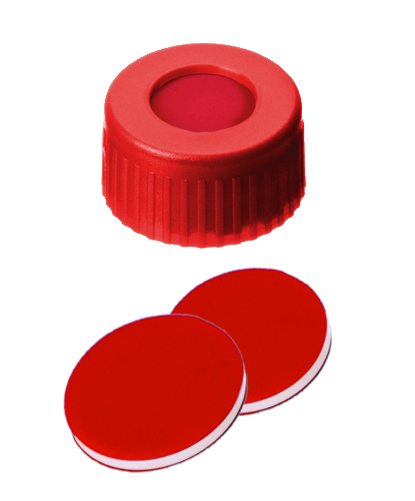

6	961-10030-06	red	PP, short thread	6	9	red / white / red	PTFE / silicone / PTFE with slit	1.0	45°

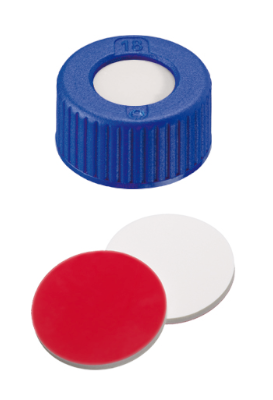

7	961-10030-25	blue	PP, short thread	6	9	white / red	silicone / PTFE UltraClean	1.0	55°

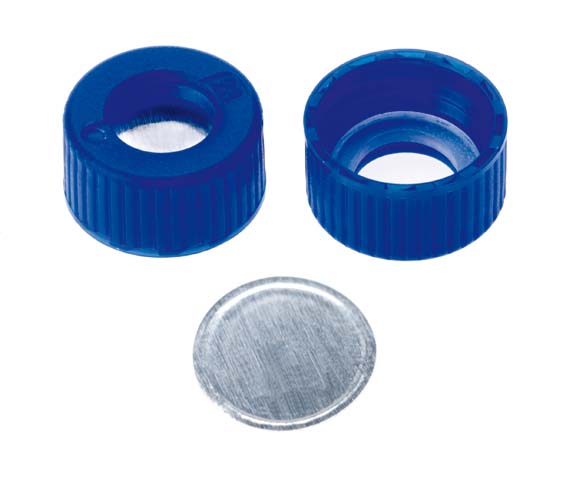

8	961-10030-31	blue	PP, short thread	6	9	silver	aluminium	0.06	./.

Kits 1.5 ml

Content: 100 pcs. / pack
Including vials, caps and septum

Kits P/N	Vial (Vial P/N)	Cap incl. Septum (Cap incl. Septum P/N)
961-10010-06	1.5 ml glass, clear with label and filling lines; 9 mm short thread; wide opening 32.0 x 11.6 mm 961-10020-25	Red PP-cap 6.0 mm centre hole; Silicone white/PTFE red; UltraClean; 1.0 mm thick; 55° shore A 961-10030-23
961-10010-13		Red PP-cap 6.0 mm centre hole; Silicone Rubber red/PTFE beige; 1.0 mm thick; 45° shore A 961-10030-05
961-10010-01	1.5 ml glass, amber with label and filling lines; 9 mm short thread; wide opening 961-10020-01	Red PP-cap 6.0 mm centre hole; Silicone white/PTFE red; UltraClean; 1.0 mm thick; 55° shore A 961-10030-23
961-10010-14		Red PP-cap 6.0 mm centre hole; Silicone Rubber red/PTFE beige; 1.0 mm thick; 45° shore A 961-10030-05
961-10010-02	1.5 ml silanized glass, clear with label and filling lines; 9 mm short thread; wide opening; 32.0 x 11.6 mm 961-10020-02	Red PP-cap 6.0 mm centre hole; Silicone white/PTFE red; UltraClean; 1.0 mm thick; 55° shore A 961-10030-23
961-10010-03	1.5 ml silanized glass, amber with label and filling lines; 9 mm short thread; wide opening; 32.0 x 11.6 mm 961-10020-03
