1.5. ml snap ring vials, caps

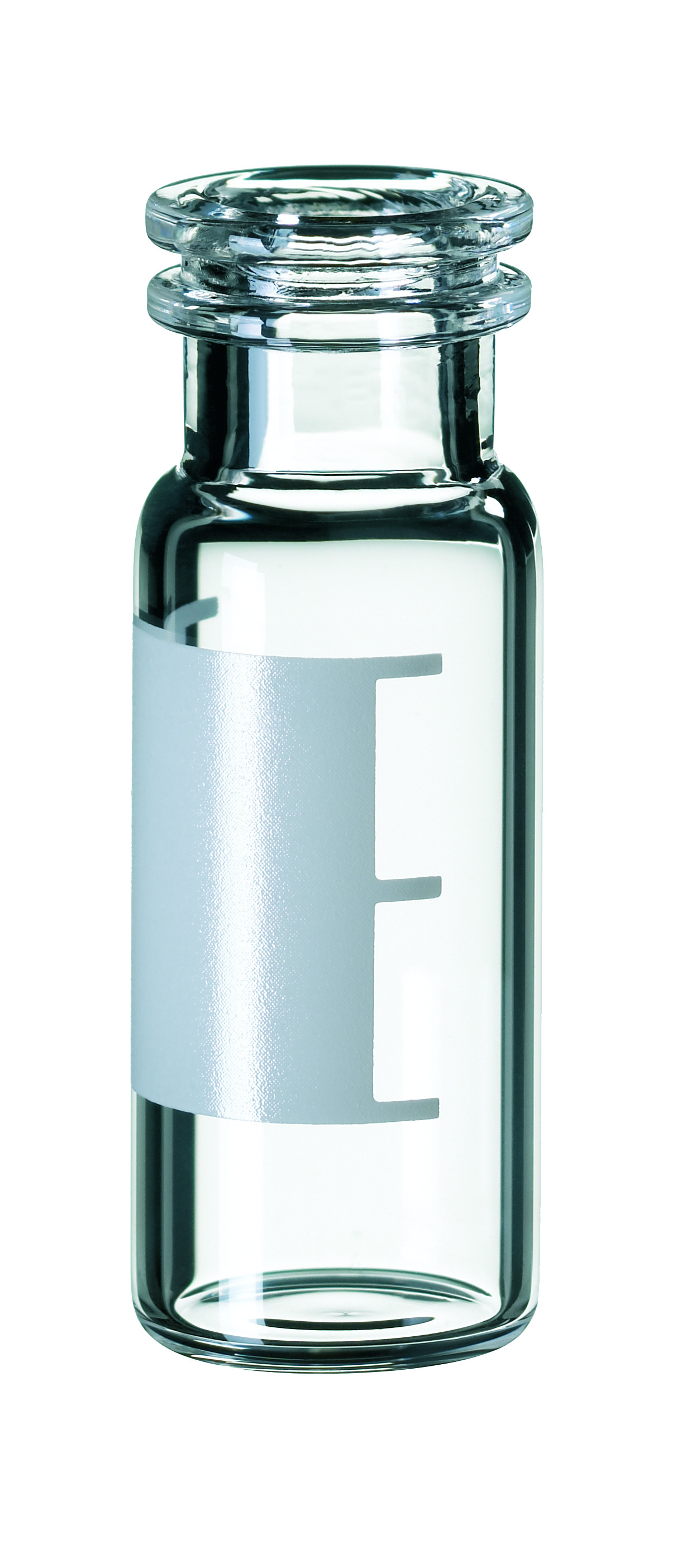

Glass Vials 1.5 ml Snap Ring

Content: 100 pcs. / pack


P/N	961-10020-32
Volumen [ml}	1.5
Materila, color	glass, clear
Neck	snap, wide open
Head O.D. [mm]	11
Bottom	flat
Dimension [mm]	32.0 x 11.6
Marking	Label and filling lines

Micro Inserts

Content: 100 pcs. / pack


P/N	961-10020-28	961-10020-26	961-10020-27	961-10020-12
Volumen [ml]	0.1	0.1	0.1	0.2
Material, color	glass, clear	glass, clear, silanized	glass, clear	glass, clear
Bottom	assembled plastic spring	assembled plastic spring	./.	flat
Dimension [mm]	29.0 x 5.7	29.0 x 5.7	31.0 x 6.0	31.0 x 6.0

Snap Caps for 1.5 ml Vials

Content: 100 pcs./pack


1	2	3	4

		Cap				Septum
Picture	P/N	Color	Material	Hole [mm]	Thread [mm]	Color	Material	Thickness [mm]	Shore A

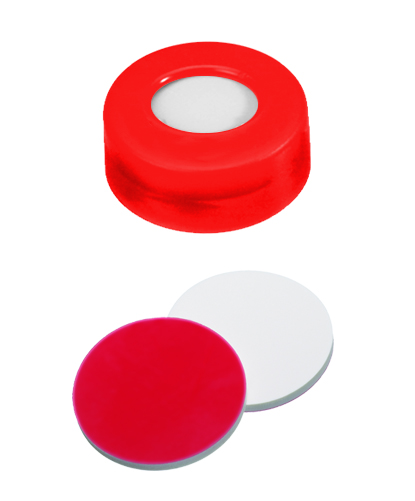

1	961-10030-26	red	PE, hard	6	11	white / red	silicone / PTFE UltraClead	1.3	45°

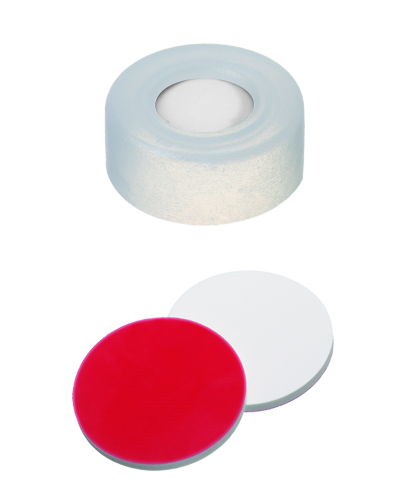

2	961-10030-27	transparent	PE, hard	6	11	white / red	silicone / PTFE UltraClead	1.3	45°
3	961-10030-28	transparent	PE, soft	6	11	white / red	silicone / PTFE UltraClead	1.3	45°

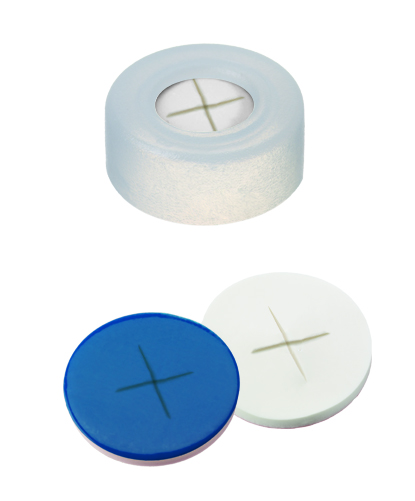

4	961-10030-30	transparent	PE, soft	6	11	white / blue	silicone / PTFE cross-slit	1.0	55°
