Headspace Crimp Vials

Add Bookmark

Glass Vials 10 ml and 20 ml Crimp Neck

Content: 100 pcs. / pack


961-10020-10
961-10020-11

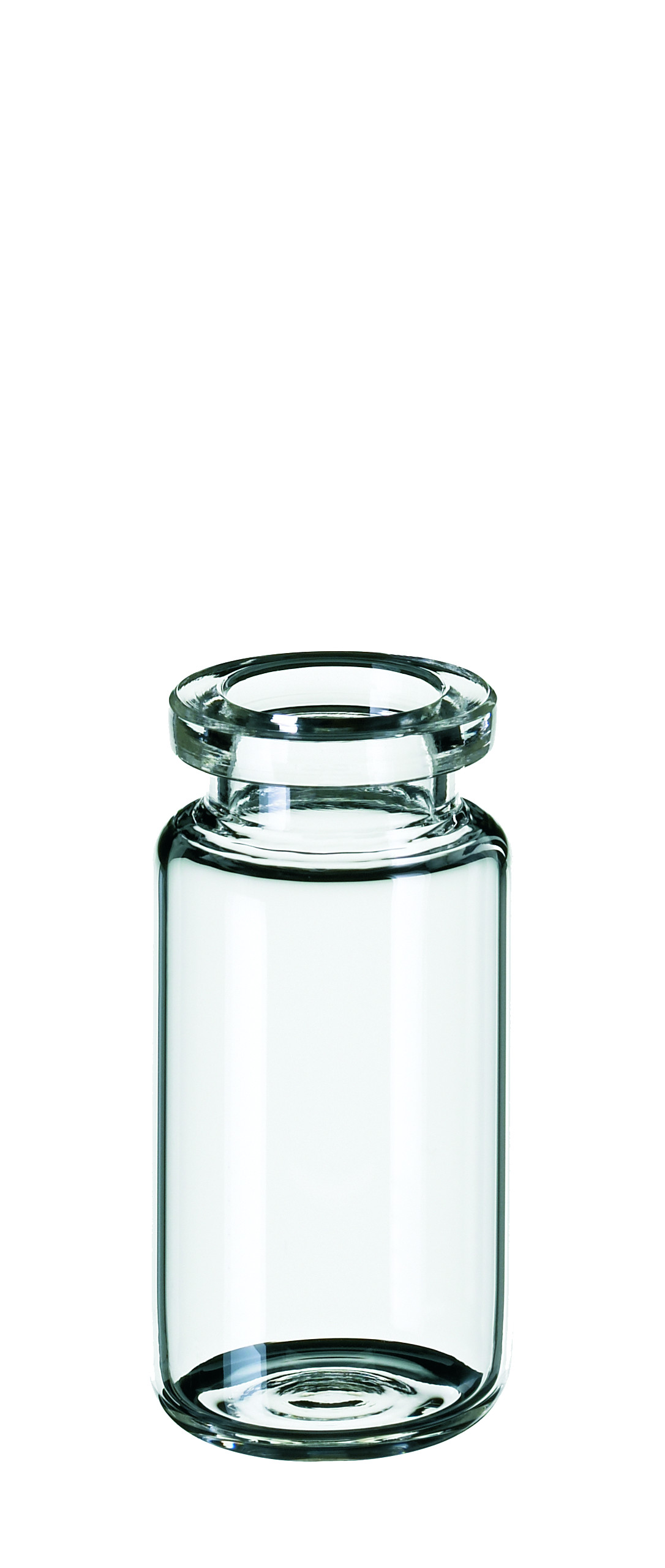

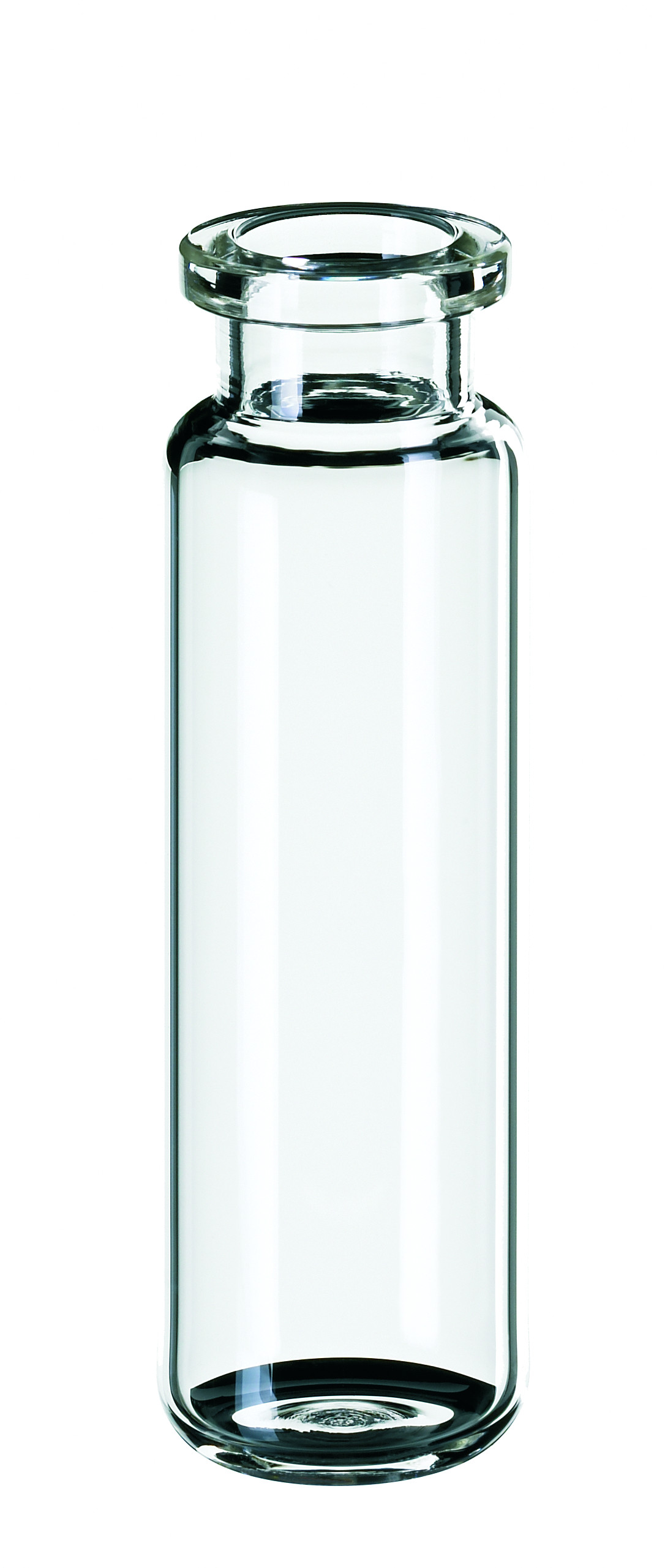

P/N 961-10020-10 961-10020-11
Volumen [ml] 10 20
Matreial, color glass, clear glass, clear
Neck crimp crimp
Head O.d. [mm] 18 18
Bottom round round
Dimension [mm] 46.0 x 22.5 75.5 x 22.5

Headspace Crimp Caps

Content: 100 pcs. / pack

961-10030-04
961-10030-08
961-10030-15
961-10030-16
961-10030-17
961-10030-21
961-10030-22
961-10030-32
1 2 3 4 5 6 7 8



    Cap Septum
Picture P/N Color Material Hole [mm] Thread [mm] Color Material Thickness [mm] Shore A

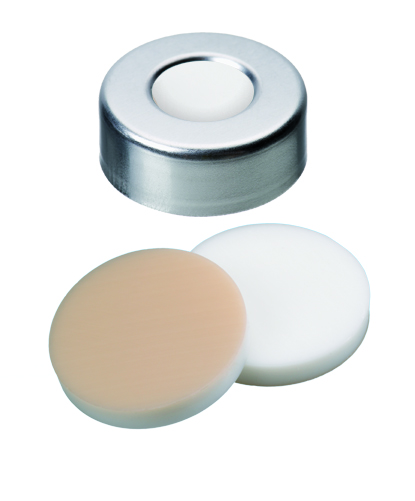

1 961-10030-04 silver aluminium, plain 10 20 white / beige

silicone / PTFE
UltraClean

 3.2 45°

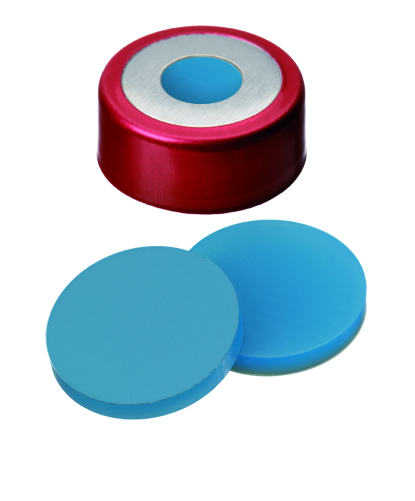

2 961-10030-08 silver / red Bi-metak, magnetic 8 20 blue transparent / transparent silicone / PTFE
UltraClean		 3.0 45°

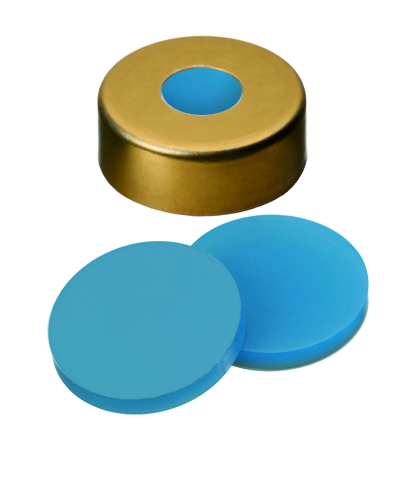

3 961-10030-15 gold magnetic 8 20 blue transparent / transparent silicone / PTFE
UltraClean		 3.0 45°

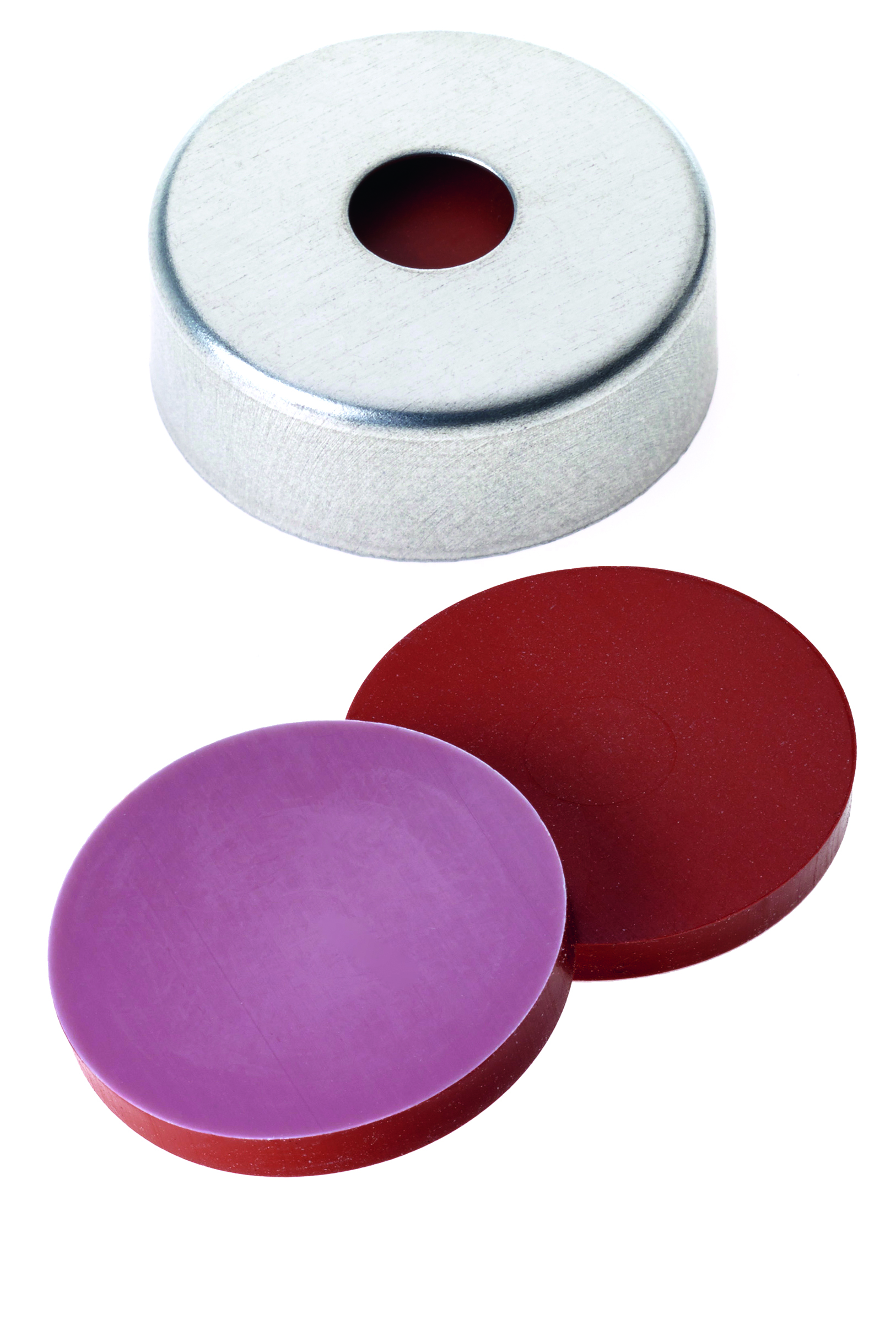

4 961-10030-16 silver steel 5 20 dark red / transparent

ultra high temperature silicone/PTFE
UltraClean

 3.0 45°

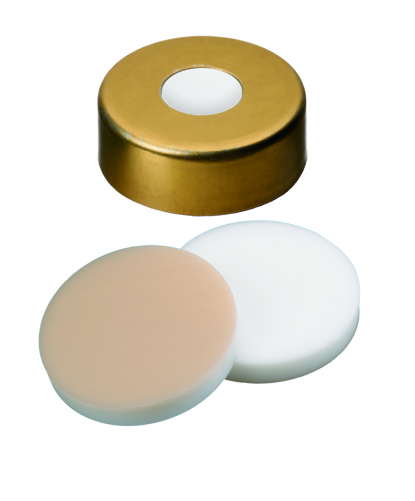

5 961-10030-17 gold magnetic 8 20 white / beige silicone / PTFE 3.2 45°

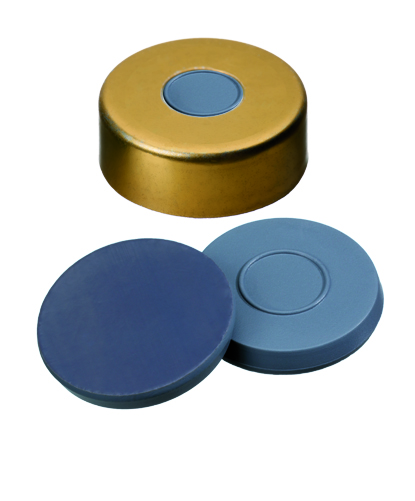

6 961-10030-21 gold magnetic 8 20 grey / grey bromo-butyl / PTFE 3.0 50°

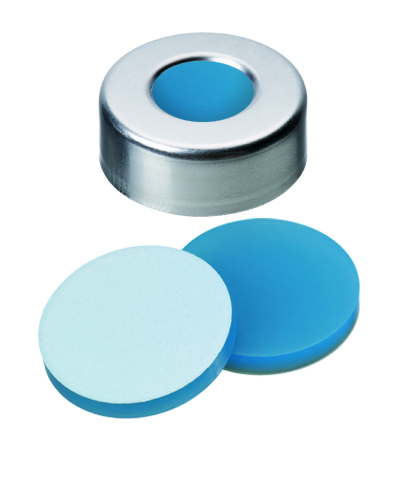

7 961-10030-22 silver aluminium, plain 10 20 blue transparent / white silicone / PTFE
UltraClean		 3.0 45°

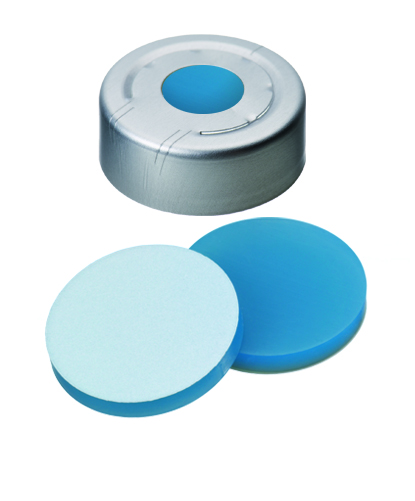

8 961-10030-32 silver aluminium with pressure release 8 20 blue transparent / white silicone / PTFE
UltraClean		 3.0 45°





Kits 20 ml

Content: 100 pcs. / pack
Including vials, caps and septum

Kit



Kits P/N Vial
(vial P/N)		 Cap incl. septum
(cap incl. septum P/N)

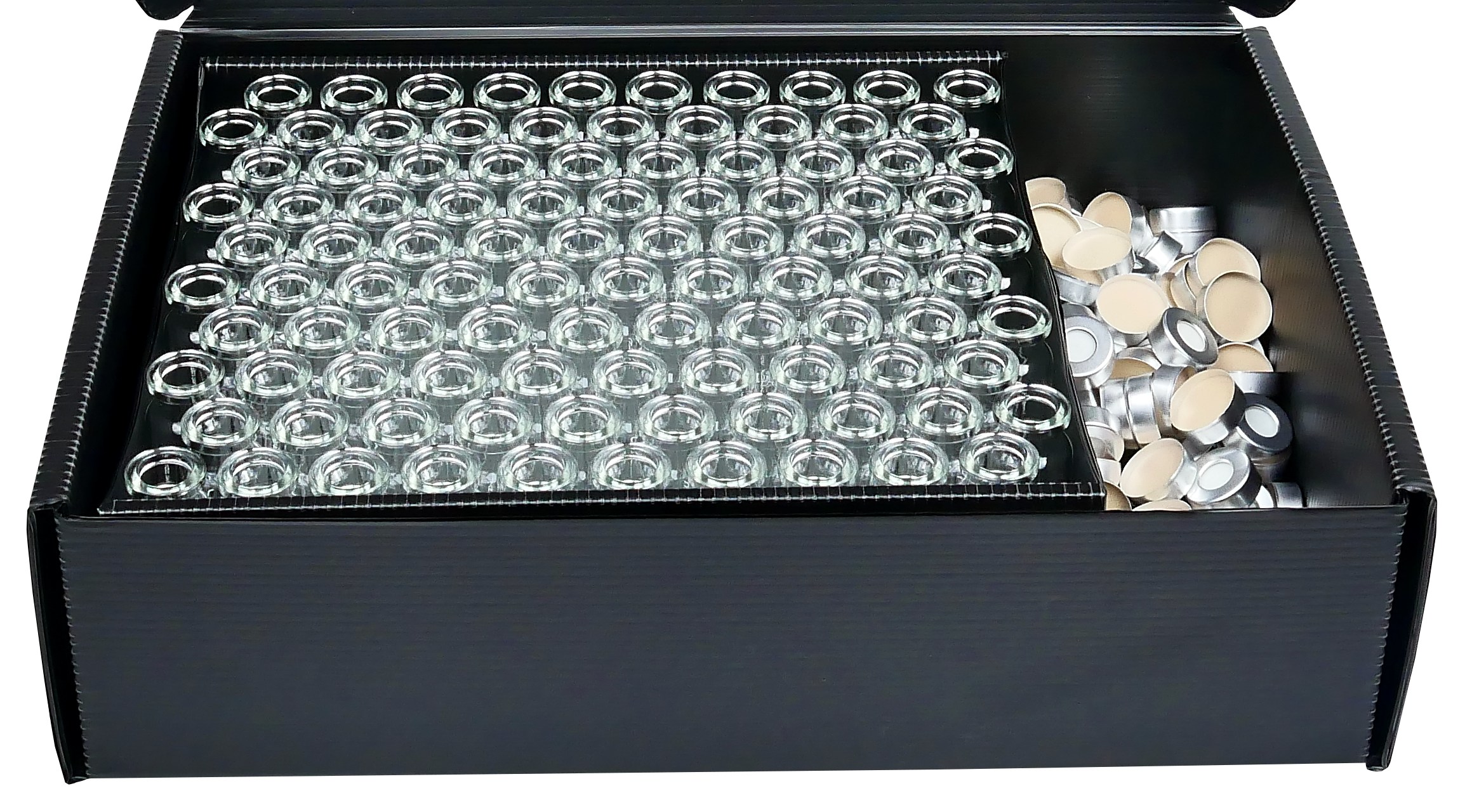

961-10010-12

20 ml glass, clear; 20 mm crimp neck; round bottom; 75.5 x 22.5 mm

961-10020-11
961-10020-11

alu cap 10 mm centre hole; silicone white/PTFE beige; 3.2 mm thick; 45° shore A

961-10030-04
961-10030-04
961-10010-29

plain aluminium cap 10 mm centre hole; silicone blue transparent/ PTFE white; UltraClean; 3.0 mm thick; 45° shore A

961-10030-22
961-10030-22
961-10010-31

magnetic bi-metal cap 8 mm centre hole; silicone blue /PTFE transparent; UltraClean; 3.0 mm thick; 45° shore A

961-10030-08
961-10030-08



Kits 10 ml

Content: 100 pcs. / pack
Including vials, caps and septum

Kit



Kits P/N Vial
(vial P/N)		 Cap incl. septum
(cap incl. septum P/N)

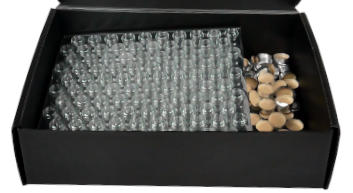

961-10010-11

10 ml glass, clear; 20 mm crimp neck; round bottom; 46.0 x 22.5 mm

961-10020-10
961-10020-10

alu cap 10 mm centre hole; silicone white/PTFE beige; 3.2 mm thick; 45° shore A

961-10030-04
961-10030-04
961-10010-28

plain aluminium cap 10 mm centre hole; silicone blue transparent/ PTFE white; UltraClean; 3.0 mm thick; 45° shore A

961-10030-22
961-10030-22
961-10010-30

magnetic bi-metal cap 8 mm centre hole; silicone blue /PTFE transparent; UltraClean; 3.0 mm thick; 45° shore A

961-10030-08
961-10030-08
