Headspace Screw Vials

Add Bookmark

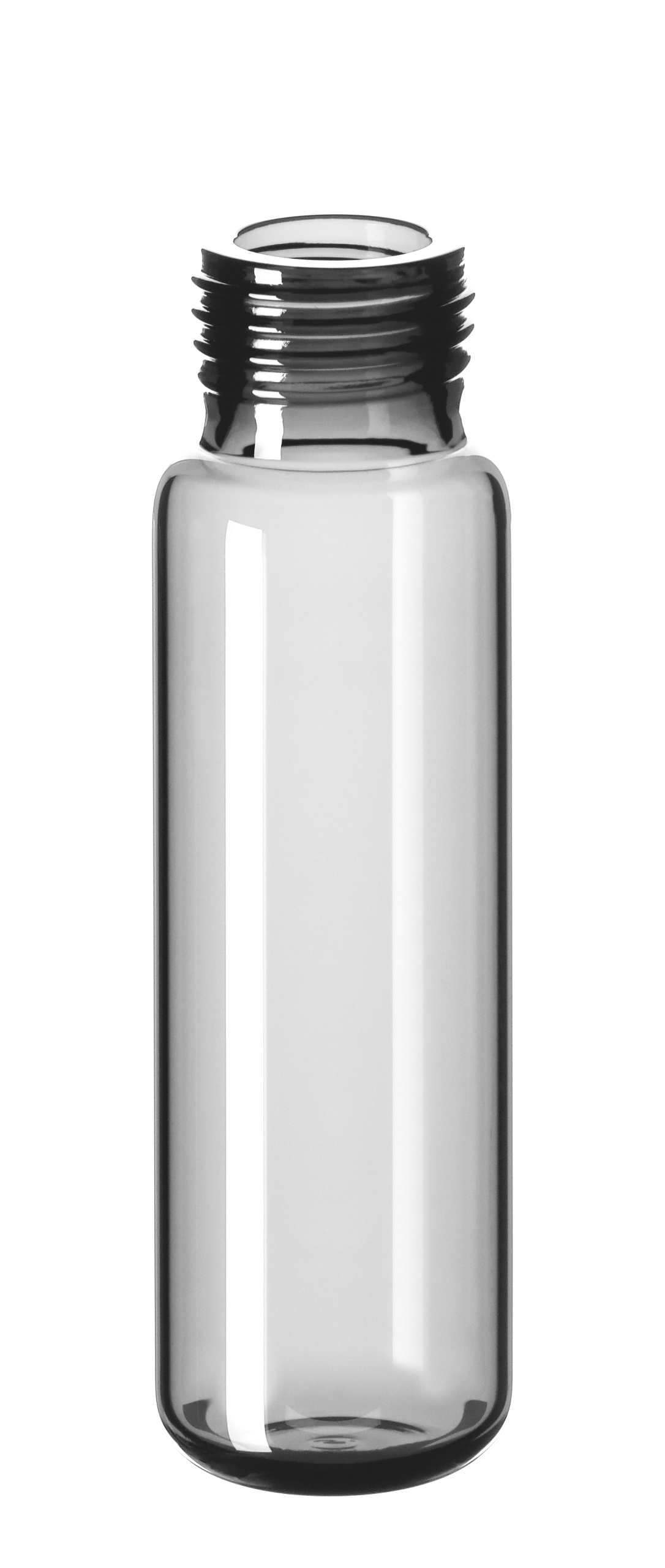

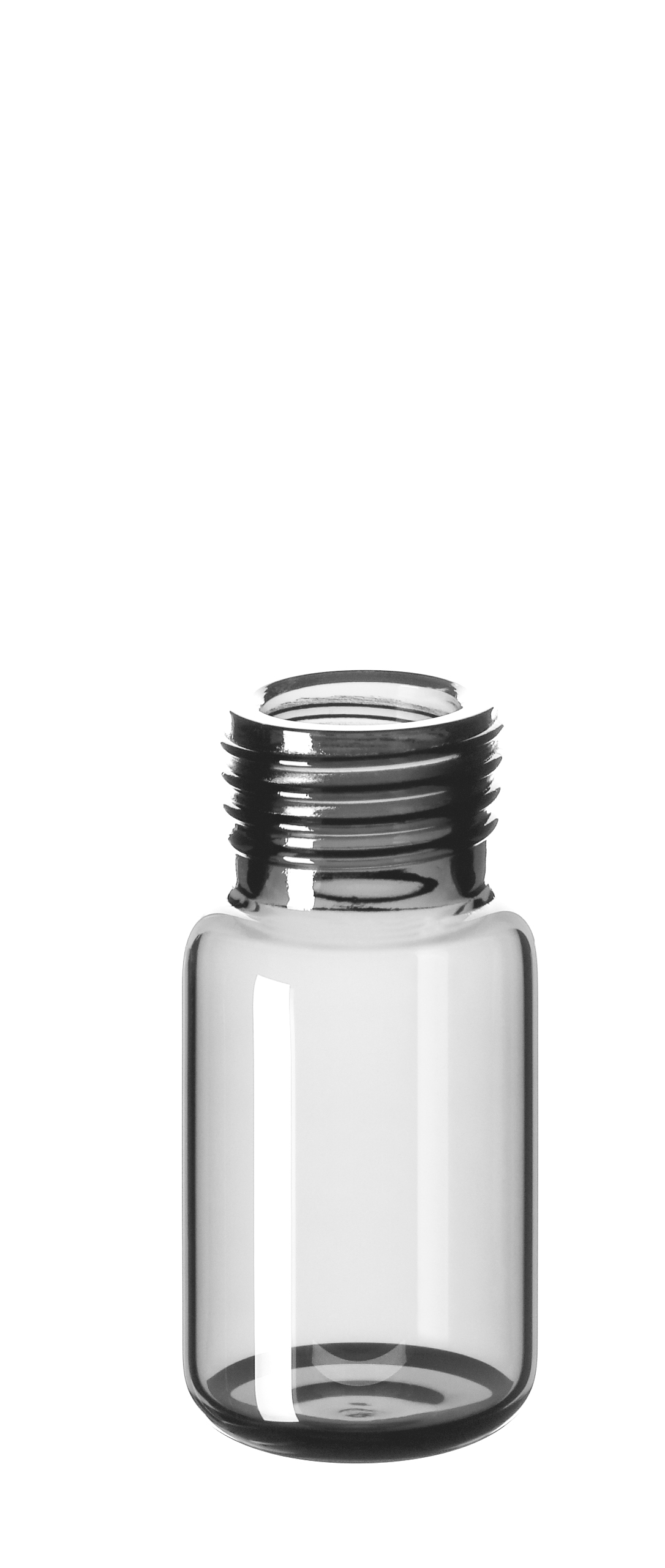

Glass Vials 10 ml and 20 ml Screw Neck

Content: 100 pcs. / pack


961-10020-06
961-10020-07
P/N 961-10020-06 961-10020-07
Volumen [ml] 10 20
Matreial, color glass, clear glass, clear
Neck precision thread precision thread
Head O.d. [mm] 18 18
Bottom round round
Dimension [mm] 46.0 x 22.5 75.5 x 22.5

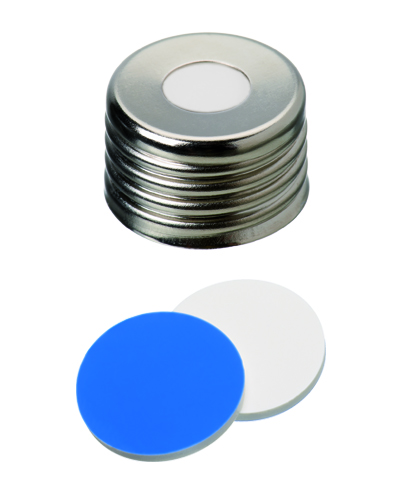

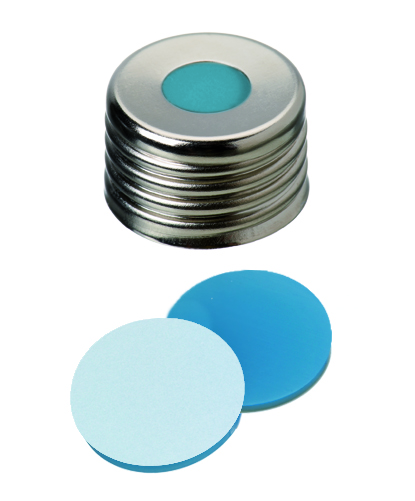

Headspace Screw Caps

Content: 100 pcs. / pack

961-10030-03
961-10030-19
961-10030-20
1 2 3*



    Cap Septum
Picture P/N Color Material Hole [mm] Thread [mm] Color Material Thickness [mm] Shore A
1 961-10030-03 silver magnetic 8 18 blue transparent / white

silicone / PTFE
UltraClean

 1.3 45°
2 961-10030-19 silver magnetic 8 18 white / blue silicone / PTFE
UltraClean		 1.5 55°
3* 961-10030-20 silver magnetic 8 18 white / blue* silicone / PTFE
UltraClean		 2.0 / 1.5 55°

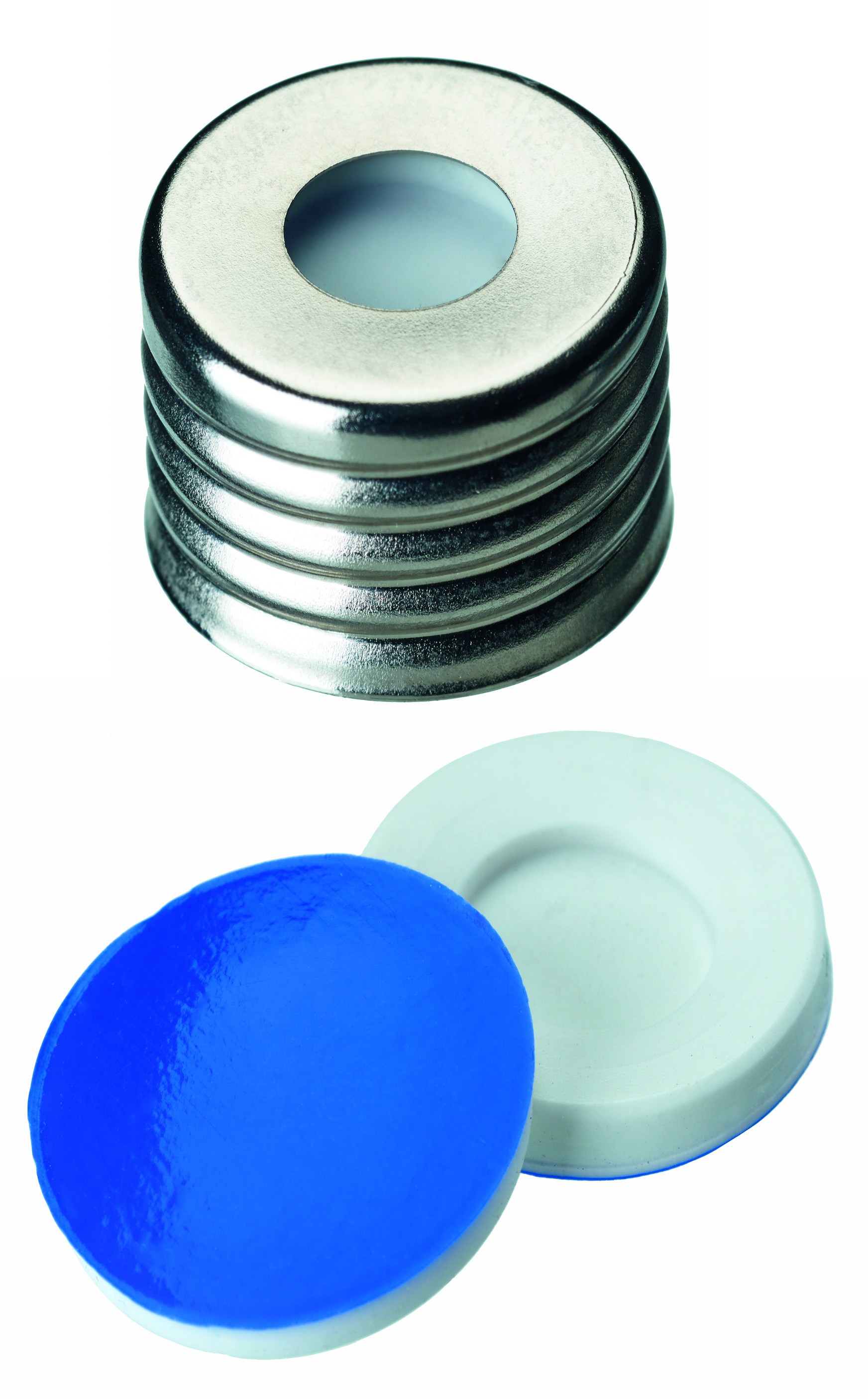

 * Cap for SPME applications, 2 mm septum thickness at the crimp border; thinned penetration area in the centre for easy penetration and excellent resealing

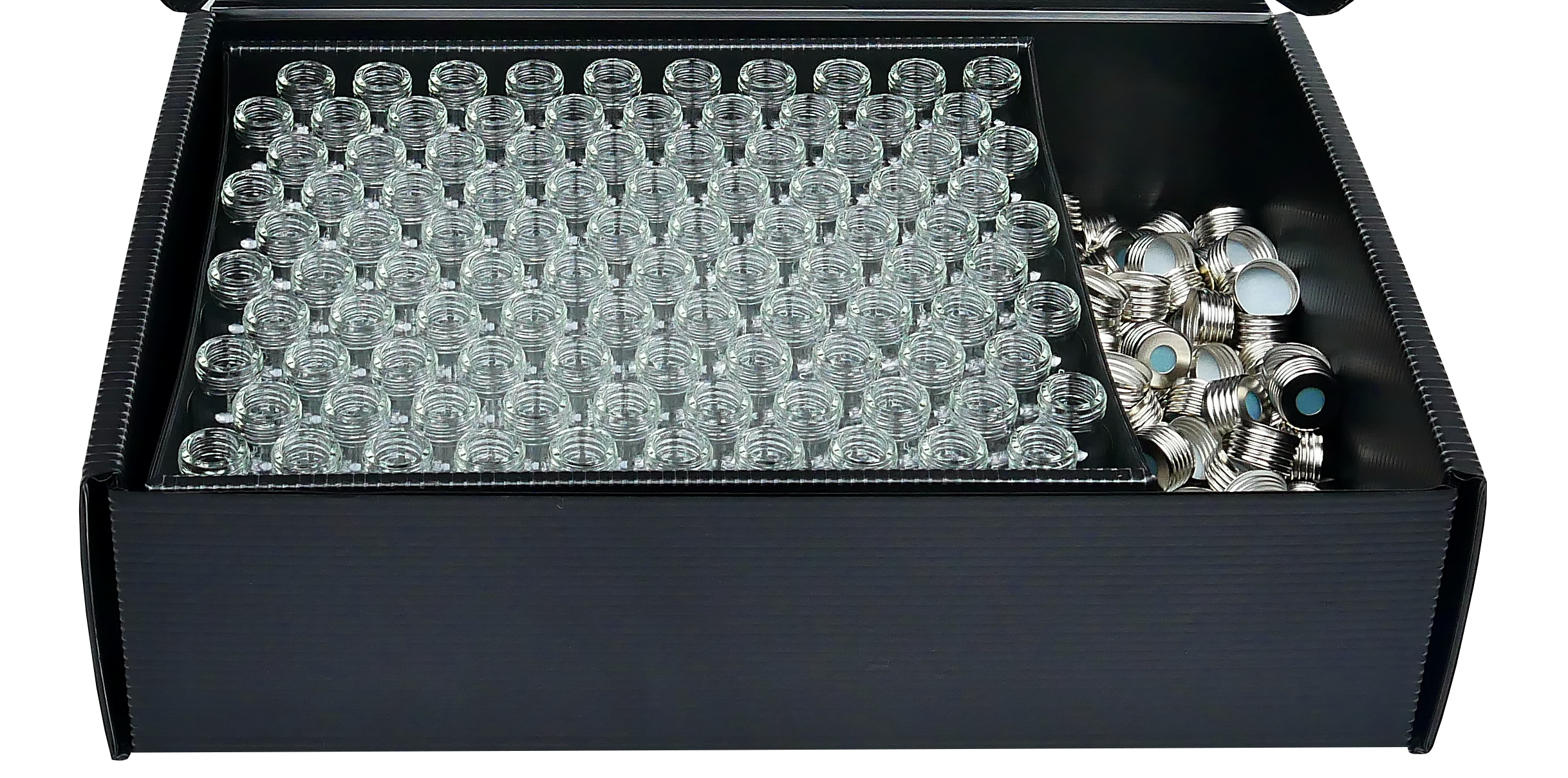

Kits 20 ml

Content: 100 pcs. / pack
Including vials, caps and septum

Kit 20 ml



Kits P/N Vial
(vial P/N)		 Cap incl. septum
(cap incl. septum P/N)
961-10010-08

20 ml glass, clear; 18 mm precision screw thread; round bottom; 75.50 x 22.5 mm

961-10020-07
961-10020-07

magnetic cap 8 mm centre hole; silicone blue transparent/PTFE white; UltraClean; 1.3 mm thick; 45° shore A

961-10030-03
961-10030-03
961-10010-27

magnetic cap 8 mm centre hole; silicone white /PTFE blue; UltraClean; 1.5 mm thick; 55° shore A

961-10030-19
961-10030-19

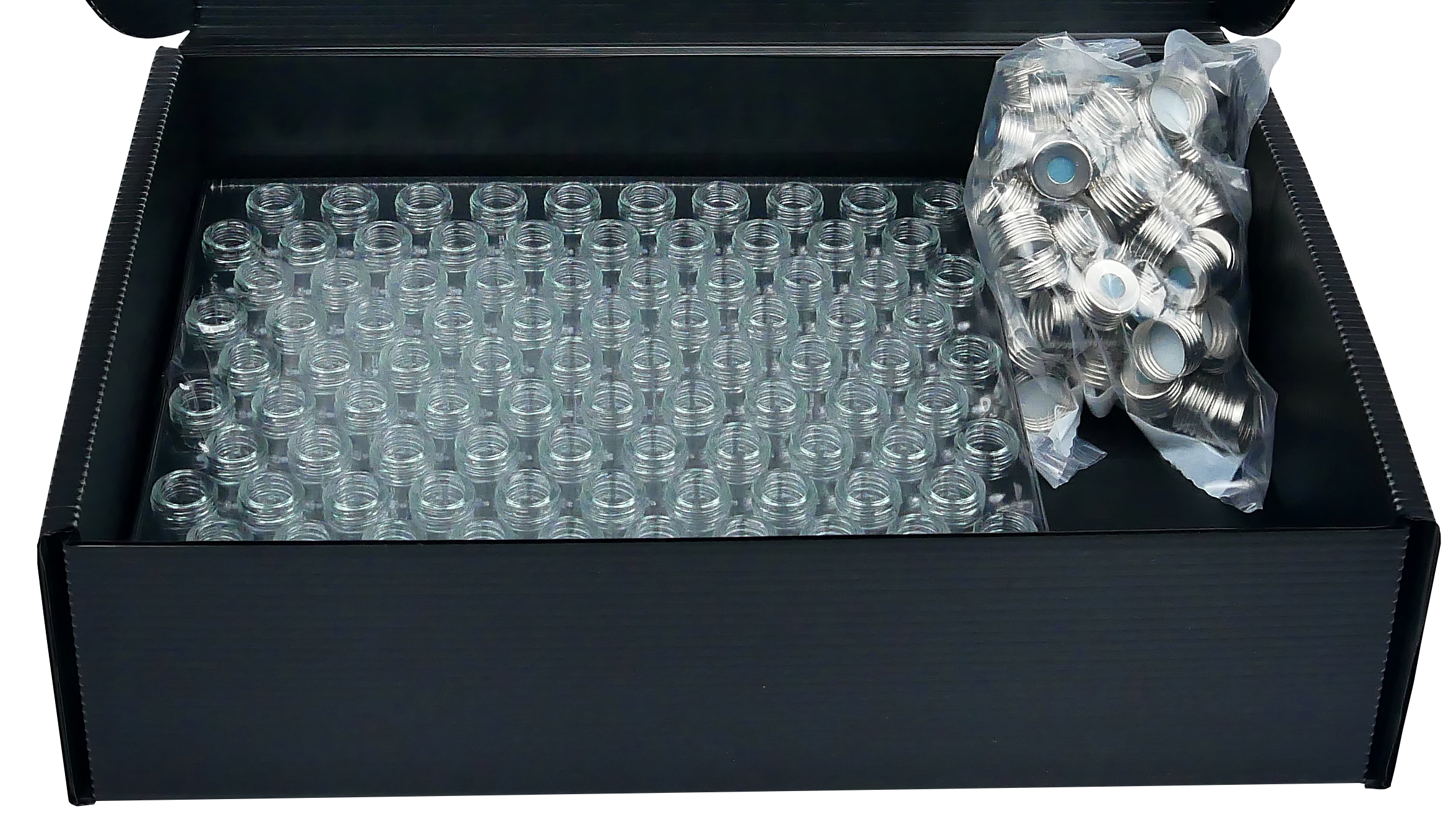

Kits 10 ml

Content: 100 pcs. / pack
Including vials, caps and septum

Kit 10 ml





Kits P/N Vial
(Vial P/N)		 Cap incl. septum
(cap incl. septum P/N)
961-10010-07

10 ml glass, clear; 18 mm precision screw thread; round bottom; 46.0 x 22.5 mm

961-10020-06
961-10020-06

magnetic cap 8 mm centre hole; silicone blue transparent/PTFE white; UltraClean; 1.3 mm thick; 45° shore A

961-10030-03
961-10030-03
961-10010-10

magnetic cap 8 mm centre hole; silicone white /PTFE blue; UltraClean; 1.5 mm thick; 55° shore A

961-10030-19
961-10030-19
