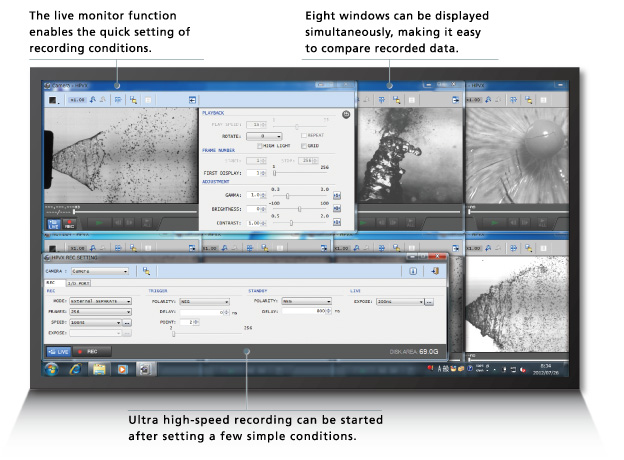

Windows Compatible Control Software

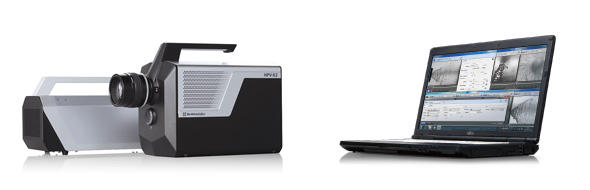

Windows compatible control software is provided. Just connect the camera and PC using a LAN cable and configure the simple settings to start recording at high speeds immediately. In addition to a special format, the recorded images can be saved in common formats such as AVI, BMP, JPEG, and TIFF.

The Camera Can Be Used in Combination with Commercially Available Image Analysis Software

  • High-speed phenomena can be subjected to image analysis and numerical analysis by saving the recorded images in a common format, and then loading them into commercially available image analysis software.
  • In particular, to obtain strain distributions for samples during material tests, commercially available strain distribution analysis software can be used, which operates on the principle of digital image correlation (DIC).

3-D strain analysis of CFRP thin plate

The deformation behavior of a CFRP thin plate colliding with a steel ball emitted by a gas gun at supersonic speed h as been captured by two high-speed cameras. By using 3D-DIC software, it is possible to analyze a temporal change of the strain distribution in the direction perpendicular to the thin plate. (Provided by the Tanabe Laboratory at Nagoya University)

For Research Use Only. Not for use in diagnostic procedures.
