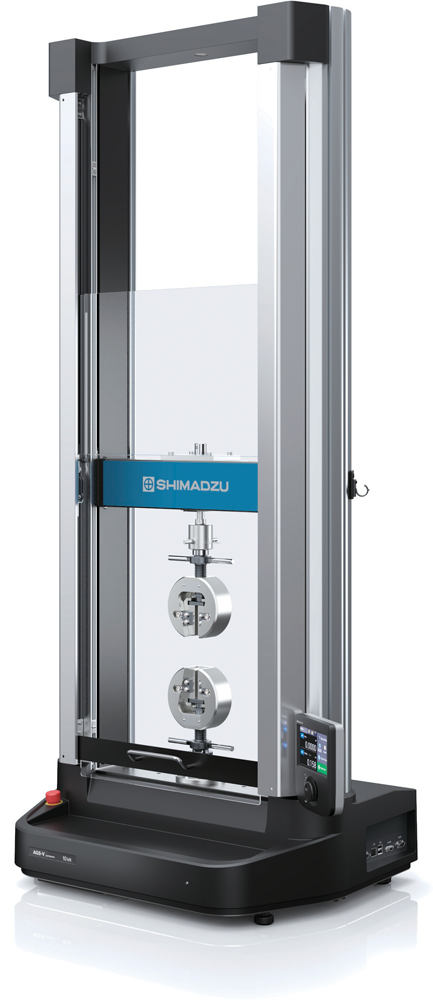

AUTOGRAPH AGS-V Series
Tabletop Precision Universal Testing Machines
Driving test efficiency forward
Shimadzu Corporation has been a leader in manufacturing testing machines for over 100 years, continuously evolving alongside our customers. With a strong commitment to innovation, we developed the new AUTOGRAPH AGS-V to empower testing professionals to work in a safer and more efficient manner. The AUTOGRAPH AGS-V makes material testing more efficient, reliable and convenient than ever before. With its best-in-class return speed and wide test speed range, it saves time in your daily operations and meets a broad spectrum of testing requirements. This universal tensile testing machine simply runs - putting your lab in pole position.
-

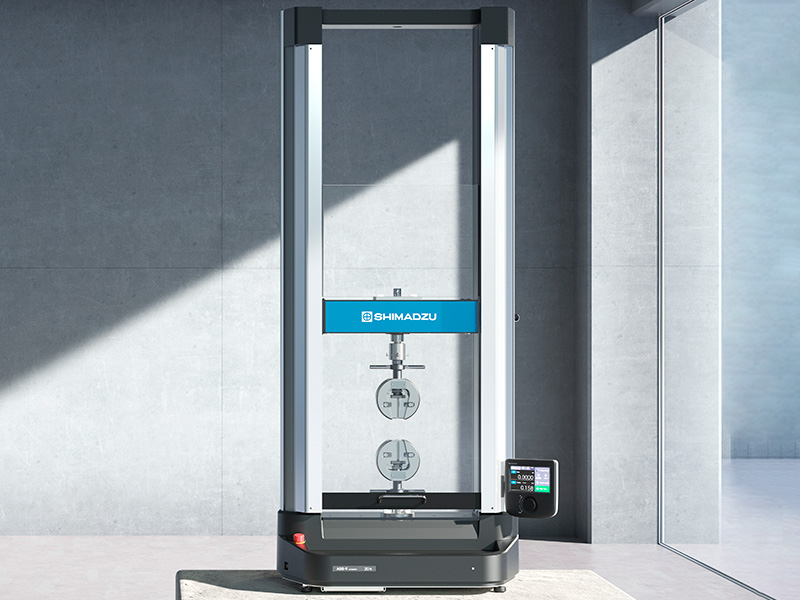

Discover the new Shimadzu AUTOGRAPH AGS-V
- High return speed & wide speed range
Accelerates test cycles and increases throughput, enabling performance under diverse conditions - Advanced data handling capabilities
Fast data acquisition with easy access for integration into external databases - User-friendly and ergonomic Design
Includinglike Automatic Jig Distance, so you don’t have to worry about positioning
The AUTOGRAPH AGS-V is always on the side of our customers. - High return speed & wide speed range
-
Align your test method with standards — talk to our team!
Watch: Short Expert Showcase — New AGS‑V at the K Fair
-
-
- Perform material testing up to 10 kN, including tensile, compression, bending, and cyclic tests
- Create fully customizable methods for flexible and tailored testing

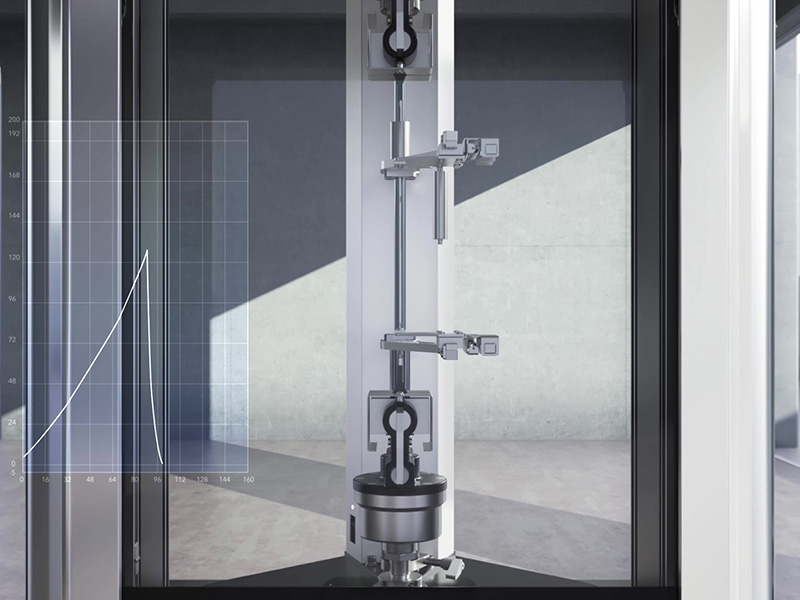

- Track specimen extension directly with an optical extensometer for precise measurements
- Benefit from fast testing/return speeds and easy specimen placement with Multi-Table for efficient workflows
AGS‑V: Explore by Topic
Boost Productivity with Enhanced Usability Features
Operation Controller
-
-
User-Friendly Interface

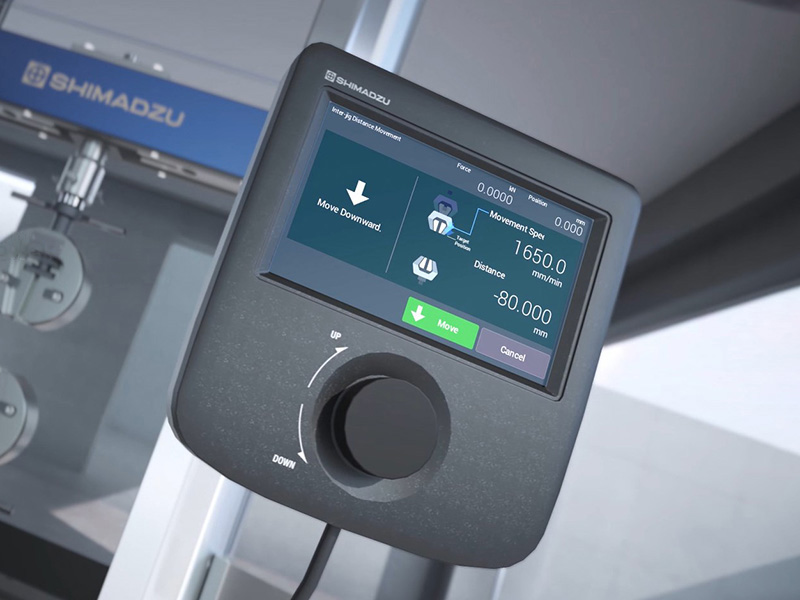

Equipped with a color liquid crystal touch panel that displays the most appropriate buttons and information in accordance with the situation. Various operations and information can be displayed, such as adjusting the distance between jigs before a test and checking measurement values during testing.
Machine Self-Diagnosis Function
Sensor amplifier calibration information, testing machine operation status, power supply voltage, communication status, etc., are constantly monitored. There is immediate notification in the event of a fault. Also, it is equipped with a function that checks the number of hours of instrument usage and the number of times the instrument has been used. When a prescribed value is reached, the operator is notified. This is useful for scheduling maintenance and contributes to greater uptime.
Selectable Displays
An easy-to-see format can be selected for the measurement value display details during a test. If measurement values are displayed over two lines, the measurement values can be checked visually, even from a distance.
Automation of the Test Force Electrical Calibration Function
Test force electrical calibration, which must be performed when starting the test machine, is performed automatically.
Stand-Alone Testing Function
Testing can be performed with the operational controller only, without using a computer.
-Tensile, compression, and bending test conditions can be configured directly from the touch panel.
-The measurement results are saved on a USB flash drive.
Note: Prepare the USB flash drive separately.
-
Voice Operation Is Supported * Sound can be muted.
Voice notification is played before crosshead operation, preventing operator errors.
Operation Sound Can Be Selected in Accordance with the Environment * Sound can be muted.
Autograph-specific operation sounds have been designed. You can choose between “pleasant sound for comfortable operation” and “sound that is easy to hear in noisy conditions.”
-
Multi-Table
Testing can be performed efficiently with minimal movement by using a multi-table where tools and samples used in testing can be placed.
Cutting Edge Specifications for a New Era of Testing Quality
-
High-Speed Data Sampling: 5 kHz
The high-speed sampling function has been enhanced from 1 ms to 0.2 ms. Rapid or minute changes can now be recorded.
-
-
Wide Range of Testing Speeds and High-Speed Crosshead Return
The test speed range is 0.0005 to 1500 mm/min, so tests can be performed under more test conditions. Also, the crosshead return speed has been increased to 1650 mm/min, which contributes to reducing customers’ test takt time.
-
Test Force Accuracy Guaranteed Range: 1/1000
The test force accuracy guaranteed range has been enlarged to 1/1000, which widens the data confidence interval. The test force rise portion also can be analyzed with confidence. Tests that required replacing multiple load cells depending on the test force can now be performed with fewer load cells, freeing the operator from the difficult replacement operation.
-
Expandability to Enable Various Measurements
By adding an optional board, measurements can be made using the Shimadzu strain gauge type extensometer. Also, both analog and digital signals can be input, enabling various types of measurements.
-
Optional Board
Operator-Friendly Design with Enhanced Safety
Protection Cover
-
Protects Operators from Debris
The protection cover is provided as standard on the front of the test space. Manufactured from high-durability polycarbonate, it blocks ruptured sample fragments and protects operators.
Unintended Operation Prevented with an Interlock
With the interlock function, test and return operations cannot be performed if the protection cover is open, reducing the risk of accidents.
Raising/Lowering Cover with Free Stop Function
The raising/lowering cover has a free stop function that allows it to be stopped at the desired position.
-

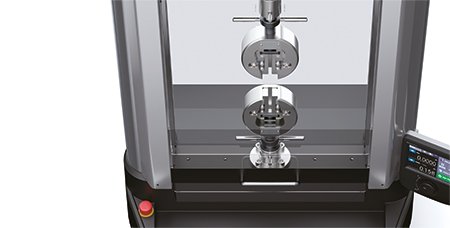

Intelligent Crosshead
-
Prevents Jig Impacts
The intelligent crosshead always recognizes its current position. If jigs get too close to each other due to an operational error, an impact warning is issued, and the crosshead is s topped automatically.
Contact Detection and Instantaneous Emergency Stop
The machine status is diligently monitored even when the crosshead is moved with the protection cover open, such as when adjusting the position of test jigs or attaching samples. If the machine detects test force changes due to contact with jigs or hands, the crosshead performs an emergency stop.
Overload Detection Function
If the machine detects a test force exceeding the load cell capacity, the crosshead stops automatically. This reduces the risk of load cell damage from overloads during jog operation and during testing. (Note that the possibility of damage cannot be completely eliminated.)
-
-
Stroke Limit Switch
Press, Set the Position, Release
A stroke limit switch, which sets the limits of crosshead movement, prevents crosshead and jig impacts. A spring mechanism inside the switch fixes the position when it is released, thereby preventing incorrect settings due to operational errors, such as forgetting to fix it.
Application Highlights
Discover the latest application notes that help you design, validate, and optimize your test methods.
-
Application Note
Evaluation of the Temperature Dependency of Tensile Strength of Electrode Materials for Lithium-Ion Batteries
-
Application Note
3D Printer Using Bayesian Optimization —Optimization of Molding Resin Strength and Molding Time
-
Application Note
Temperature Dependence of Puncture Strength of Separators
-
Application Note
Peel Test for Cathode Materials of Lithium-Ion Batteries in a Thermostatic Chamber
Explore more solutions for your analysis
Shimadzu offers a broad range of LC and SFC solutions in both analytical and preparative scale, with a variety of optical or MS detectors and suitable software solutions to meet customer requirements.
-
The AGX-V2 series is the culmination of the further evolution of the AUTOGRAPH based on our wealth of experience and achievements.
-
Compact and Slim Units Equipped With Enhanced Functions Make High-Efficiency Testing a Reality.
-
Offering high-level control and intuitive operation, the AGS-X2 series sets a new standard for strength evaluations while providing the utmost in safety considerations in a modern, stylish design.
-
Environmentally and operator friendly state-of-the-art universal testing machine.
Videos
-
Autograph AGS-V Series
Shimadzu Corporation started manufacturing testing machines more than 100 years ago. We have always advanced and grown together with our customers.
We created the new AUTOGRAPH from the desire that all those performing tests can perform their work in a safer, more efficient manner.
The AUTOGRAPH AGS-V is always on the side of our customers. -
The Procedure for Material Testing Using AGS-V
AGS-V is a user-friendly testing machine that allows anyone to easily and safely measure material strength.
-
Creation of Test Conditions by the Operation Controller
The AGS-V is equipped with a highly visible color LCD panel. Test conditions can be set smoothly by following the on-screen instructions. The interface is intuitive and user-friendly for anyone.
-
Elimination of Initial Load by Specimen Protection
The AGS-V is equipped with a specimen protection function on the handheld operation controller. During specimen mounting, the applied test force can be automatically released with a single touch. This allows anyone to easily obtain accurate data.
-
Intelligent Crosshead
The AGS-V is equipped with an intelligent crosshead function that combines convenience and safety. By simply entering values such as the distance between grips, the crosshead automatically moves to the precise position. It also stops automatically when the lower limit of the jig-to-jig distance is reached, preventing collisions and ensuring operator safety.
-
Multi-table
The AGS-V is equipped with a multi-table to enhance testing efficiency. The multi-table allows tools and specimens to be kept within easy reach. Its raised edges help prevent round objects from rolling off.
-
Safety Cover
The AGS-V can be equipped with an anti-scattering cover to enhance safety. It features a user-friendly vertical sliding mechanism for easy operation. An interlock system is included; if a test is initiated while the anti-scattering cover is open, an alert will be displayed to protect the operator.
