AUTOGRAPH AGS-V Series - Options

• Single Lite Software



This brings together all the necessary functions for tension, compression, and bending tests, and it is simple to use.

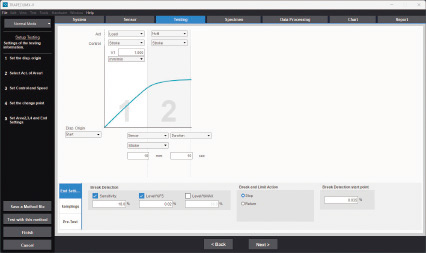

• Single Software



  This is used for common uniaxial tests. It can be used in tensile, compression, bending, and peeling tests.

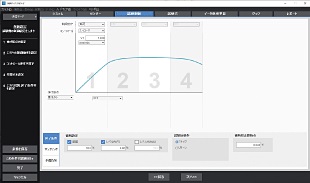

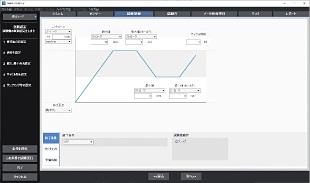

• Cycle Software



  Tests can be performed with repeated ups and downs, such as durability tests.

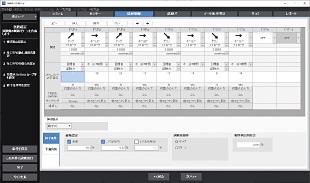

• Control Software



  This is software for creating your own test machine operating patterns.

• Texture Software

  This is software for measuring the properties of foods and pharmaceuticals.

• Spring Software

  This is dedicated software for measuring the properties of springs.

• Pneumatic Flat Grip

  By opening and closing the grip face by pneumatic pressure, this grip can hold the test specimen with one touch. This maintains a stable gripping force, even with soft samples whose thickness at the grip varies during the test.

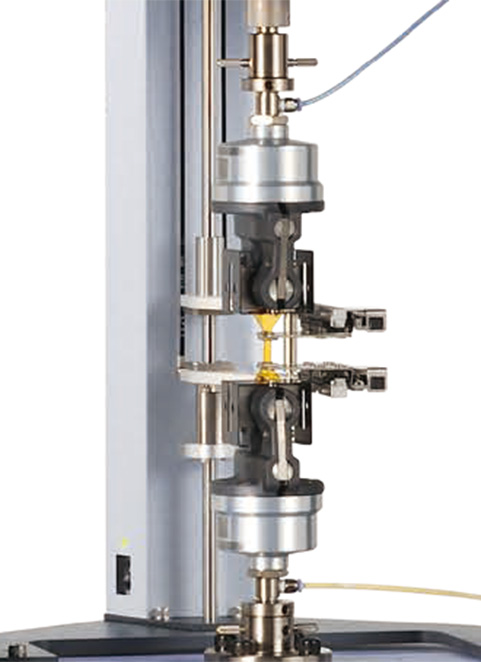

  DSES-1000 Long-Travel Extensometer for Soft Samples

  This is a long-travel extensometer that can measure displacement up to failure in tensile tests on soft materials such as rubber. The arms are clamped to the top and bottom gauge lines of the sample with one touch, and the top and bottom arms independently follow the extension of the sample.

•

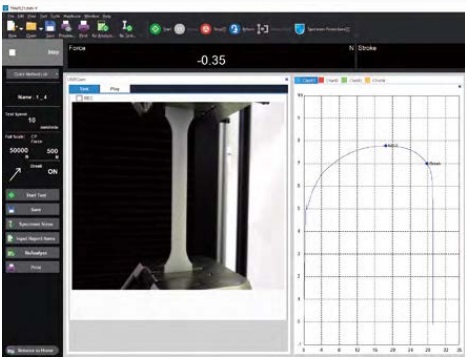

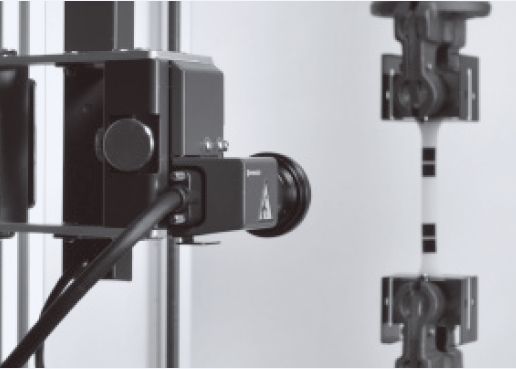

• TRViewX Non-Contact Video Extensometer

  This test device cannot be used with protection covers. This is a high-precision non-contact extensometer that measures the strain of a sample from images taken. It is compatible with samples on which a contact-type extensometer cannot be attached, ranging from general materials to films.

•

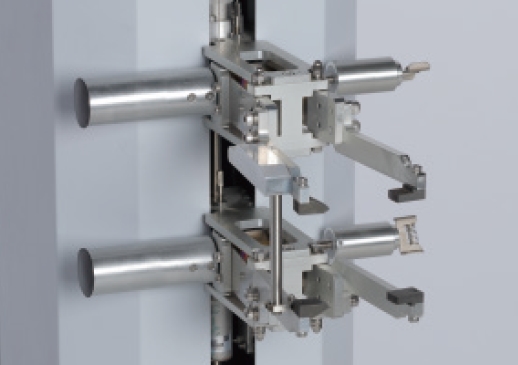

• SIE-560A/560SA Automatic Extensometer

  This extensometer has various automatic functions, such as automatic detection of the grip position and moving the extension measurement arms between the positions. When the test is completed, it can automatically detach from the sample and return to the initial position. This allows the operator to operate the testing machine as semi-automatic, leaving everything to the testing machine after the sample is attached. The lineup also includes a high-precision type with measurement accuracy of ±1 μm.

•

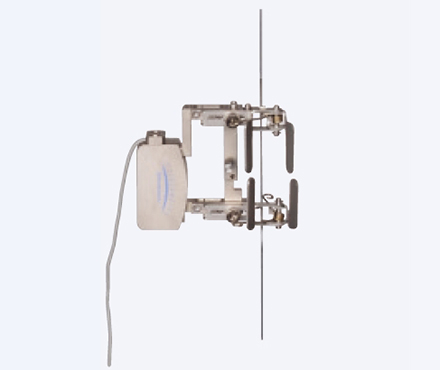

• SG Strain Gauge Type Extensometer

  This is widely used as a manual extensometer. Various products are available in accordance with different requirements, such as compliance with ISO, JIS, and ASTM standards, distance between gauge lines, and testing in high-temperature environments.

•

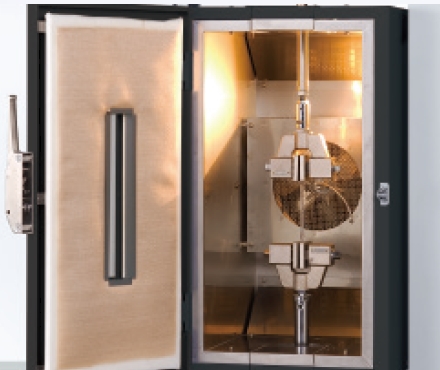

• Atmosphere Test Devices

  This test device cannot be used with safety covers. Various test devices are available for tensile, compression, and bending tests in　atmospheres other than room temperature, ranging from high temperatures to low temperatures.

•

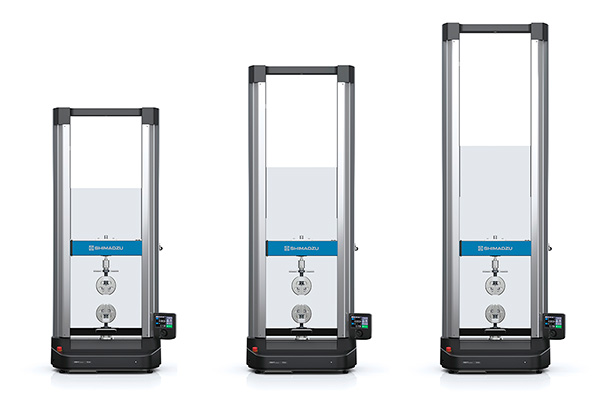

• Post Height Extension Specifications

  The overall height of the testing machine main unit can be extended, as can the testing stroke. As a result, tests to failure can be performed on rubber and plastics, which undergo large amounts of deformation. The lineup includes +250 mm extension and +500 mm extension.

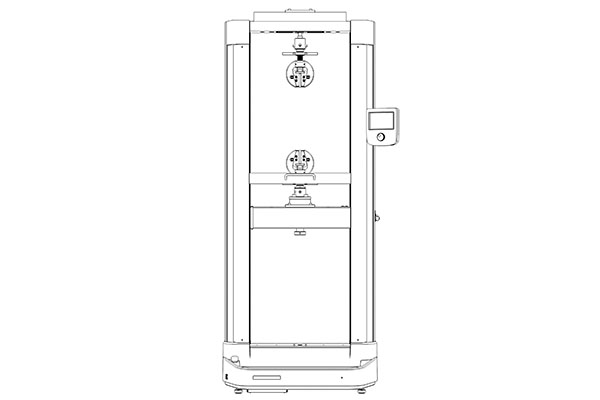

• Load-Resistant Yoke Specifications

  By strengthening the yoke at the top of the testing machine, tests can be performed in the space at the top of the testing machine. Tests can be easily performed with the operator standing. Also, because it is installed on the floor, it can be installed even if the height of the testing room is low.
