The new line of Shimadzu top-loading balances are engineered with the innovative UniBloc mechanism which brings superior impact resistance unrivaled quick response, excellent stability and durability at the same time. Powerful features support any imaginable weighing application. UW Series comes with motor-diven built-in calibration weight and fully-automatic calibration functions.



Automatic span calibration

Choice of fully-automatic calibrations: PSC and Clock -CAL

Operator can choose from two types of fully-automatic span calibration methods. "PSC" is initiated based on temperature change detection, and "Clock-CAL" operates at user pre-set times (up to three times a day).

Fully-automatic calibration Clock-CAL

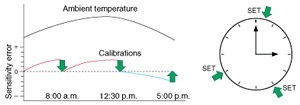

Image of Clock-CAL

Automatic calibration at user-preset times.

The balance automatically performs calibration at selected times, up to three times a day (e.g. before starting work, during lunch-break or after work).









Fully-automatic calibration PSC

Image of PSC



The balance detects variations in the ambient temperature that influence accuracy and automatically performs calibration to compensate it.



Data management

GLP/GMP/ISO calibration report



Calibration report can be automatically printed with the optional electronic printer. Date, time, serial number and ID are also output to meet GLP/GMP/ISO requirements.





















WindowsDirect function

The balance communicates directly to a PC with Windows® applications. No additional software is needed to interface with spreadsheets, databases, word processing, and laboratory software. WindowsDirect works with Windows® 95, 98, 2000, NT4.0, ME and XP. PC must be IBM PC/AT compatible.



Connection to Windows Vista and Windows7. (pdf/324KB)


Application support

Unit conversion

Weight value is presented in 22 units and modes, including percentage, carat, specific gravity, lb, oz, and so on. Users can choose any combination of units depending on their needs.

Piece counting function

Piece counting function is installed as standard.

Specific gravity measurement



Weigh below hook



Analog display modes

Analog Display



  • Full range


  • Bar graph clearly indicates the total weight (including the tare) as a portion of the balance capacity.

Analog Display





Select a target weight and tolerance. The display clearly indicates when they are reached.





  • Fill-in
Analog Display



  • Checkweighing


  • Set an upper and lower limit. The display continually indicates whether the sample is within the range "GO", over range "HI" or under range "LO". Choose one of the two bar graph display modes.

LCD with backlight

LCD with backlight can be read with ease and comfort in any location without brightness adjustment.
