Nexis GC-2030 - Options
Options for Expanding Your Productivity
Simultaneously Control Up to Three Injection Units and Four Detectors
Up to four types of injection units or six types of detectors can be selected depending on the purpose of analysis and target components. Four detectors can be controlled simultaneously using LabSolutions.
Note: The number of detectors installed depends on the type. The injection port can control up to two devices simultaneously.
Inlets
Split/Splitless Injector (SPL) |
- The carrier gas saver function reduces split gas consumption.
- Inactivation options
|
|---|---|
| Direct Injection Unit (WBI) | - Shares and simplifies the glass inserts for splitless analysis (patented). |
| On-Column Injection Unit (OCI) | - Supports analysis of high-boiling compounds (straight-chain hydrocarbons with 100 or more carbons) |
| Programmed Temperature Vaporization Injector (PTV) | - Uses an inert heat-resistant quartz insert. |
| Packed Column Injection Unit (SINJ) | - Glas s packed column and SUS packed column can be connected. |
Detectors
| Barrier Discharge Ionization Detector (BID) |
The barrier discharge ionization detector (BID-2030) is a universal detector that offers high-sensitivity analysis by using a low-frequency dielectric barrier discharge plasma for ionization. The BID generates helium (He) plasma by applying a high voltage to a quartz glass tube. The light energy from the He plasma then ionizes the target components and the ions are collected and output as peaks using a collection electrode. A wide variety of compounds other than He and neon (Ne) are detected with high sensitivity. |
|---|---|
| Flame Ionization Detector (FID) |
The jet and collector structure on the flame ionization detector (FID-2030) has been optimized to provide improved performance. Noise levels were also decreased by improving the stability of the signal processor and flow controller. This results in the world’s most sensitive FID*. |
| Sulfur Chemiluminescence Detector (SCD) |
SCDs are the most sensitive GC detectors for measuring sulfur components. The Nexis SCD-2030 is equipped with an ultra-short flow path and high efficiency redox cell, so it provides the world’s highest level* of sensitivity and stability. In addition, detector startup is automated, easing the burden on operators. |
| Thermal Conductivity Detector (TCD) |
- Enables more reliable analysis that is less easily affected by column oven temperature.
- Analysis for inorganic gases and high-concentration organic compounds.
|
| Flame Photometric Detector (FPD) |
- A novel optical system with a more advanced dual-focus system results in the world's highest* sensitivity.
- Analysis for organic phosphorus compounds and sulfur compounds.
|
| Electron Capture Detector (ECD) |
- High sensitivity and a wide dynamic range are achieved by adopting ECD cell structure and purge flowrate optimization, as well as highly durable materials.
- Analysis for electrophilic compounds.
|
| Flame Thermionic Detector (FTD) |
- An improved collector reduces the negative peaks from impurity components.
- Collectors can be replaced without tools.
- Analysis for organic nitrogen compounds and organic phosphorus compounds.
|
*As of July 2021, according to a Shimadzu survey
Labsolutions Series
Related Information

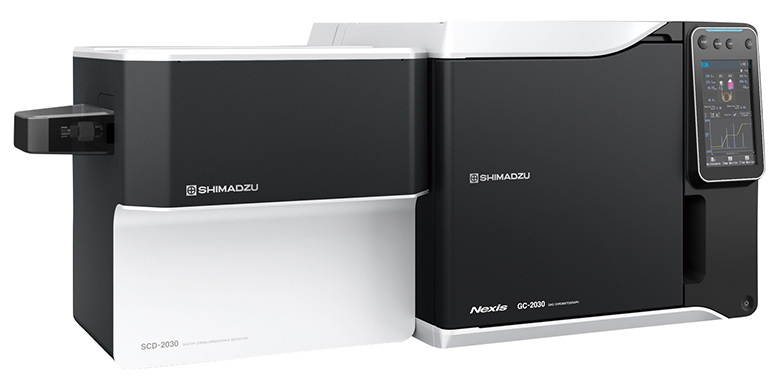

Nexis SCD-2030
The Nexis™ SCD-2030 is a next-generation sulfur chemiluminescence detection system.
The dramatically enhanced sensitivity and reliability, the excellent maintainability, and the automation functions will improve laboratory productivity.
Trace Sulfur Analysis
Some sulfur compounds are known to be not only hazardous but also catalytic poisons.

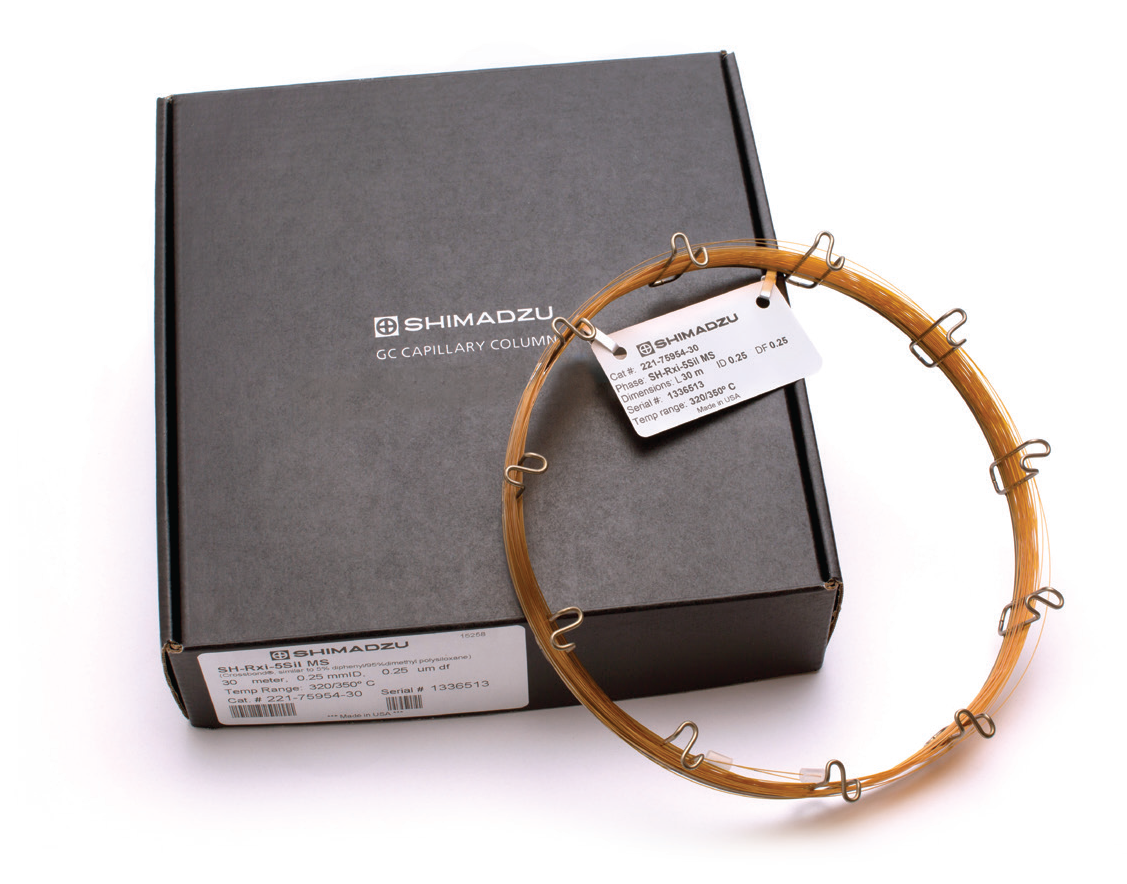

SH Series GC Columns
Shimadzu supply fused silica, PLOT and metal GC columns which have a wide variety of both general-purpose and application-specific ones.
GC Consumables
GC Consumables are designed to complement your Shimadzu GC Systems.
Distillation Gas Chromatograph System
The Shimadzu simulated distillation system, consisting of a Nexis GC-2030 high-performance capillary gas chromatograph and LabSolutions simulated distillation GC analysis software, meets all applicable ASTM, ISO, EN, and JIS standards.

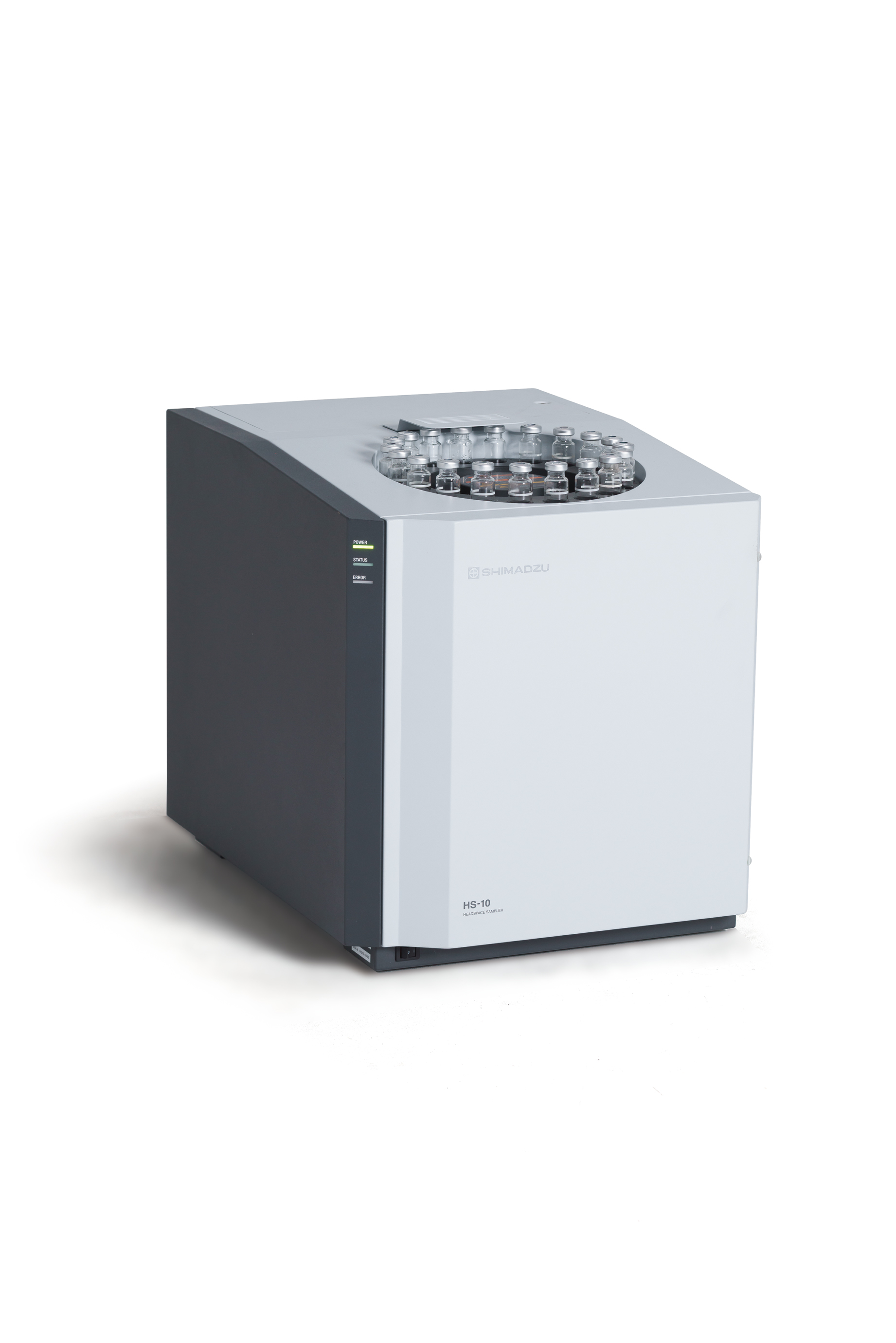

HS-10
The HS-10 headspace sampler is highly cost efficient, yet is equipped with advanced features such as a mixing function and the ability to heat-ahead the sample vials waiting for analysis.

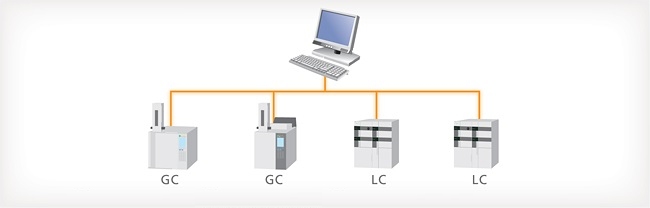

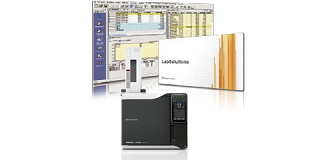

LabSolutions LCGC
